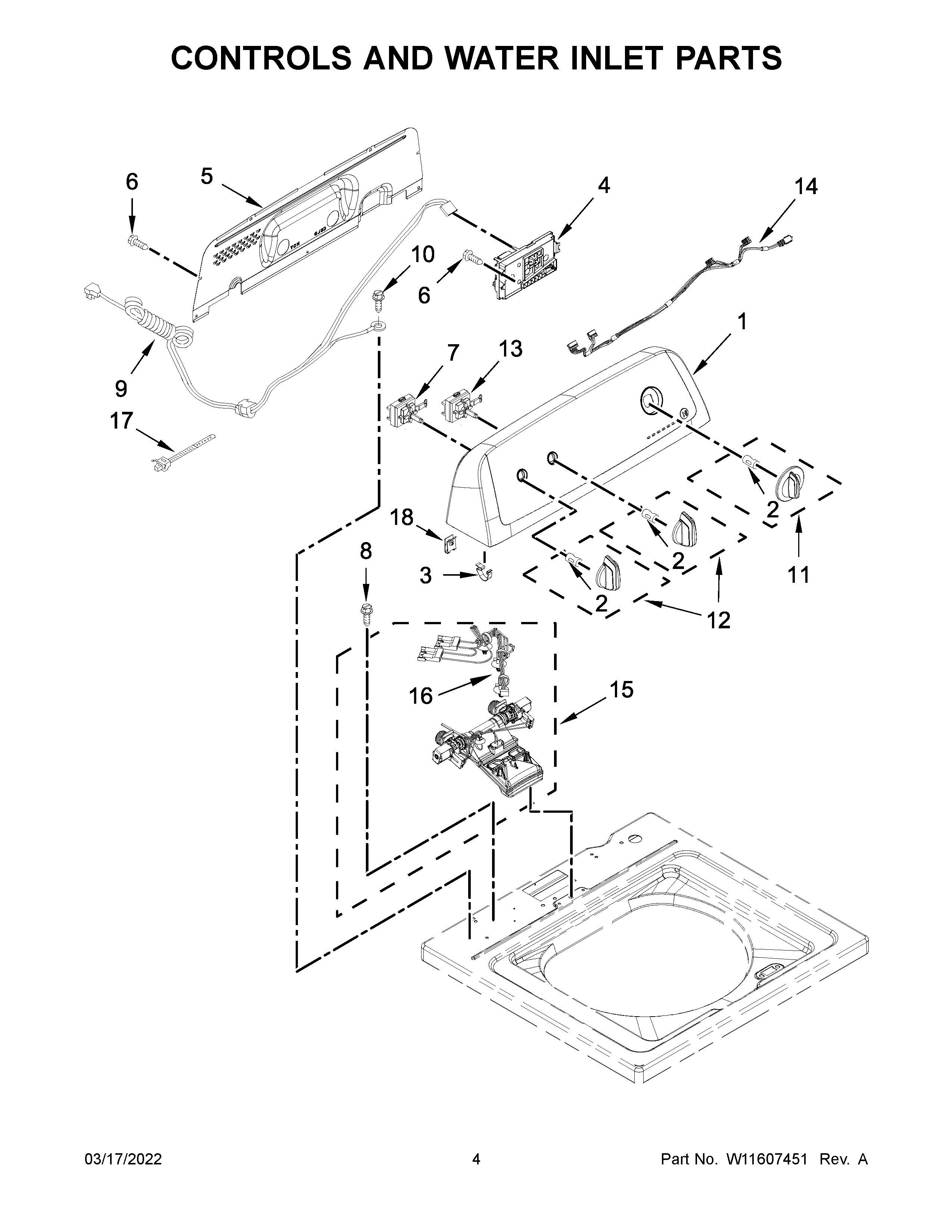

VAW3584GW2 03 – CONTROLS AND WATER INLET PARTS

VAW3584GW2 03 – CONTROLS AND WATER INLET PARTS

Written by

in

VAW3584GW2 03 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
1W11089544 Whirlpool Console Assembly
2WP8536939 Whirlpool Spring Clip
3WP8312709 Whirlpool Endcap Clip
4W11603811-includeCORE Whirlpool W11603811 Washer Electronic Control Board + Core
5W10409320 Whirlpool Rear Panel
6W11685943 Whirlpool Screw
7WPW10414398 Whirlpool Cycle Switch
8WPW10213953 Whirlpool Screw
9W10850133 Whirlpool Power Cord
10W10846509 Whirlpool Screw
11WPW10711289 Whirlpool Washer Control Knob Dryer
12WPW10453947 Whirlpool Knob
13W10859568 Whirlpool Cycle Switch
14W11256701 Whirlpool Wire Harness
15VALVE-WATER INLET WASHER
16W10868094 Whirlpool Wire Harness
17W10339680 Whirlpool Wire Tie
18W11213336 Whirlpool Nut
