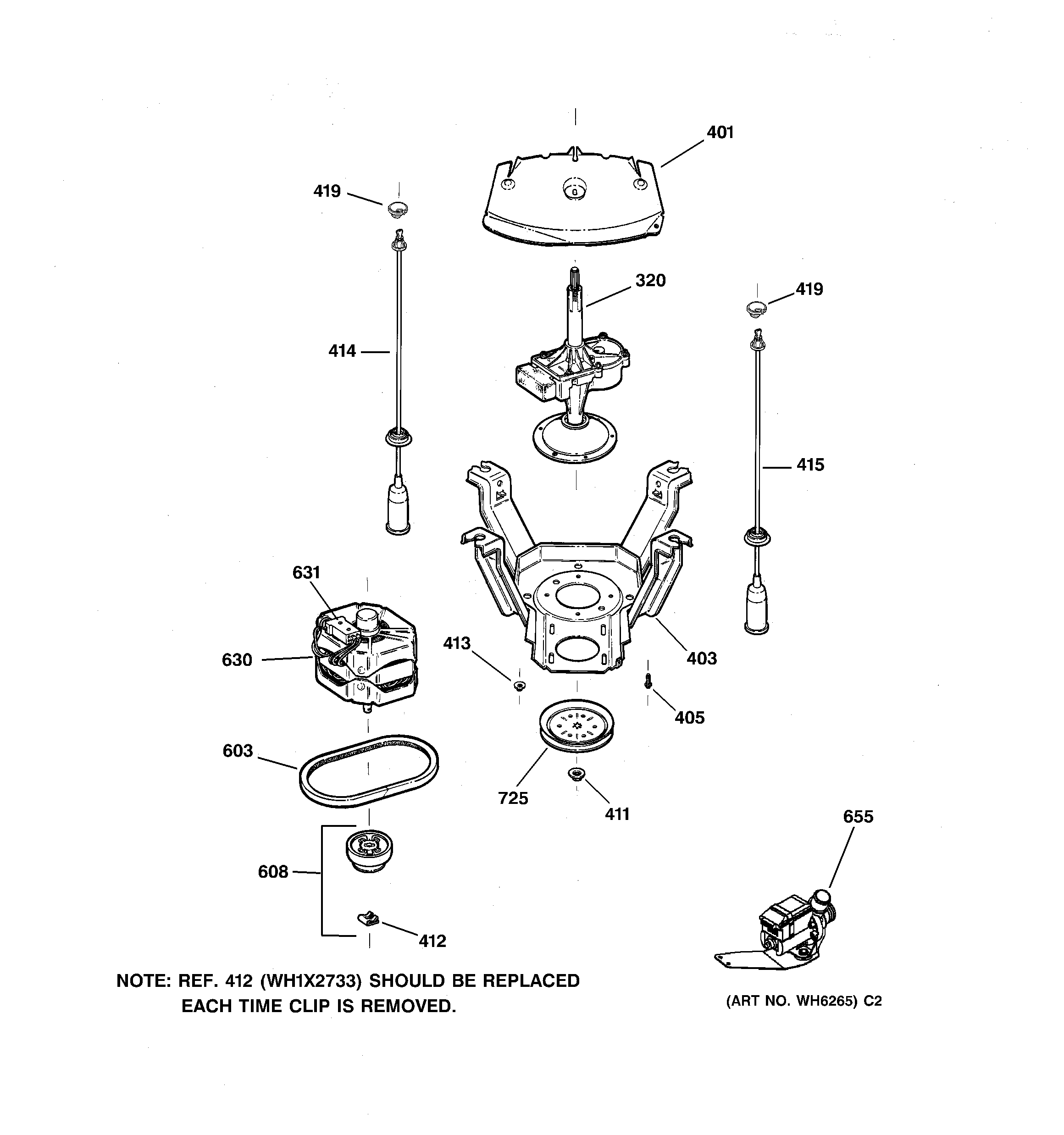

VBXR1090D4WW SUSPENSION, PUMP & DRIVE COMPONENTS

Products

Position	Product
320	GEN WH38X10002
401	WH45X10046 GE Tub Shield
403	GEN WH17X10003
405	WH2X1201 GE 1/4-20 Screw
411	WH2X1203 GE Pulley Nut
412	GEN WH01X2733
413	GEN WH02X1204
414	ROD/SPRING BLK
415	WH16X543 GE Dryer Suspension Rod and Spring Yellow
419	WH01X10001 GE Washer Support Socket Tub Suspension Rod
603	WH1X2026 GE Washer Drive Belt
608	GEN WH05X0253
630	GEN WH20X10012
631	GEN WH12X1068
655	WH23X10030 GE Washer Drain Pump
725	GEN WH07X0126
