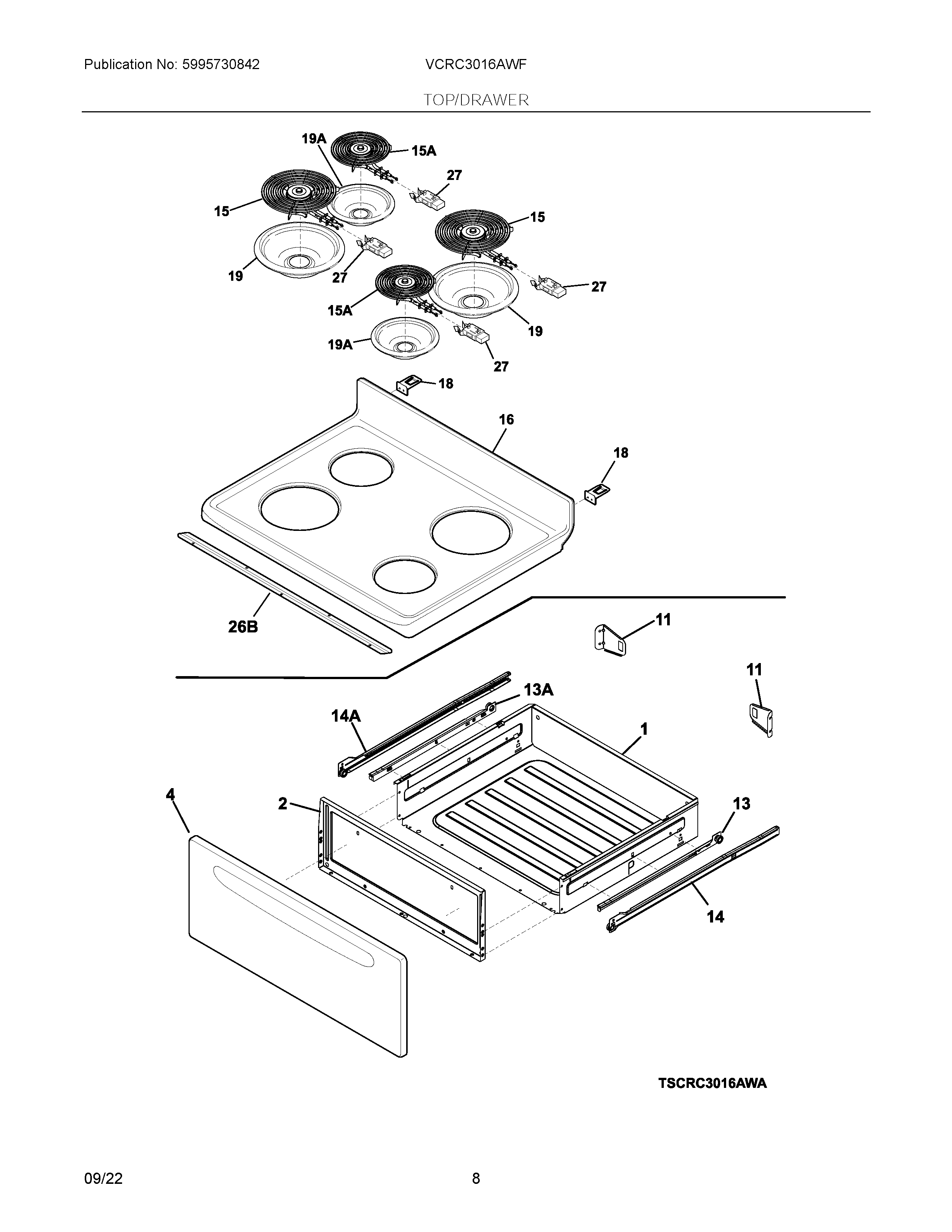

VCRC3016AWF 04 – TOP/DRAWER

VCRC3016AWF 04 – TOP/DRAWER

Written by

in

VCRC3016AWF 04 – TOP/DRAWER

Products

PositionProduct
NI5303285179 Frigidaire Oven Door Screw
NIClip,wiring harness ,green ,main top
NI5308014215 Frigidaire Oven Screw
NI316001017 Frigidaire Screw
NI316418900 Frigidaire Oven Screw
NI316089500 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
NI316021105 Frigidaire Oven Screw
NI316021132 Frigidaire Screw
1316408706 Frigidaire Oven Drawer Assembly
25304527989 Frigidaire Liner
45304511973 Frigidaire Oven Panel
115304517906 Frigidaire Oven Bracket
13A5304517903 Frigidaire Oven Glide Drawer
135304517905 Frigidaire Oven Inner Right Hand Drawer Glide (Black)
145304517904 Frigidaire Oven Outer Right Hand Drawer Glide (Black)
14A5304517902 Frigidaire Oven Glide Drawer
155304516159 Frigidaire Oven Range Limiter Element 8"
15A5304516160 Frigidaire Oven 6" Burner Safety Element/Coil
16MAIN TOP, WHITE, W/BRKT
18316580800 Frigidaire Hinge Bracket
19AA316222201 Frigidaire Oven Drip Bowl Assembly
19A316222301 Frigidaire Oven 8" Porcelain Drip Bowl Range
26B316607600 Frigidaire Bracket
27HARNESS, SURFACE
695303288565 Frigidaire Screw
