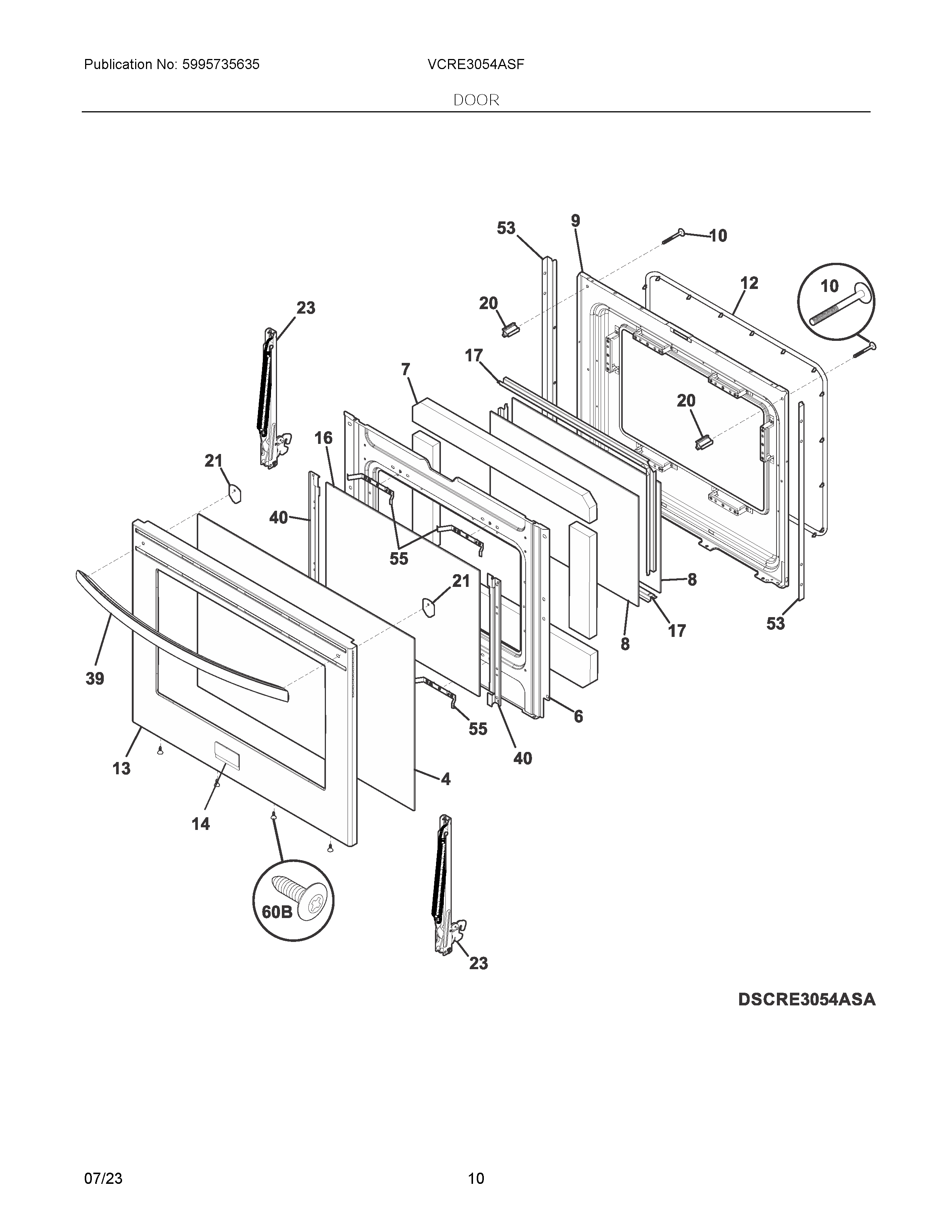

VCRE3054ASF 05 – DOOR

Products

Position	Product
NI	5303285179 Frigidaire Oven Door Screw
NIA	ANCHOR, NAMEPLATE
NI	316483101 Frigidaire LABEL
NIA	316418900 Frigidaire Oven Screw
NI	316021105 Frigidaire Oven Screw
4	316452758 Frigidaire Oven Outer Door Glass
6	316406328 Frigidaire Shield
7	316405600 Frigidaire Insulation
8	5304503232 Frigidaire Oven Inner Door Glass
9	316423719 Frigidaire Liner
10	Screw,handle mtg. ,10-24 x 1.75“ ,(2)
12	5304498835 Frigidaire Oven Seal
13	DOOR ASSEMBLY, OUTER, STAINLESS, W/ANCHOR
14	NAMEPLATE
16	316552801 Frigidaire Oven Glass
17	5304504811 Frigidaire Glass Spacer
20	316284100 Frigidaire Oven Spacer Assembly
21	316533801 Frigidaire Oven Plate
23	316575956 Frigidaire Hinge
39	HANDLE-DOOR SS 30IN
40	316552401 Frigidaire Oven Bracket
53	5304532042 Frigidaire Shield-Filler Door
55	316408300 Frigidaire Oven Bracket
60B	316021109 Frigidaire Oven Screw
