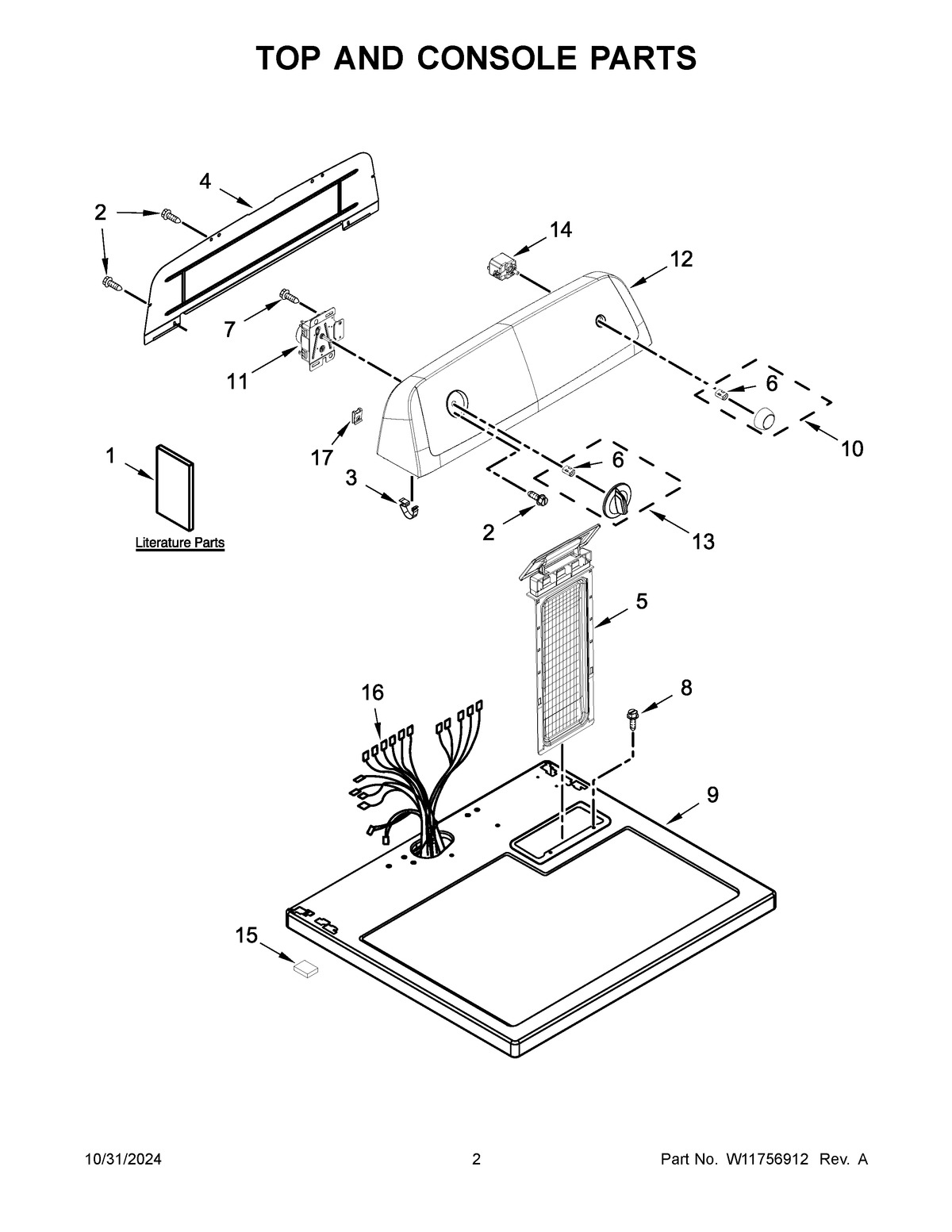

VDEW6511RW0 02 – TOP AND CONSOLE PARTS

VDEW6511RW0 02 – TOP AND CONSOLE PARTS

Written by

in

VDEW6511RW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1AQUICK START GUIDE
1OWNERS MANUAL
1BTECH SHEET
2WP693995 Whirlpool Screw
3WP8312709 Whirlpool Endcap Clip
4WPW10416486 Whirlpool Rear Panel
5W11607443 Whirlpool Dryer Screen
6WP8536939 Whirlpool Spring Clip
7WP90767 Whirlpool Screw
8W11693756 Whirlpool Screw Assembly
9WP8563663 Whirlpool Top Assembly
10WPW10453948 Whirlpool Knob
11W10857612 Whirlpool Dryer Timer
12CONSOLE
13WPW10711289 Whirlpool Washer Control Knob Dryer
14WPW10420741 Whirlpool Dryer Start Switch
153389682 Whirlpool Spacer
16WPW10450286 Whirlpool Wire Harness
17W11213336 Whirlpool Nut
