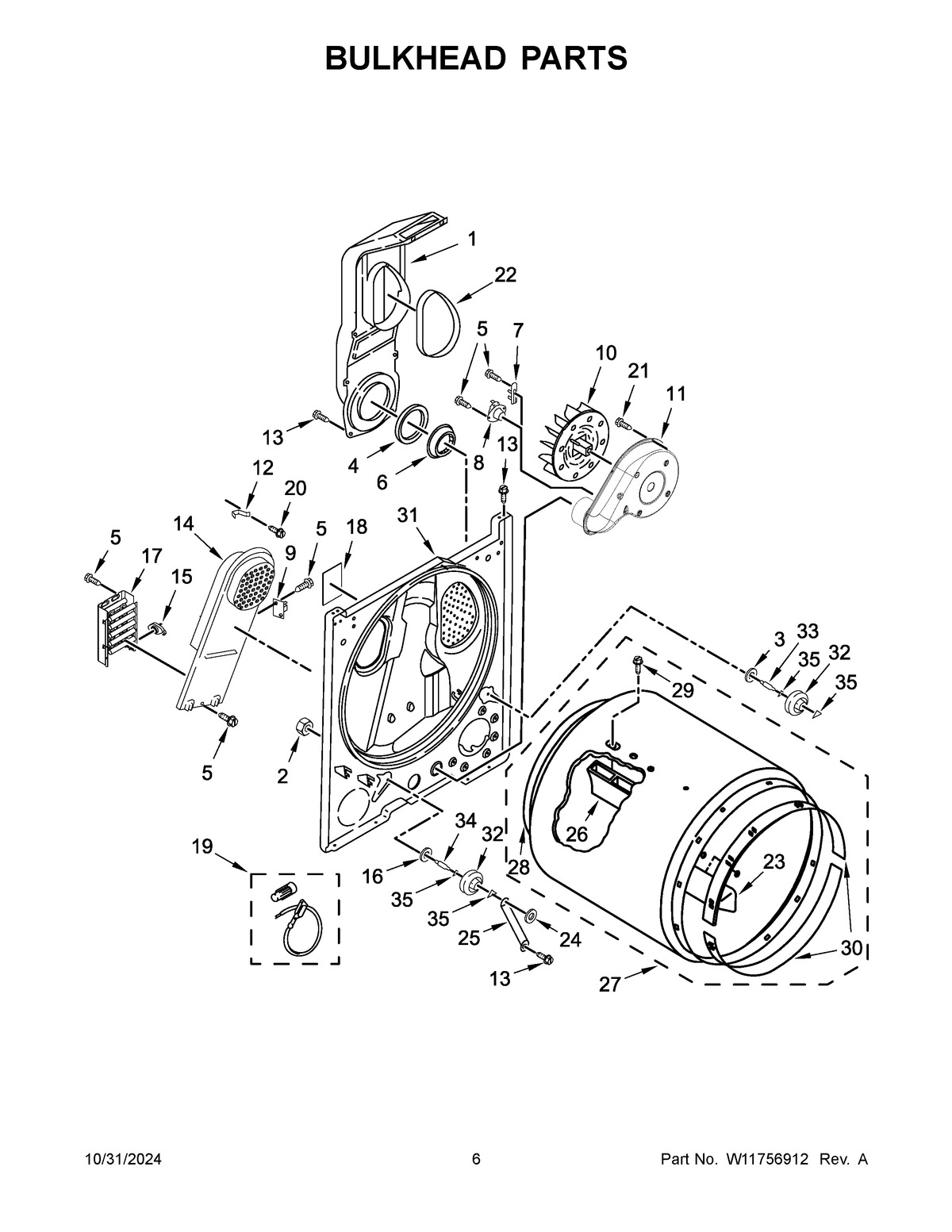

VDEW6511RW0 04 – BULKHEAD PARTS

Products

Position	Product
1	W11117429 Whirlpool Chute Assembly
2	W11229607 Whirlpool Nut
3	WP3388703 Whirlpool Washer
4	W11415783 Whirlpool Seal
5	WP90767 Whirlpool Screw
6	W11233063 Whirlpool Shield Assembly
7	WP3392519 Whirlpool Dryer Thermal Fuse
8	WP3387134 Whirlpool Dryer Cycling Thermostat
9	W10900067 Whirlpool Dryer Cut-Off Timer
10	WP694089 Whirlpool Dryer Blower Wheel
11	WP8577230 Whirlpool Housing
12	279771 Whirlpool Clip
13	SCREW
14	W11676909 Whirlpool Dryer Box
15	WP3977767 Whirlpoo Dryer High Limit Thermostat
16	WP348197 Whirlpool Washer Assembly
17	279838 Whirlpool Dryer Heating Element 5400W
18	W11409002 Whirlpool Pad
19	279457 Whirlpool Dryer Heating Element Wide Spade Connection
20	WP489463 Whirlpool Refrigerator Screw
21	WP488729 Whirlpool Refrigerator Door Screw
22	SEAL
23	WP3403636 Whirlpool Drum Baffle
24	WP90296 Whirlpool Clip
25	W11684613 Whirlpool Bracket
26	BAFFLE-DRM
27	W10899578 Whirlpool Dryer Drum Assembly
28	W10612022 Whirlpool Felt Seal
29	W10853898 Whirlpool Screw
30	279441 Whirlpool Front Bearing Ring
31	W11178667 Whirlpool Bulkhead Assembly
32	349241T Whirlpool Dryer Drum Support Roller Kit
33	SHAFT SUPPORT ROLLER DRYER
34	SHAFT SUPPORT ROLLER DRYER
35	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
