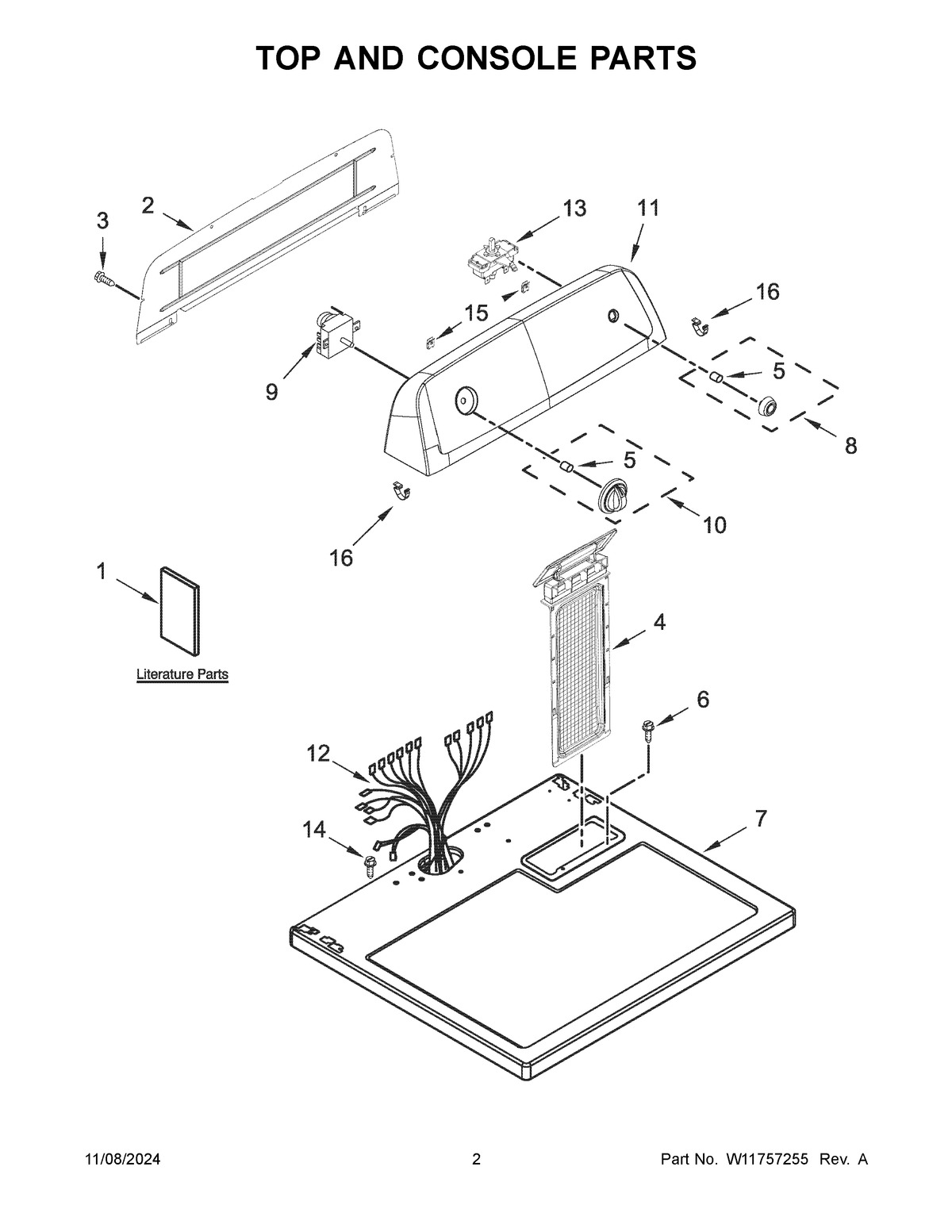

VDGW6511RW0 02 – TOP AND CONSOLE PARTS

VDGW6511RW0 02 – TOP AND CONSOLE PARTS

Written by

in

VDGW6511RW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1BTECH SHEET
1AQUICK START GUIDE
1OWNERS MANUAL
2WPW10416486 Whirlpool Rear Panel
3WP693995 Whirlpool Screw
4W11607443 Whirlpool Dryer Screen
5WP8536939 Whirlpool Spring Clip
6W11693756 Whirlpool Screw Assembly
7WP8563663 Whirlpool Top Assembly
8WPW10453948 Whirlpool Knob
9W10857611 Whirlpool Timer
10WPW10711289 Whirlpool Washer Control Knob Dryer
11CONSOLE
12W10865760 Whirlpool Wire Harness Assembly
13WPW10420741 Whirlpool Dryer Start Switch
14W10850756 Whirlpool Screw
15W11213336 Whirlpool Nut
16WP8312709 Whirlpool Endcap Clip
