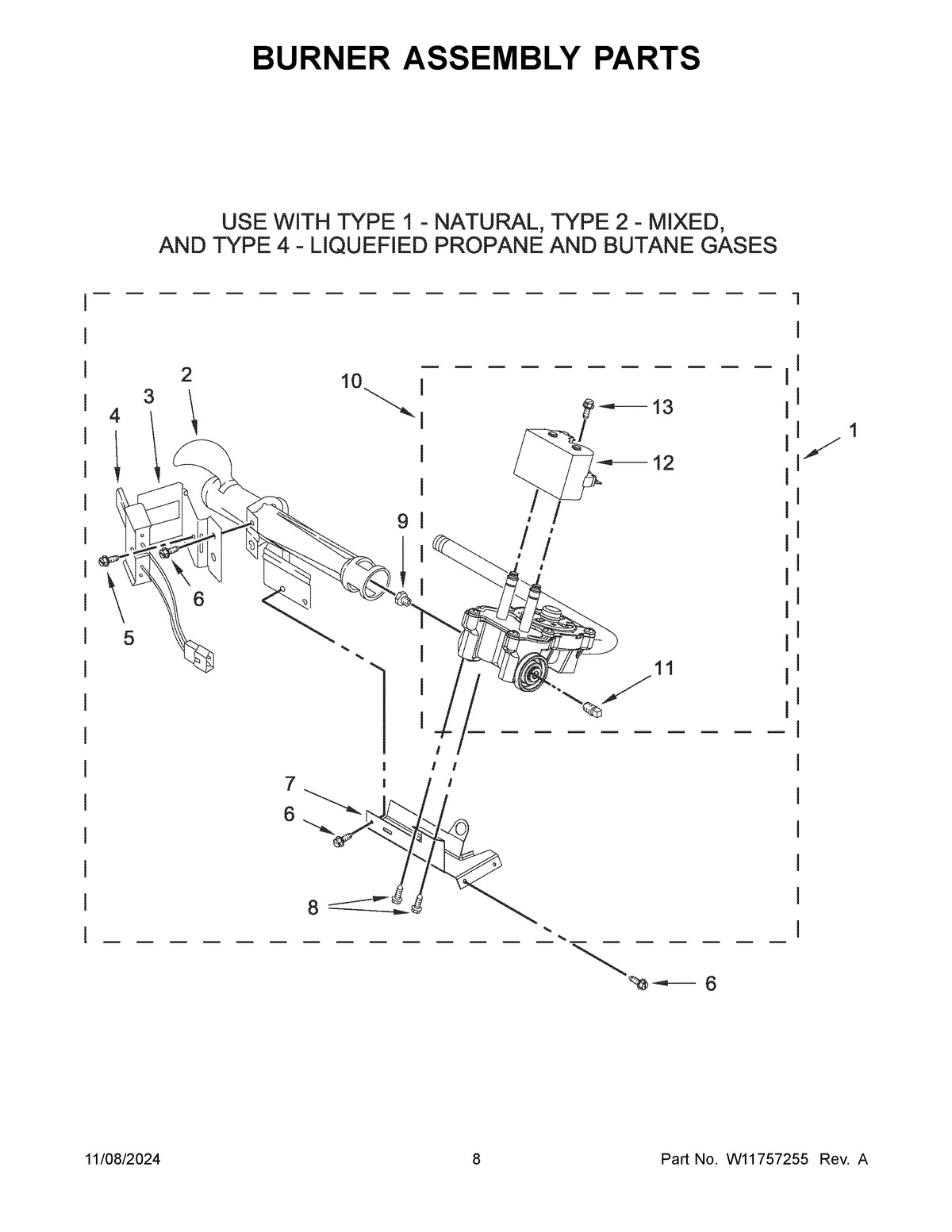

VDGW6511RW0 05 – BURNER ASSEMBLY PARTS

Products

Position	Product
NI	W11581316 Whirlpool Gas LP Conversion
NI	326049536 Whirlpool Screw
NI	FOLLOWING PARTS NOT ILLUSTRATED
1	W11652257 Whirlpool Gas Burner
2	WP693140 Whirlpool Burner
3	WP694298 Whirlpool Bracket
4	279311 Whirlpool Dryer Flat Igniter with Bracket
5	WPW10366705 Whirlpool Screw
6	SCREW
7	Base, Burner
8	WP693995 Whirlpool Screw
9	WP234826 Whirlpool Gas Orifice
10	W11646258 Whirlpool Gas Valve
11	W10295523 Whirlpool Plug
12	WPW10328463 Whirlpool Valve Coil
