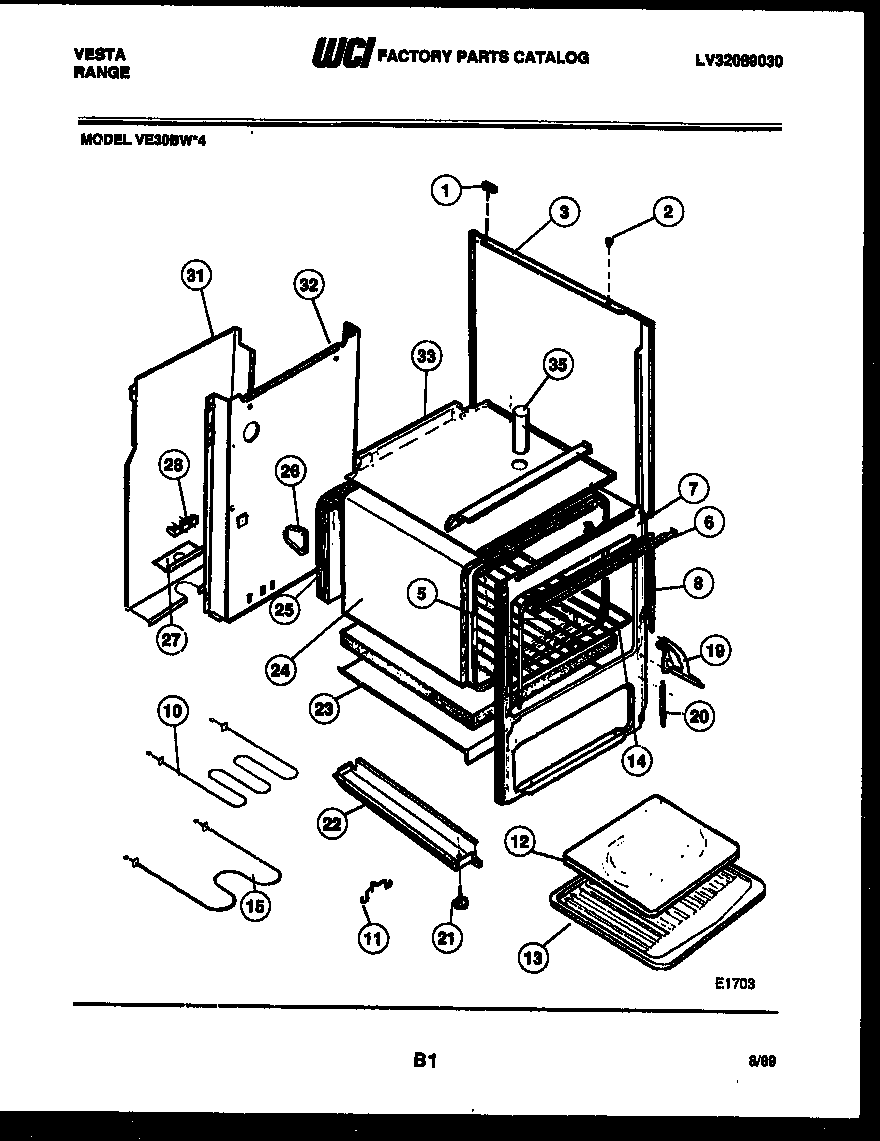

VE30BW4 03 – BODY PARTS

VE30BW4 03 – BODY PARTS

Written by

in

VE30BW4 03 – BODY PARTS

Products

PositionProduct
1GROMMET-MAINTOP
2GROMMET
3PANEL-BODYSIDE (WHITE) (2)
5LINER-OVEN TOP
5LINER-OVEN BACK
5LINER-OVEN BOTTOM
5LINER-LEFTSIDE
5LINER-RIGHT SIDE
6SUPPORT CONTROL PNL
7WCI 3205578
8WCI 3009427
10WCI 3009293
11WCI 3009445
12BROILER GRID
13WCI 3016973
14RACK-OVEN
15WCI 3017027
19WCI 3204670
19318348801 Frigidaire Oven Left Side Door Hinge
20SPRING (2)
21WCI 3051080
22BASE RAIL
23WCI 3017031
24WCI 3017029
25WCI 3017028
26SUPPORT-REAR OVN (2)
27WCI 3203614
285304409888 Frigidaire Oven Terminal Block with Hardware
31COVER-MAIN BACK
32WCI 3205592
33BURNER BOX BOTTOM
33ANTI-TIP KIT
35TUBE-VENT
