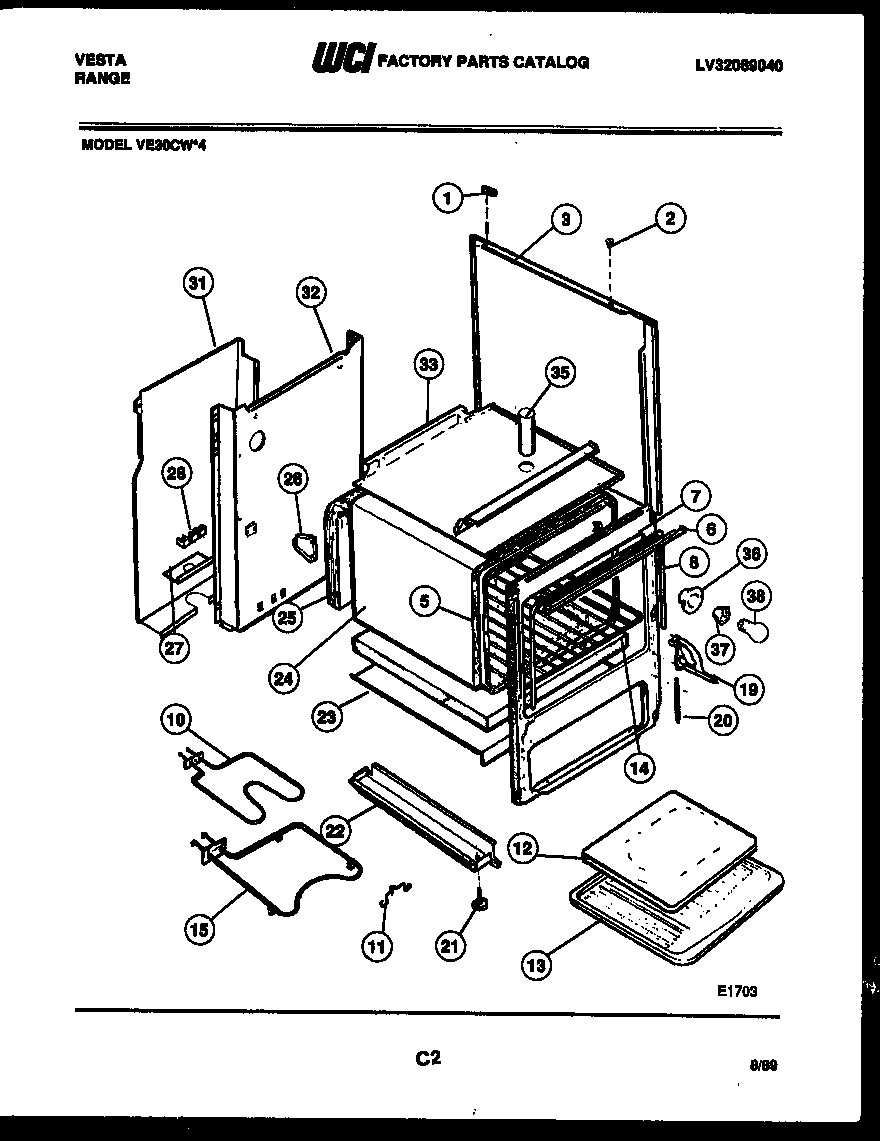

VE30CW4 02 – BODY PARTS

Products

Position	Product
*28641	ANTI-TIP KIT
1	GROMMET-MAINTOP
2	GROMMET
3	PANEL-BODYSIDE (WHITE) (2)
5B	LINER-OVEN TOP
5D	LINER-OVEN BOTTOM
5A	LINER-LEFTSIDE
5	LINER-RIGHT SIDE
5C	WCI 3205655
6	SUPPORT CONTROL PNL
7	WCI 3205578
8	WCI 3009427
10	WCI 3009293
11	WCI 3009445
12	BROILER GRID
13	WCI 3016973
14	RACK-OVEN
15	WCI 3017027
19	WCI 3204670
19A	318348801 Frigidaire Oven Left Side Door Hinge
20	SPRING – OVEN DOOR
21	WCI 3051080
22	BASE RAIL
23	WCI 3017031
24	WCI 3017029
25	WCI 3017028
26	SUPPORT-REAR OVN (2)
27	WCI 3203614
28	5304409888 Frigidaire Oven Terminal Block with Hardware
31	COVER-MAIN BACK
32	WCI 3205592
33	BURNER BOX BOTTOM
35	TUBE-VENT
36	WCI 3051511
37	316116400 Frigidaire Oven Light Socket
38	316538904 Frigidaire Oven Lamp Light
