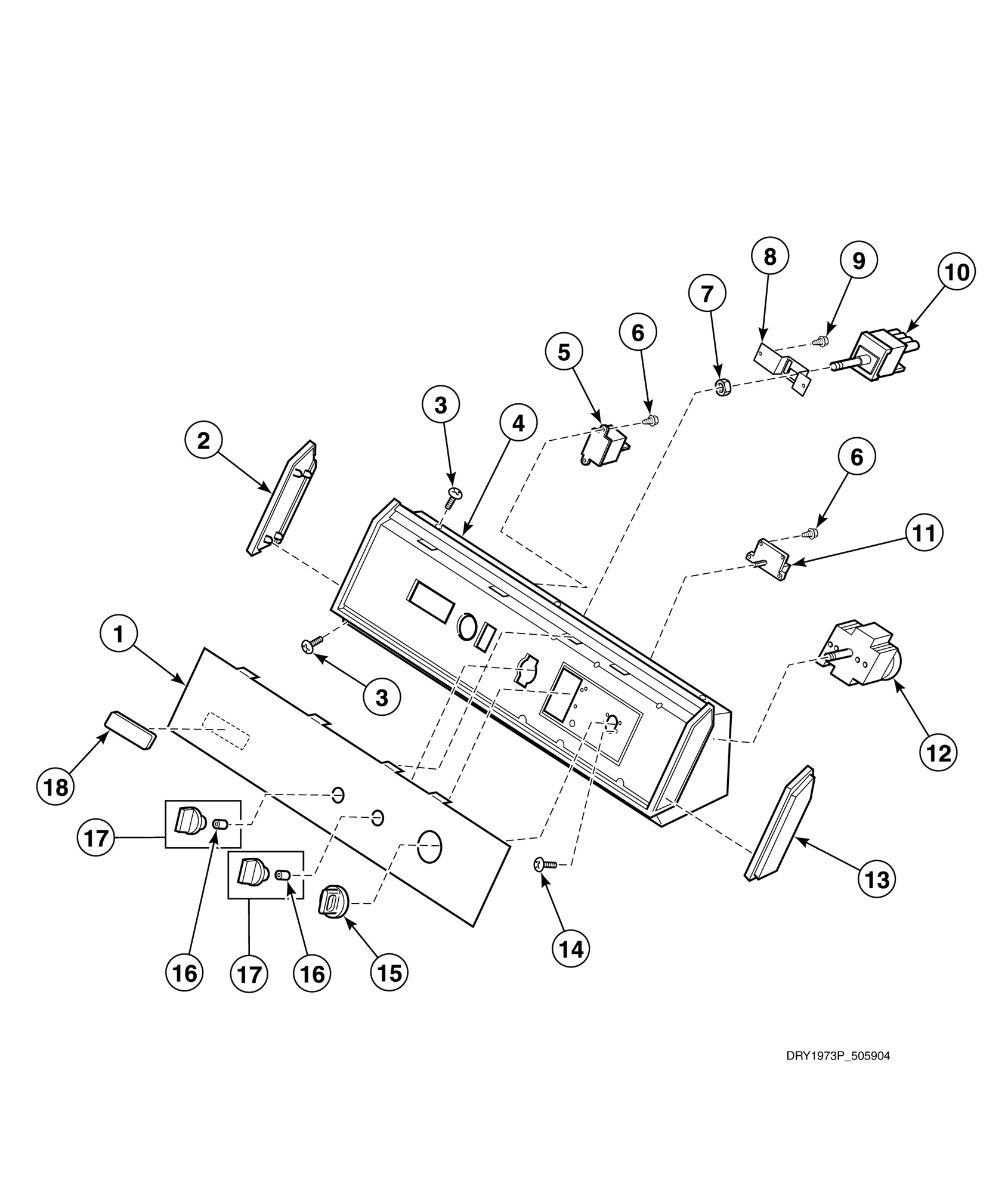

VE5013 Graphic Panel, Control Hood and Controls (Drawing 5 of 7)

VE5013 Graphic Panel, Control Hood and Controls (Drawing 5 of 7)

Written by

in

VE5013 Graphic Panel, Control Hood and Controls (Drawing 5 of 7)

Products

PositionProduct
3Screw
6Screw
7Nut
9Screw
10Fabric Selector Switch (Comment: Models starting Serial No. S6271976XG)
10Fabric Selector Switch (Comment: Models through Serial No. S6271975XG)
11Rotate-to-Start Switch
12Timer
14Screw
17Wire Harness Assembly
