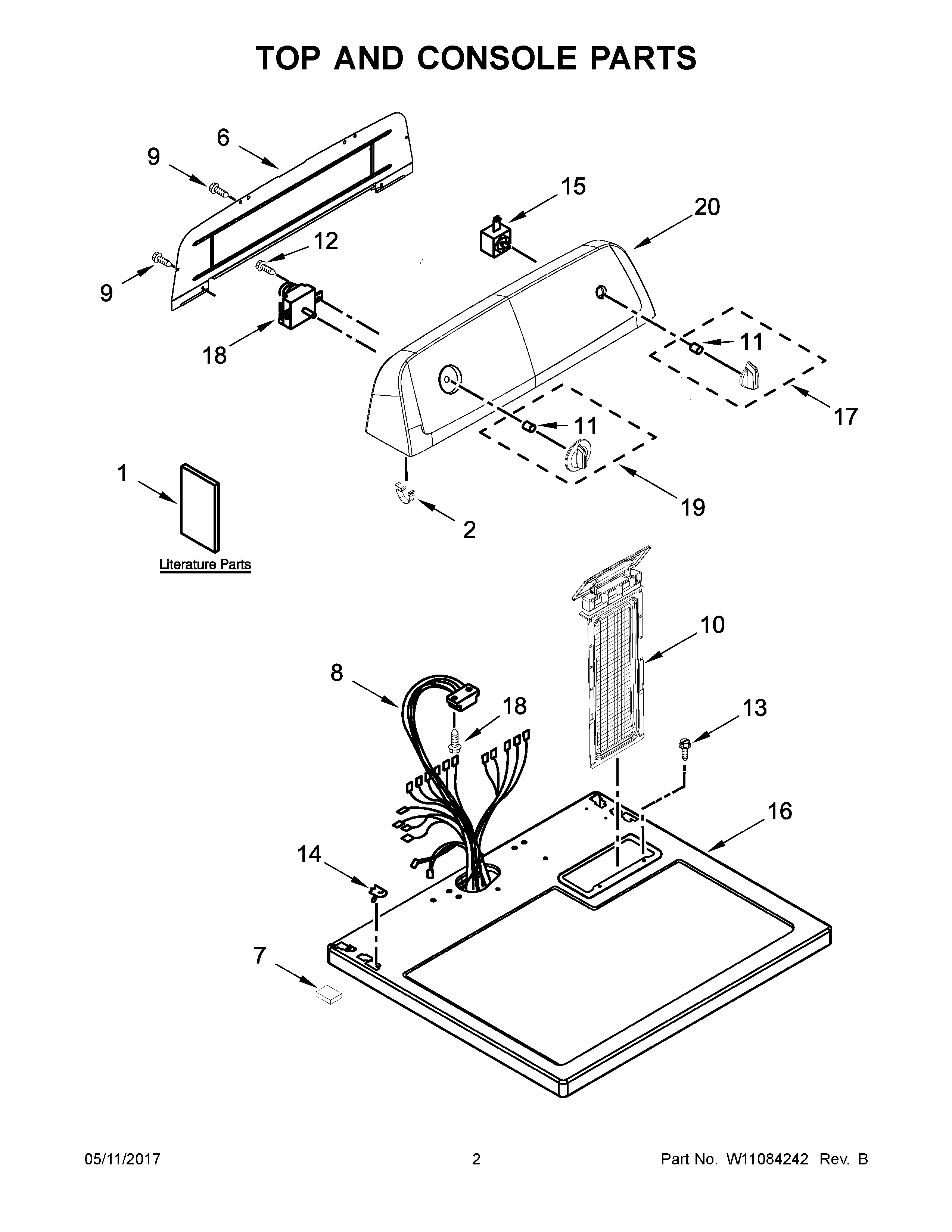

VED6505GW0 02 – TOP AND CONSOLE PARTS

VED6505GW0 02 – TOP AND CONSOLE PARTS

Written by

in

VED6505GW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1AUSE & CARE GUIDE
1BWIRING DIAGRAM
2WP8312709 Whirlpool Endcap Clip
3W11089352 Whirlpool Console Assembly
4WPW10711289 Whirlpool Washer Control Knob Dryer
5W10857612 Whirlpool Dryer Timer
6WPW10416486 Whirlpool Rear Panel
73389682 Whirlpool Spacer
8WPW10450286 Whirlpool Wire Harness
9WP693995 Whirlpool Screw
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP90767 Whirlpool Screw
13W11693756 Whirlpool Screw Assembly
14W11213336 Whirlpool Nut
15WPW10420741 Whirlpool Dryer Start Switch
16WP8563663 Whirlpool Top Assembly
17WPW10453948 Whirlpool Knob
18W10850756 Whirlpool Screw
