VG30CW2 04 – BROILER DRAWER PARTS – Aparts

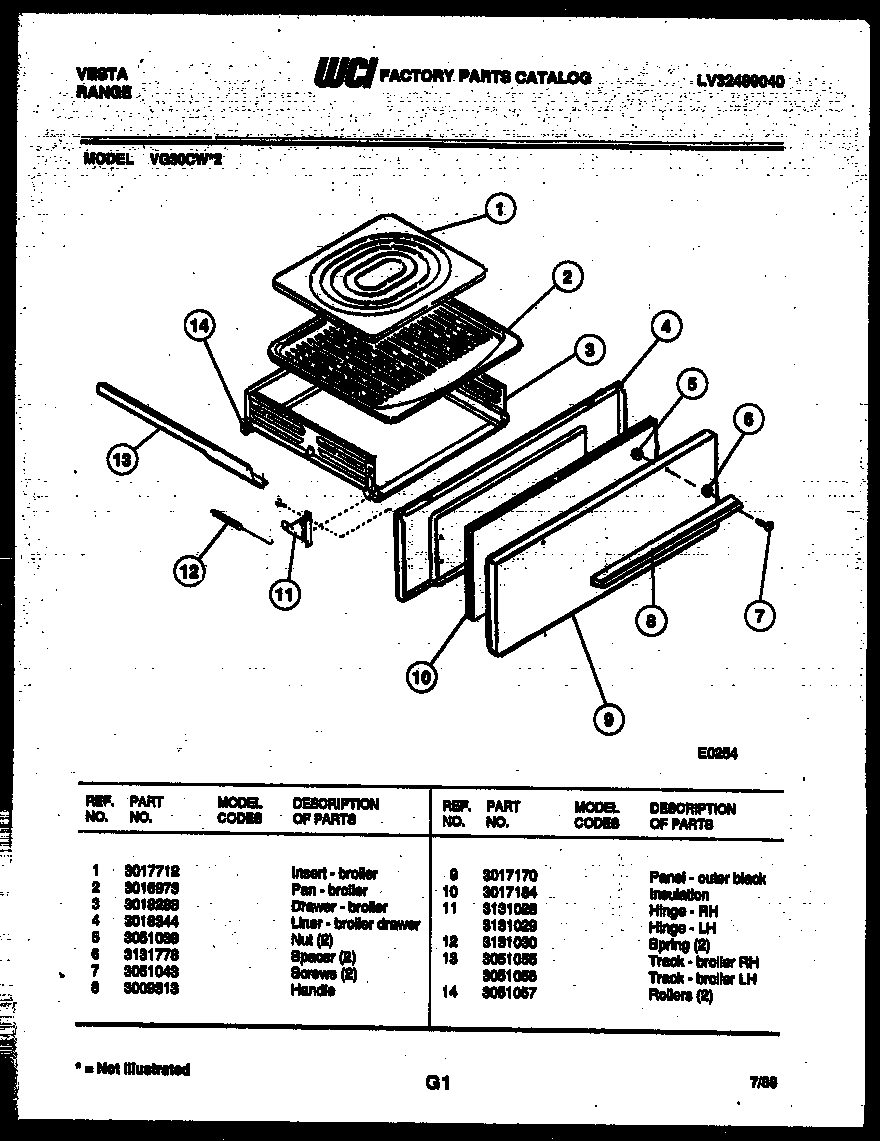

VG30CW2 04 – BROILER DRAWER PARTS

Products

Position	Product
1	BROILER GRID
2	WCI 3016973
3	5304504568 Frigidaire Drawer Assembly
4	WCI 3018344
5	5303013272 Frigidaire Oven Nut
6	WCI 3131778
7	5303292012 Frigidaire Oven Screw
8	WCI 3009313
9	WCI 3017170
10	WCI 3017184
11A	HINGE - LH
11	HINGE - RH
12	SPRING (2)
13	TRACK RIGHT HAND
13A	TRACK LEFT HAND
14	WCI 3051057
