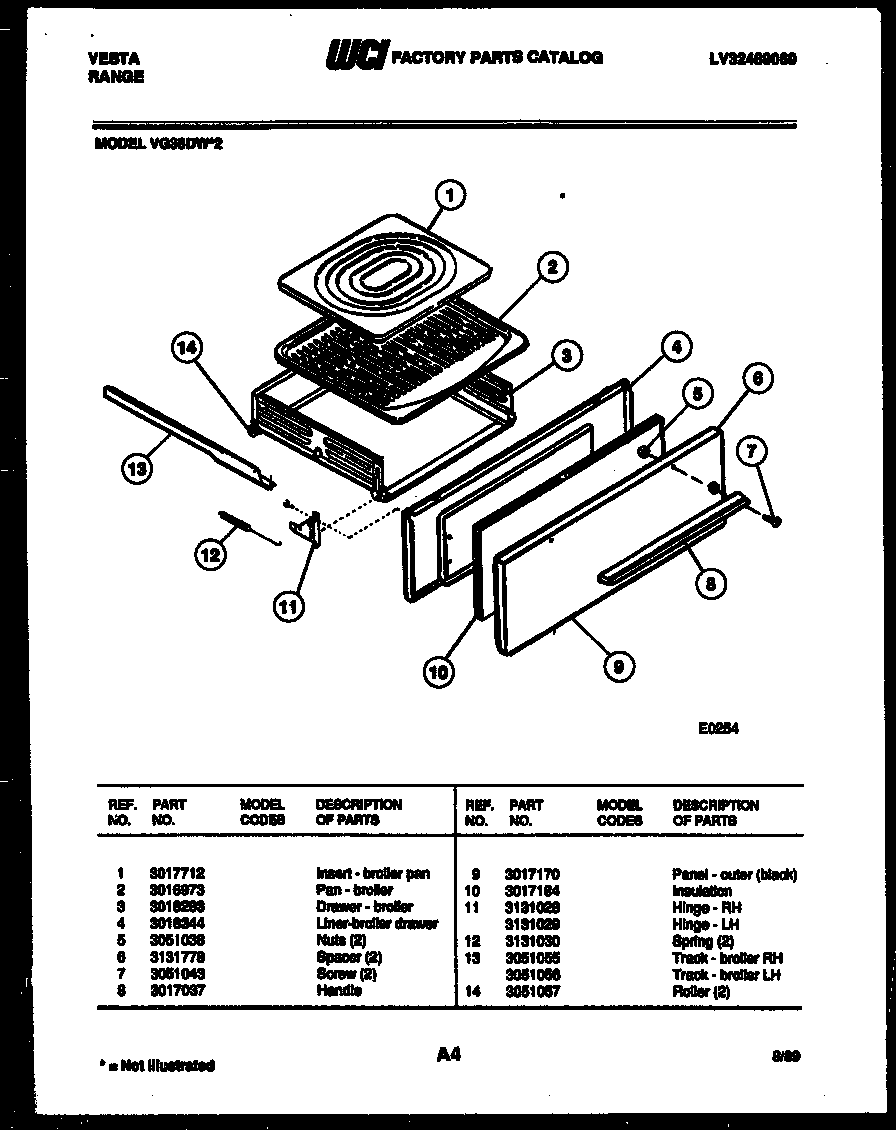

VG36DW2 04 – BROILER DRAWER PARTS

VG36DW2 04 – BROILER DRAWER PARTS

Written by

in

VG36DW2 04 – BROILER DRAWER PARTS

Products

PositionProduct
1BROILER GRID
2WCI 3016973
35304504568 Frigidaire Drawer Assembly
4WCI 3018344
55303013272 Frigidaire Oven Nut
6WCI 3131778
75303292012 Frigidaire Oven Screw
8WCI 3017037
9WCI 3017170
10WCI 3017184
11AHINGE – LH
11HINGE – RH
12SPRING (2)
13TRACK RIGHT HAND
13ATRACK LEFT HAND
14WCI 3051057
