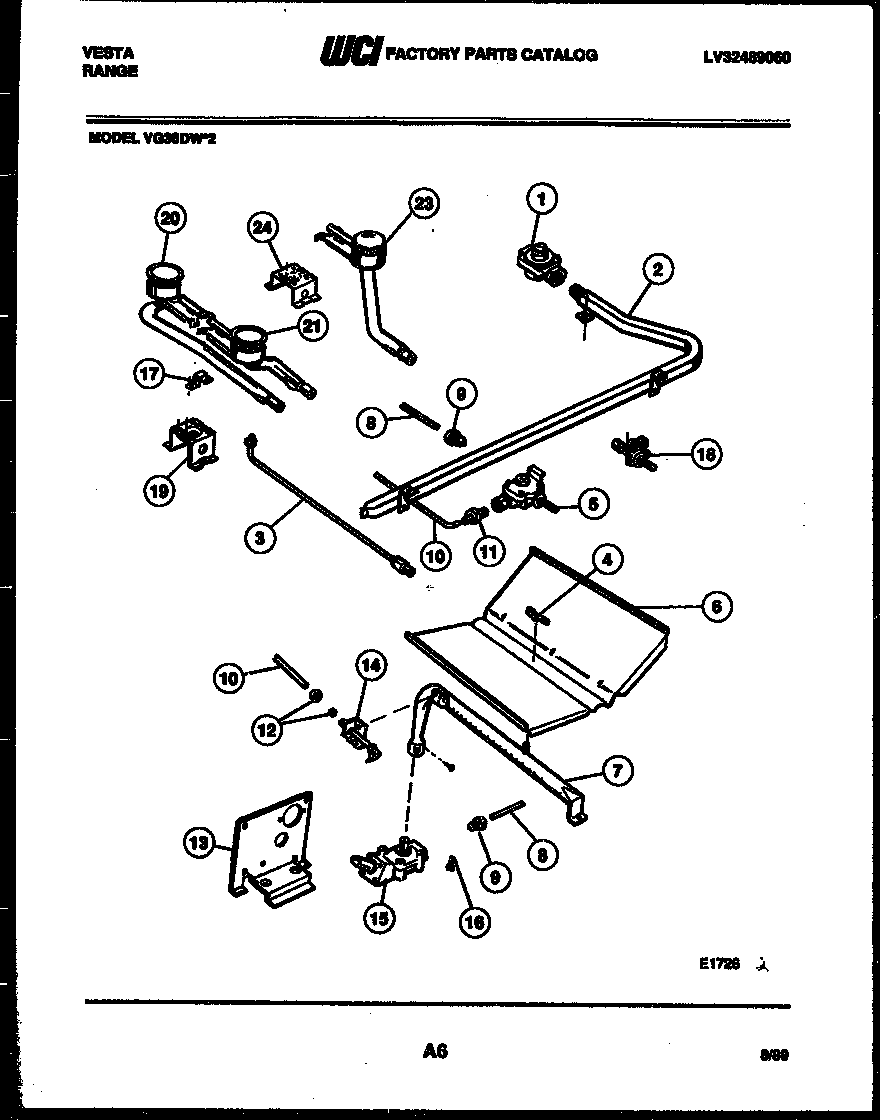

VG36DW2-23 06 – BURNER PARTS

Products

Position	Product
1	5308007974 Frigidaire Pressure Regulator
2	WCI P245185
3	PILOT-TOP BURNER (RIGHT)
3A	WCI P288035
4	NUT - WING
5	WCI 08013927
6	BAFFLE-OVEN BURNER
7	WCI 3131062
8	TUBE OVEN PILOT
9	WCI 08008363
10	TUBE-OVEN FEED
11	WCI 3131074
12	NUT & SLEEVE
13	SUPPORT-OVEN SAFETY VALVE
14	WCI 3205598
15	WCI 3131068
16	WCI 3131067
17	STRAP - PILOT SHIELD
18	VALVE-TOP BURNER (2)
19	SUPPORT - TOP BURNER
20	BURNER - TOP REAR
21	BURNER - TOP FRONT
22	WCI AP00091011
23	WCI 3131882
24	SUPPORT - GRID BURNER
