VG36DW2-23 07 – BODY PARTS

VG36DW2-23 07 – BODY PARTS

Written by

in

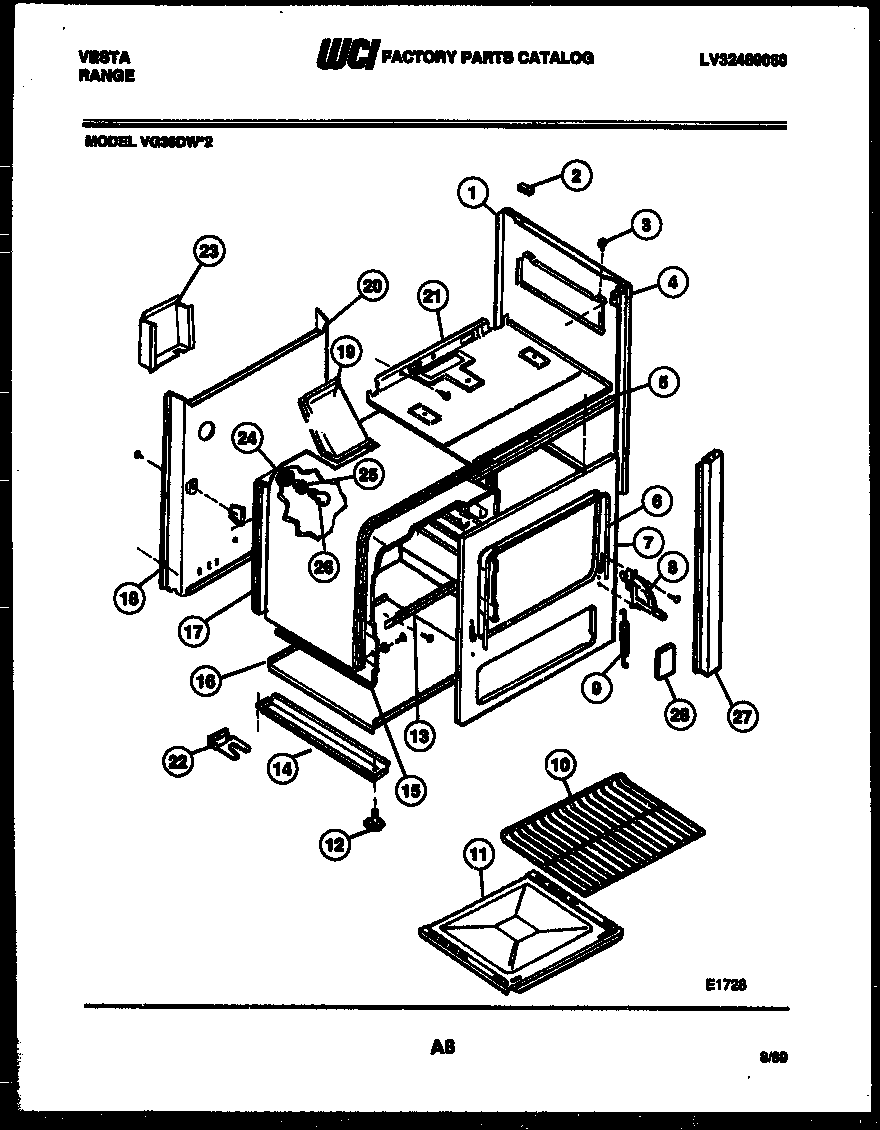

VG36DW2-23 07 – BODY PARTS

Products

PositionProduct
*29238REFLECTOR PLATE (NON-ILLUSTRATED)
1WCI 08014019
2GROMMET MAIN TOP
3GROMMET
4AWCI 3131054
4WCI 3131053
5SUPPORT-CONTROL PANEL
6WCI 08008022
7WCI 3205578
8A318348801 Frigidaire Oven Left Side Door Hinge
8WCI 3204670
9SPRING – OVEN DOOR
10RACK-OVEN
11WCI 3018282
12WCI 3051080
13SUPPORT-OVEN BOTTOM
14BASE RAIL
15AOVEN LINER-SIDE LH
15CWCI 3018286
15OVEN LINER-SIDE RH
15BWCI 3018347
16WCI 3011645
17WCI 3017171
17AWCI 3017172
18SUPPORT-REAR OVN (2)
19WCI 3017173
20BACK – MAIN
21WCI 3017993
22ACLIP,BODYSIDE
22ANTI-TIP KIT
23WCI 3018340
24WCI 3051511
25316116400 Frigidaire Oven Light Socket
26316538904 Frigidaire Oven Lamp Light
27PANEL FILLER – ALMOND
28SUPPORT – BASE RAIL (2)
