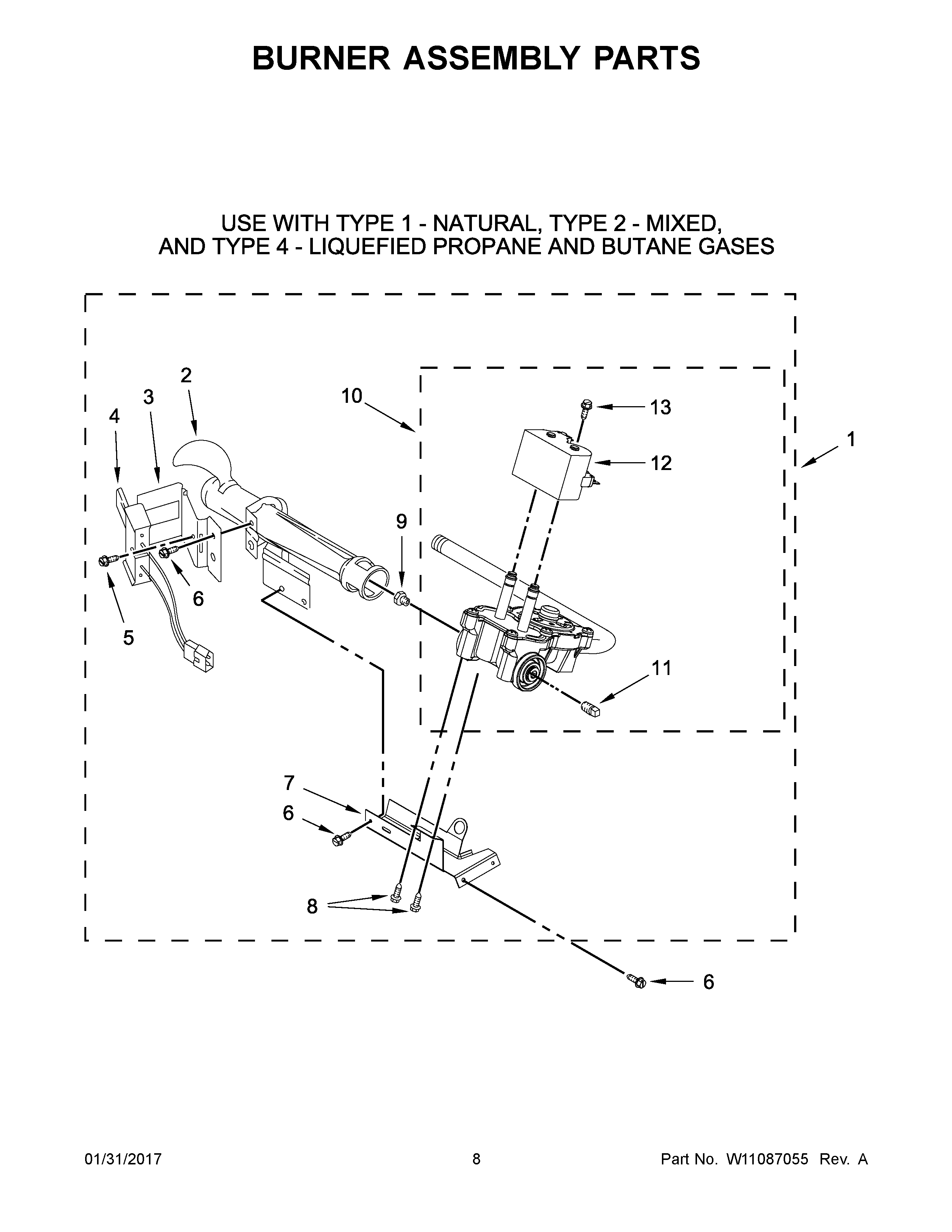

VGD6505GW0 05 – BURNER ASSEMBLY PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	49572A Whirlpool Dryer Propane Gas Conversion Kit
1	W10823508 Whirlpool Gas Burner
2	WP693140 Whirlpool Burner
3	WP694298 Whirlpool Bracket
4	279311 Whirlpool Dryer Flat Igniter with Bracket
5	WPW10366705 Whirlpool Screw
6	SCREW
7	Base, Burner
8	WP693995 Whirlpool Screw
9	WP234826 Whirlpool Gas Orifice
10	279923 Whirlpool Gas Valve
11	W10295523 Whirlpool Plug
12	WPW10328463 Whirlpool Valve Coil
13	326049536 Whirlpool Screw
