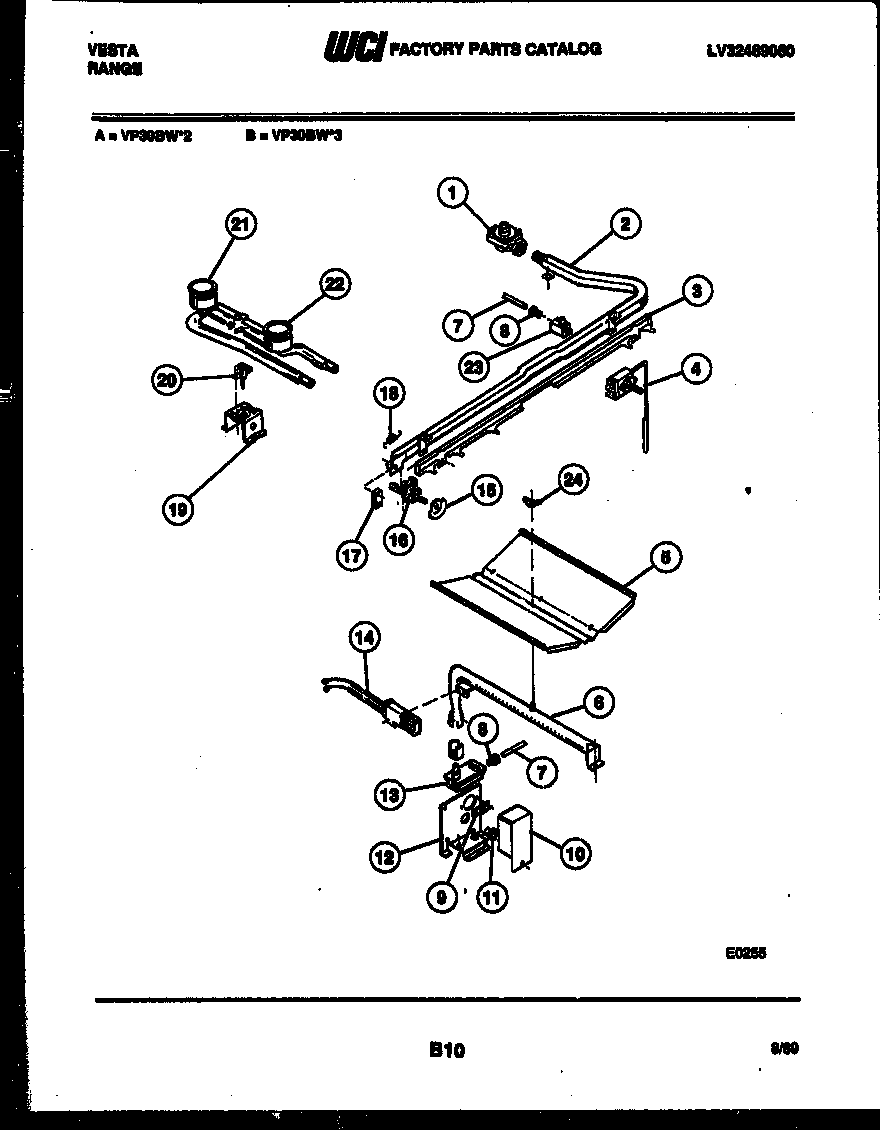

VP30BW2 05 – BURNER PARTS

Products

Position	Product
1	5308007974 Frigidaire Pressure Regulator
2	WCI 08013906
3	SLIDE BAR
4A	WCI AP00091011
4	THERMOSTAT
5	BAFFLE-OVEN BURNER
6	WCI 3202752
7	TUBE - 3/8 FEED
8	BUT - 3/8 LOXIT
9	TERMINAL BLOCK
10	COVER - OVEN SAFETY VALVE
11	SNAP - BUSHING
12	SUPPORT-OVEN SAFETY VALVE
13	WCI 08009419
14	5303935066 Frigidaire Oven Flat Igniter 17" Leads
15	CAM TOP BURNER VALVE
16	WCI 3131057
17	WCI 08013925
18	WCI 3131096
19	SUPPORT - TOP BURNER
20	IGNITER 36``
21	BURNER - TOP REAR
22	BURNER - TOP FRONT
23	WCI 3131099
24	NUT - WING
