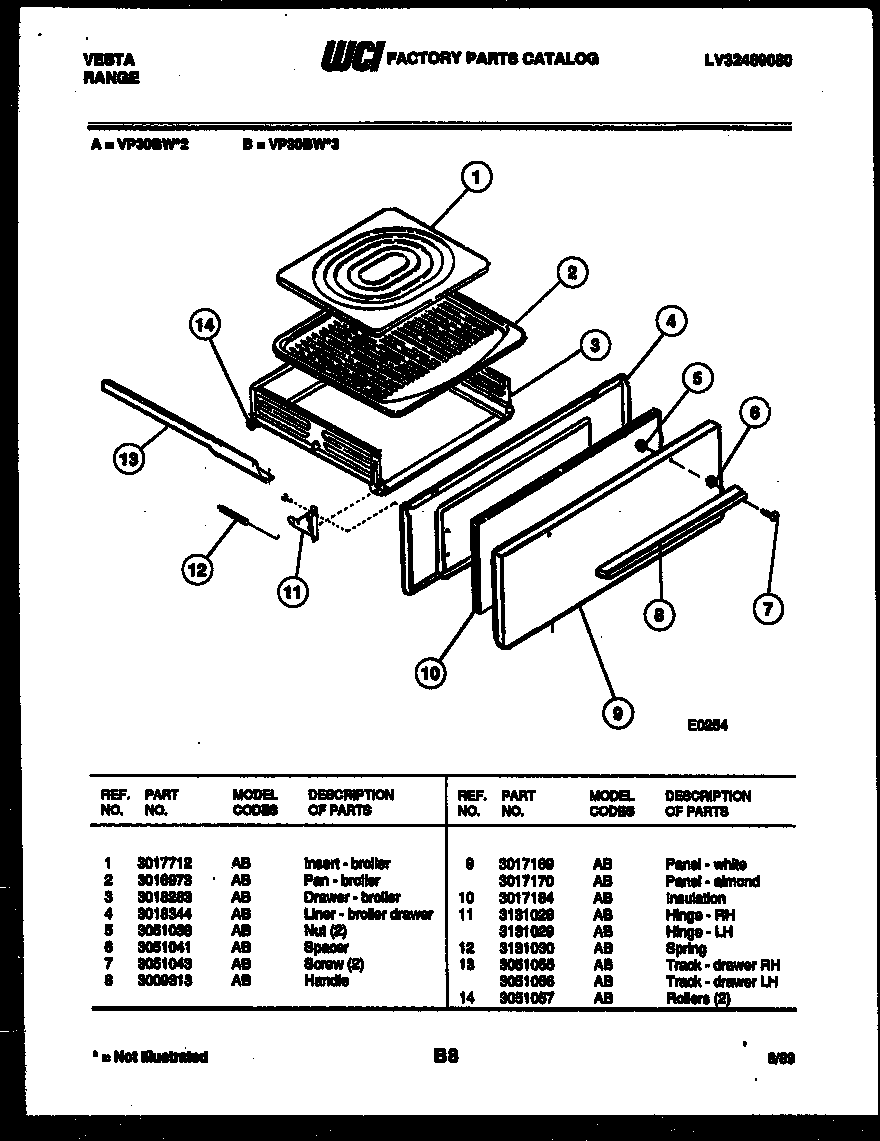

VP30BW3-23 03 – BROILER DRAWER PARTS

VP30BW3-23 03 – BROILER DRAWER PARTS

Written by

in

VP30BW3-23 03 – BROILER DRAWER PARTS

Products

PositionProduct
1BROILER GRID
2WCI 3016973
35304504568 Frigidaire Drawer Assembly
4WCI 3018344
55303013272 Frigidaire Oven Nut
6SPACER HANDLE (2)
75303292012 Frigidaire Oven Screw
8WCI 3009313
9WCI 3017170
10WCI 3017184
11HINGE – RH
11AHINGE – LH
12SPRING (2)
13ATRACK LEFT HAND
13TRACK RIGHT HAND
14WCI 3051057
