VP30CW2-23 07 – BODY PARTS

VP30CW2-23 07 – BODY PARTS

Written by

in

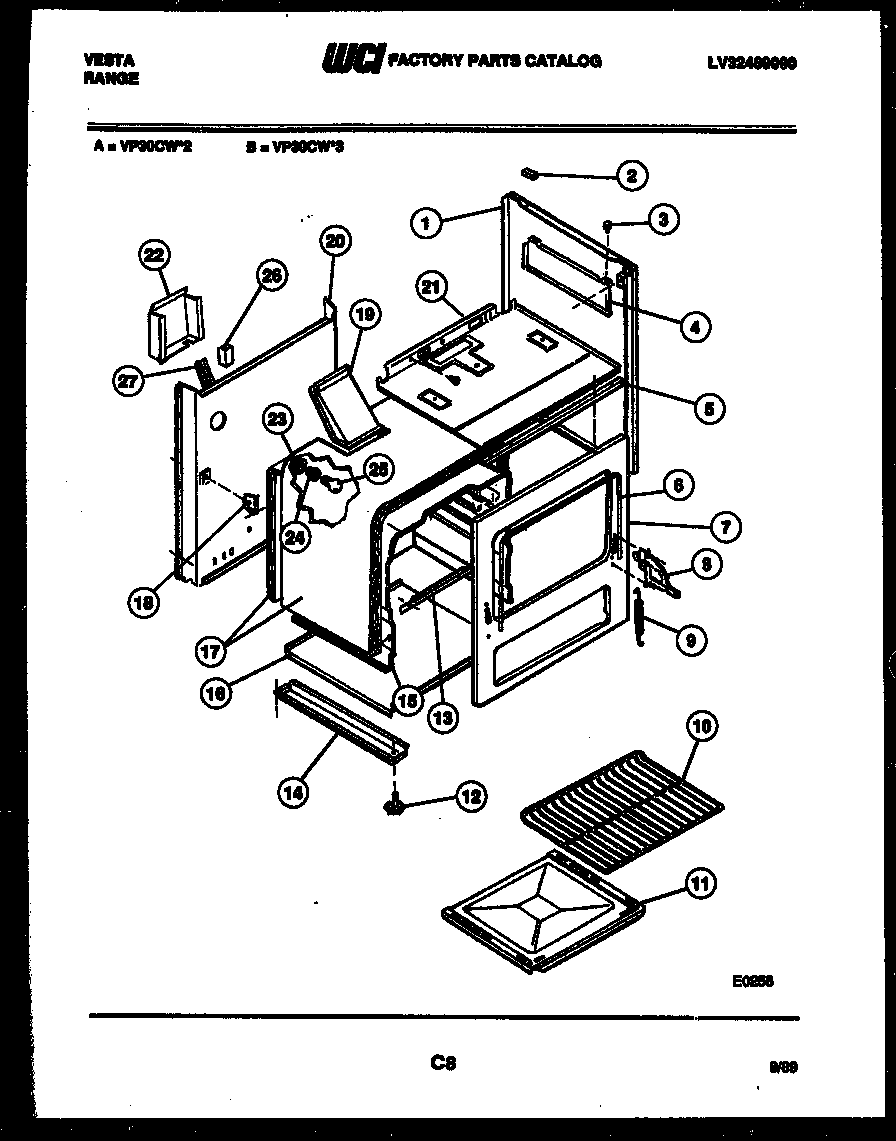

VP30CW2-23 07 – BODY PARTS

Products

PositionProduct
1WCI 08014019
2GROMMET MAIN TOP
3GROMMET
4AWCI 3131054
4WCI 3131053
5SUPPORT CONTROL PNL
6WCI 08008022
7WCI 3205578
8WCI 3204670
8A318348801 Frigidaire Oven Left Side Door Hinge
9SPRING – OVEN DOOR
10RACK-OVEN
11WCI 3018282
12WCI 3051080
13SUPPORT-OVEN BOTTOM
14BASE RAIL
15OVEN LINER-SIDE RH
15AOVEN LINER-SIDE LH
15CWCI 3018286
15BWCI 3018347
16WCI 3011645
17AWCI 3017172
17WCI 3017171
18SUPPORT-REAR OVN (2)
19WCI 3017173
20WCI 3013340
21AANTI-TIP KIT
21BCLIP,BODYSIDE
21WCI 3017174
22WCI 08008357
23WCI 3051511
24316116400 Frigidaire Oven Light Socket
25316538904 Frigidaire Oven Lamp Light
265303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
27CHANNEL – MAIN WIRE
