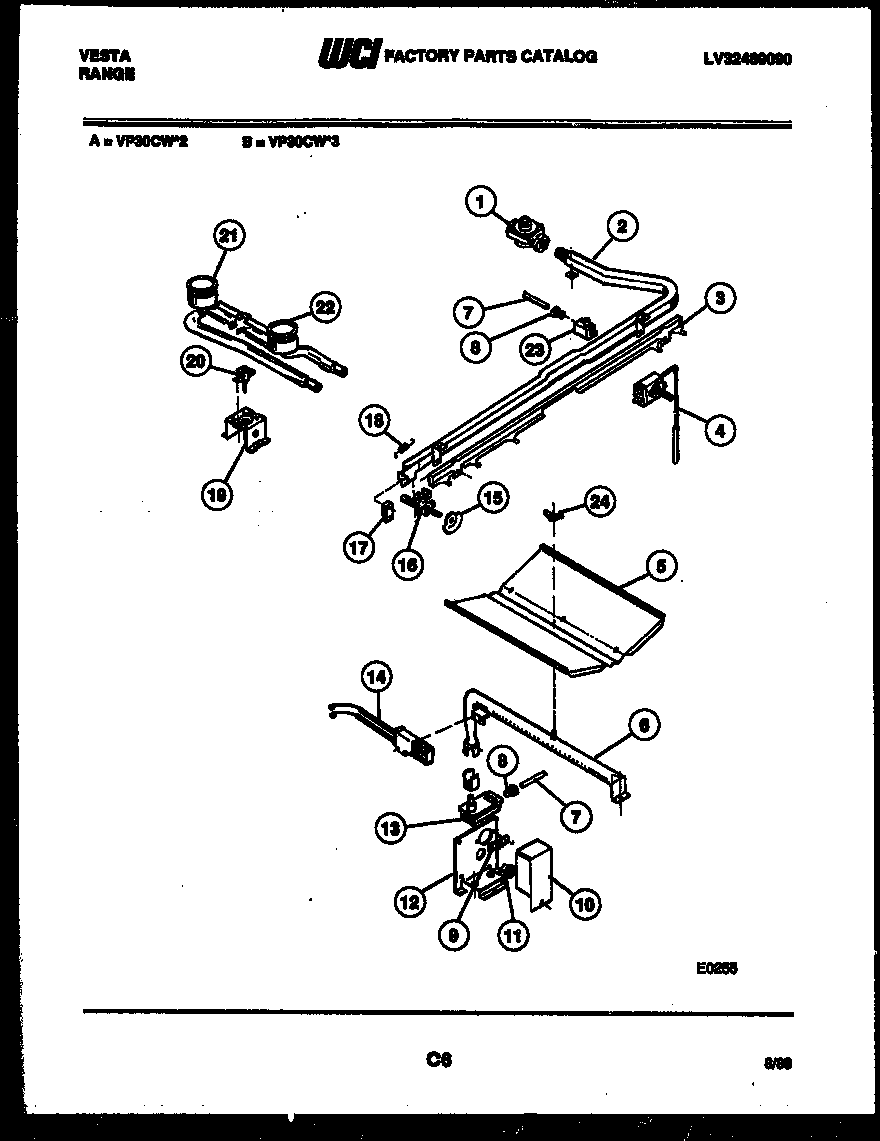

VP30CW3 06 – BURNER PARTS

Products

Position	Product
1	5308007974 Frigidaire Pressure Regulator
2	WCI 08013906
3	SLIDE BAR
4A	WCI AP00091011
4	THERMOSTAT
5	BAFFLE-OVEN BURNER
6	WCI 3202752
7	TUBE – 3/8 FEED
8	BUT – 3/8 LOXIT
9	WCI 08007985
10	WCI 08007986
11	SNAP – BUSHING
12	SUPPORT-OVEN SAFETY VALVE
13	WCI 08009419
14	5303935066 Frigidaire Oven Flat Igniter 17" Leads
15	CAM TOP BURNER VALVE
16	WCI 3131057
17	WCI 08013925
18	WCI 3131096
19	WCI 3203964
20	IGNITOR-TOP BURNER 36“
21	BURNER – TOP REAR
22	BURNER – TOP FRONT
23	WCI 3131099
24	NUT – WING
