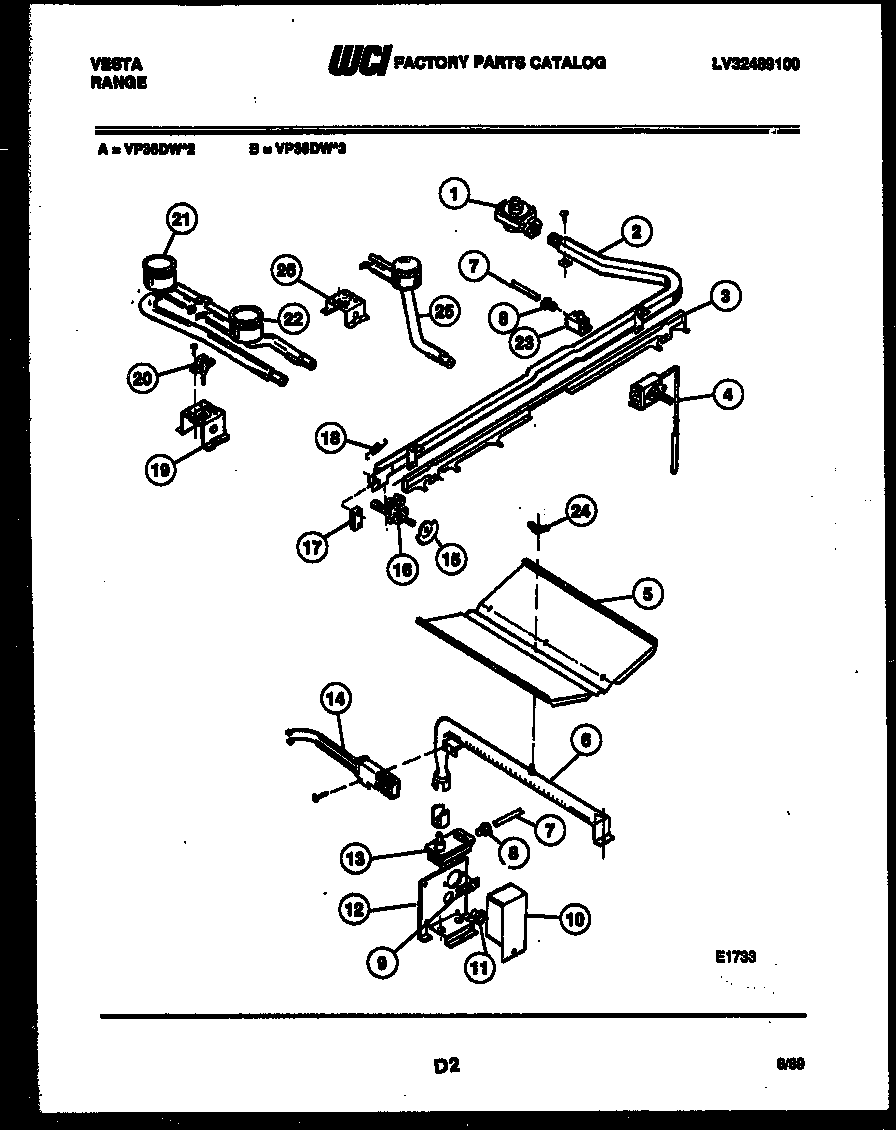

VP36DW3-23 06 – BURNER PARTS

Products

Position	Product
1	5308007974 Frigidaire Pressure Regulator
2	MANIFOLD PIPE
3	WCI 3018341
4A	WCI AP00091011
4	THERMOSTAT
5	BAFFLE-OVEN BURNER
6	WCI 3202752
7	TUBE – 3/8 FEED
8	BUT – 3/8 LOXIT
9	WCI 08007985
10	WCI 08007986
11	SNAP – BUSHING
12	SUPPORT-OVEN SAFETY VALVE
13	WCI 08009419
14	5303935066 Frigidaire Oven Flat Igniter 17" Leads
15	WCI 3131859
16	VALVE-TOP BURNER (2)
17	MICRO – SWITCH
18	WCI 3131096
19	WCI 3203964
20	IGNITER-TOP BURNER 48“
21	BURNER – TOP REAR
22	BURNER – TOP FRONT
23	WCI 3131099
24	NUT – WING
25	WCI 3131882
26	SUPPORT – GRID BURNER
