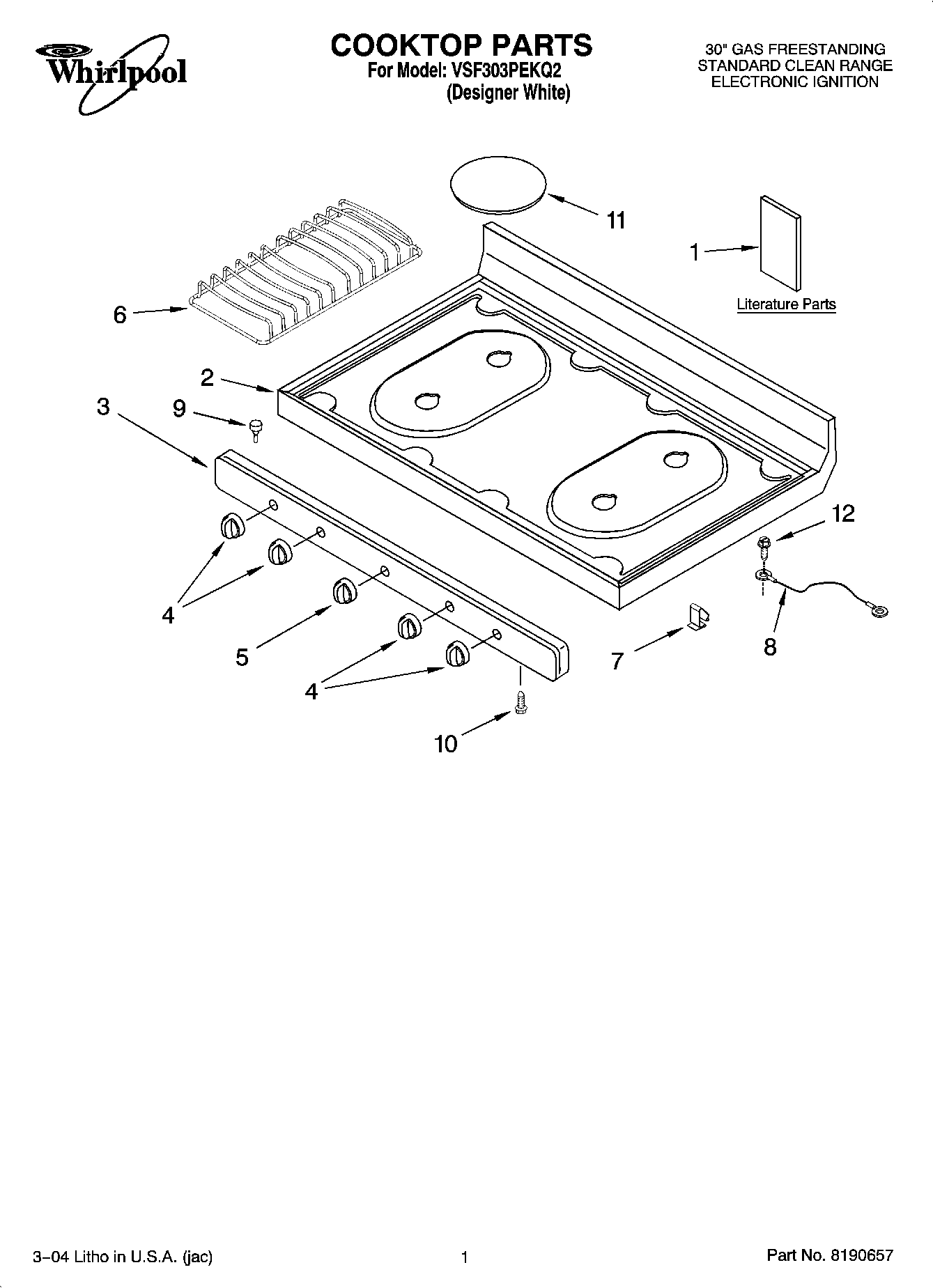

VSF303PEKQ2 01 – COOKTOP PARTS

VSF303PEKQ2 01 – COOKTOP PARTS

Written by

in

VSF303PEKQ2 01 – COOKTOP PARTS

Products

PositionProduct
1Literature Parts (Guide, Use & Care)
1Literature Parts (Instructions Installation)
1test
1Literature Parts (Installation Instr (Template))
1Literature Parts (Safer Cooking Tips)
1Literature Parts (Tech Sheet)
2Cooktop (White)
3Panel, Manifold (White)
4WP98006102 Whirlpool Knob
5WP98008321 Whirlpool Range Stove Burner Thermostat Control Knob
68190014 Whirlpool Grate Kit Primary
7CLIP, COOKTOP
83184020 Whirlpool Oven Wire
9W10831827 Whirlpool Bumper
10SCREW
11WP98005518 Whirlpool Burner Cap
12WP98007225 Whirlpool Screw Assembly
