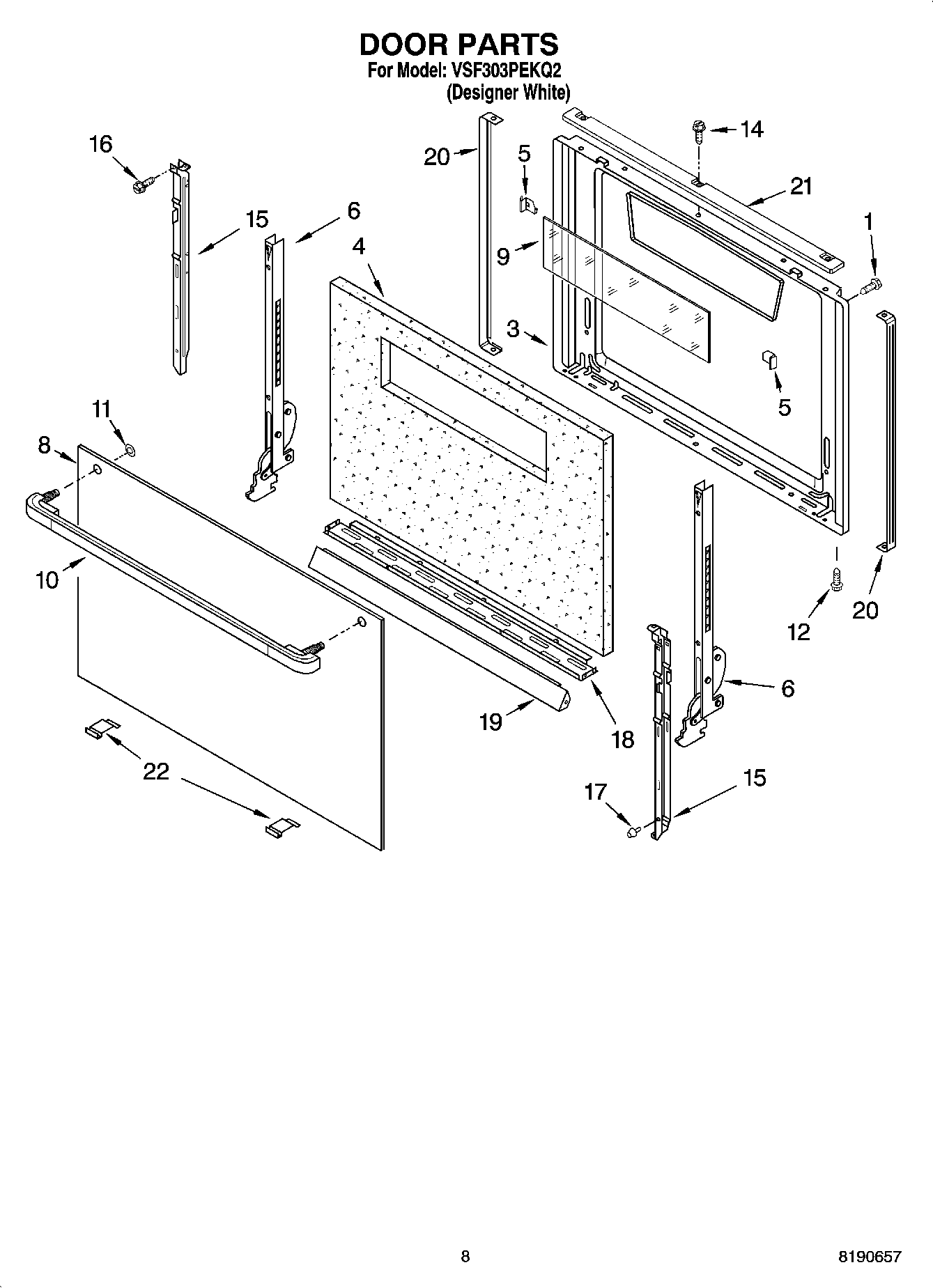

VSF303PEKQ2 06 – DOOR PARTS, MISCELLANEOUS PARTS

Products

Position	Product
	WPL ARI134150A
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 200 c Brown)
	8212471 Whirlpool Oven Paint
	Grease
	CLIP, WIRE
	WPL 6610371
	98017831 Whirlpool Oven Anchor Tip
	Harness, Switch
	WPL 98005915
	WPL ARI134151A
	WPL ARI134145A
	WPL ARI134146A
	WPL ARI134147A
	WPL ARI134148A
	WPL ARI134149A
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	511873 Whirlpool Refrigerator Paint
	350942 Whirlpool Spray Paint
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350930 Whirlpool White Spray Paint
	549193 Whirlpool Refrigerator Power Clamp
	WPL 799832
	WPW10208653 Whirlpool Insulation
	Wire, 25` Roll (Red 14 Ga.)
	285006 Whirlpool Spray
	814381 Whirlpool Pin
	242831 Whirlpool Oven Wire
	Wire (14 Ga. 150 c Blue)
1	Screw
3	98010182 Whirlpool Door Liner
4	Insulation, Door
5	98004952 Whirlpool Oven Clip
5	98004953 Whirlpool Clip
6	Hinge, Door (2)
8	Panel, Door (White)
9	Glass, Inner
10	WP98005318 Whirlpool Door Handle
11	WP98004650 Whirlpool Nut
12	WP59002061 Whirlpool Microwave Screw
14	3196166 Whirlpool Screw
15	98004629 Whirlpool Oven Retainer
15	98004564 Whirlpool Oven Retainer
16	WP3400805 Whirlpool Screw Assembly
17	98004227 Whirlpool Oven Bumper
18	98004938 Whirlpool Oven Retainer
19	Insulation, Retainer-Bottom
20	98006794 Whirlpool Oven Door Trim
21	Top Trim, Door (White)
22	WP98010185 Whirlpool Door Trim
