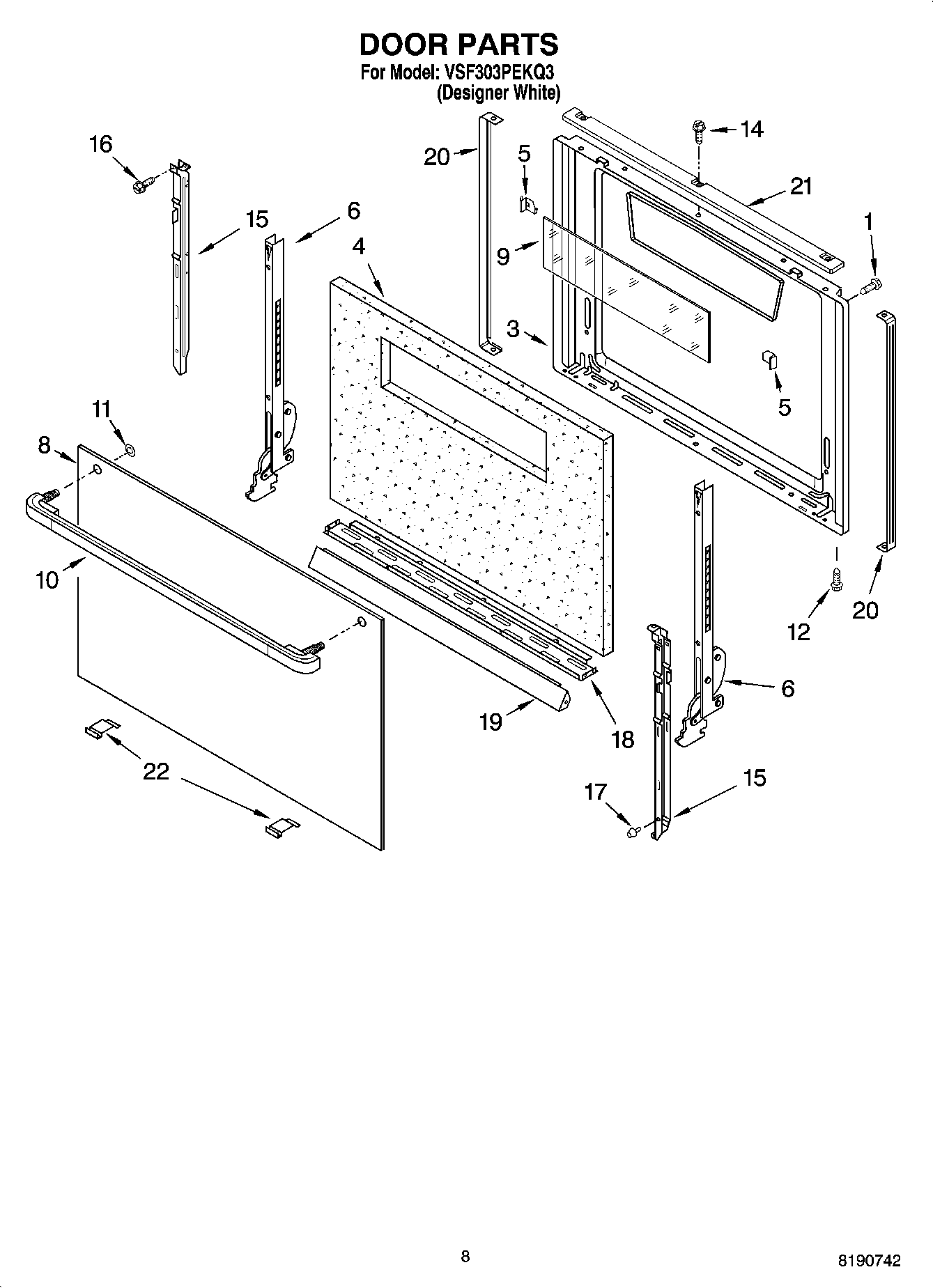

VSF303PEKQ3 06 – DOOR PARTS, MISCELLANEOUS PARTS

Products

Position	Product
	WPL ARI134159A
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 200 c Brown)
	8212471 Whirlpool Oven Paint
	3196696 Whirlpool Clip
	Grease
	98015022 Whirlpool Bushing Assembly
	WP3391018 Whirlpool Wire Tie
	CLIP, WIRE
	98017831 Whirlpool Oven Anchor Tip
	WPL ARI134160A
	6610437 Whirlpool Wire Harness
	WPL ARI134154A
	WPL ARI134155A
	WPL ARI134156A
	WPL ARI134157A
	WPL ARI134158A
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	350942 Whirlpool Spray Paint
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	549193 Whirlpool Refrigerator Power Clamp
	WPL 799832
	WPW10208653 Whirlpool Insulation
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
	350930 Whirlpool White Spray Paint
	814381 Whirlpool Pin
	285006 Whirlpool Spray
	Wire, 25` Roll (Red 14 Ga.)
	511873 Whirlpool Refrigerator Paint
1	Screw
3	98010182 Whirlpool Door Liner
4	Insulation, Door
5	98004952 Whirlpool Oven Clip
5	98004953 Whirlpool Clip
6	Hinge, Door (2)
8	Panel, Door (White)
9	Glass, Inner
10	WP98005318 Whirlpool Door Handle
11	WP98004650 Whirlpool Nut
12	WP59002061 Whirlpool Microwave Screw
14	3196166 Whirlpool Screw
15	98004564 Whirlpool Oven Retainer
15	98004629 Whirlpool Oven Retainer
16	WP3400805 Whirlpool Screw Assembly
17	98004227 Whirlpool Oven Bumper
18	98004938 Whirlpool Oven Retainer
19	Insulation, Retainer-Bottom
20	98006794 Whirlpool Oven Door Trim
21	Top Trim, Door (White)
22	WP98010185 Whirlpool Door Trim
