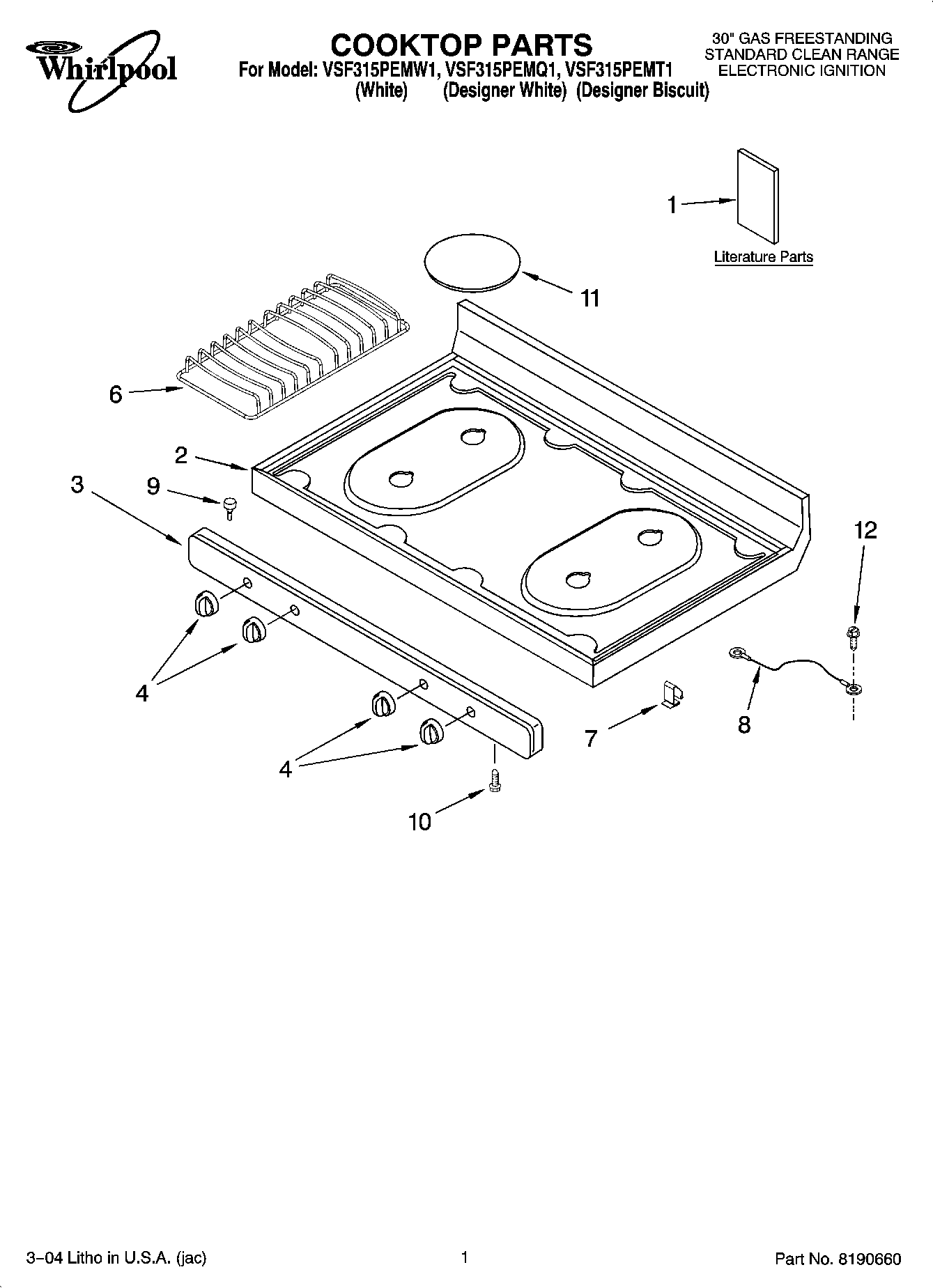

VSF315PEMT1 01 – COOKTOP PARTS

VSF315PEMT1 01 – COOKTOP PARTS

Written by

in

VSF315PEMT1 01 – COOKTOP PARTS

Products

PositionProduct
1Literature Parts (Guide, Use & Care)
1Literature Parts (Safer Cooking Tips)
1Literature Parts (Tech Sheet)
1Literature Parts (Installation Instr (Template))
1Literature Parts (Instructions Installation)
2Cooktop (White)
2Cooktop (Biscuit)
3Panel, Manifold (Biscuit)
3Panel, Manifold (Black)
3Panel, Manifold (White)
4WP98008208 Whirlpool Knob
4WP98006100 Whirlpool Knob
4WP98006102 Whirlpool Knob
68190014 Whirlpool Grate Kit Primary
7CLIP, COOKTOP
83184020 Whirlpool Oven Wire
9W10831827 Whirlpool Bumper
10SCREW
11WP98005518 Whirlpool Burner Cap
12WP98007225 Whirlpool Screw Assembly
