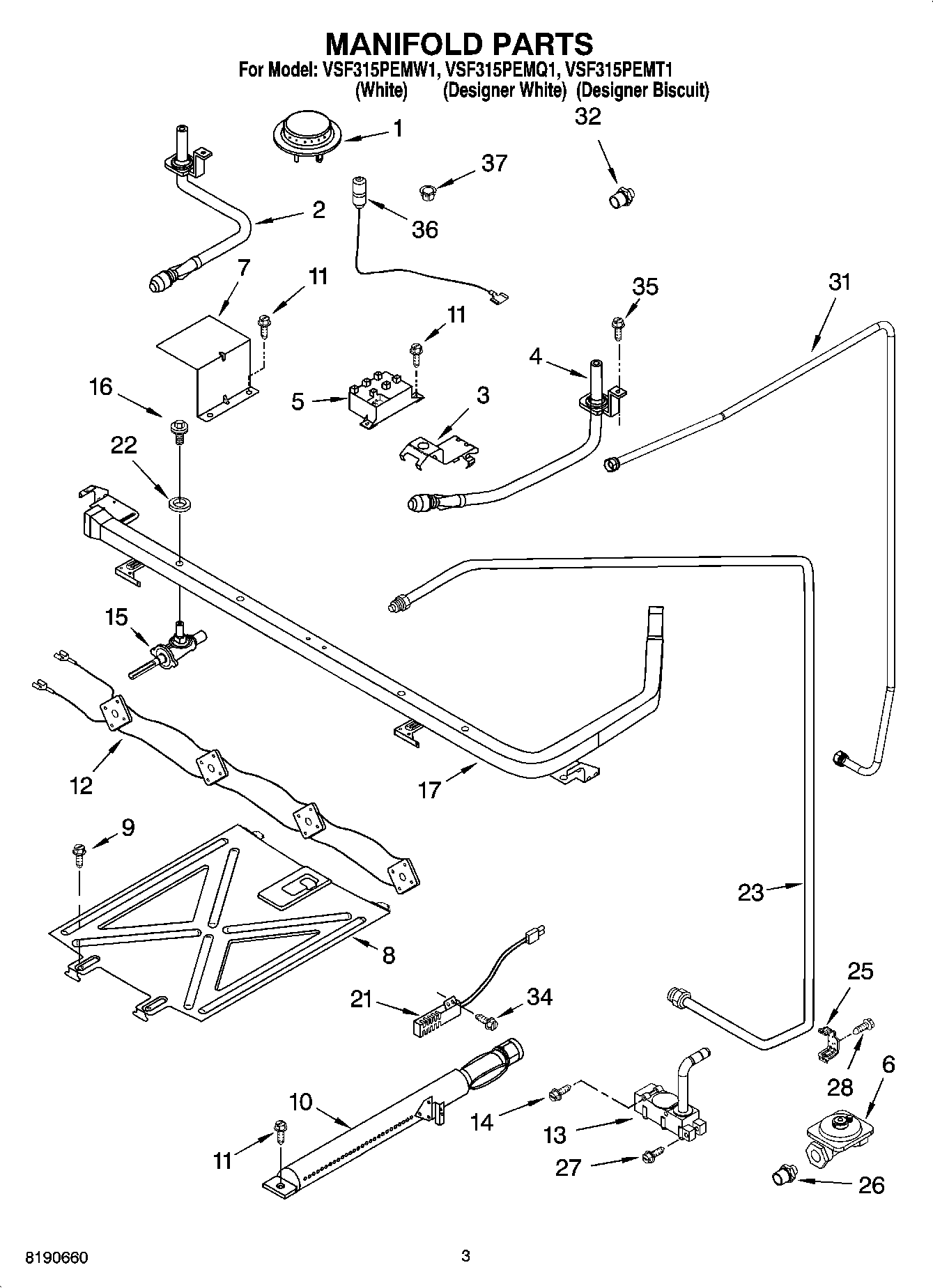

VSF315PEMT1 03 – MANIFOLD PARTS

VSF315PEMT1 03 – MANIFOLD PARTS

Written by

in

VSF315PEMT1 03 – MANIFOLD PARTS

Products

PositionProduct
1Burner, Top (Right)
1Burner, Top (Left)
2WP6610243 Whirlpool Venturi
3Brkt., Venturi (4)
4WP6610244 Whirlpool Venturi Assembly
5W11590249 Whirlpool Spark Module
6Regulator
798007192 Whirlpool Cover Model
8Spreader, Flame
9SCREW
10Burner, Oven
12Harness, Switch
13Valve, Oven
14W10837731 Whirlpool Screw Assembly
15Valve, Burner (10,500 BTU (1))
15Valve, Burner (4)
16WPW10277003 Whirlpool Screw
1798013574 Whirlpool Oven Manifold Pipe
21W10918546 Whirlpool Oven Range Igniter
22Washer, Valve (4)
23WPW10469571 Whirlpool Gas Tubing
2598007410 Whirlpool Oven Mounting Bracket
2698007431 Whirlpool Oven Fitting
2798013634 Whirlpool Oven Screw
28Screw, Ground
31Tubing, Inlet
32Fitting 1/4to9/16
34W11676351 Whirlpool Screw
35W10837674 Whirlpool Screw
36WPW10209656 Whirlpool Surface Ignitor
36WPW10209657 Whirlpool Oven Surface Igniter
37LP Spud Kit (For Use With LP)
37Natural Spud Kit (For use with Natural Gas)
37WPW10278150 Whirlpool Clip Assembly
37FOLLOWING PARTS NOT ILLUSTRATED
