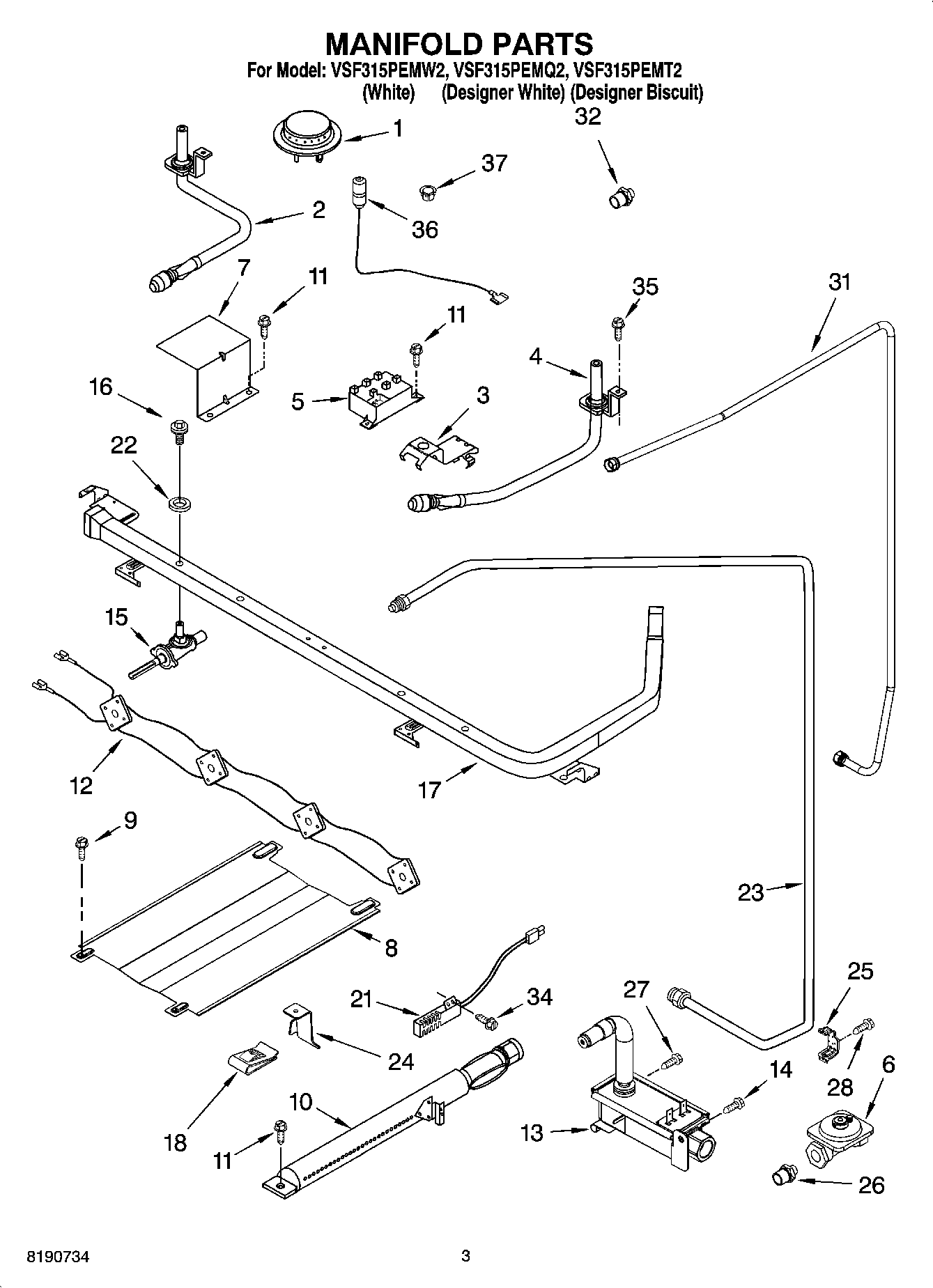

VSF315PEMT2 03 – MANIFOLD PARTSadmin2025-04-26T13:02:17+00:00VSF315PEMT2 03 – MANIFOLD PARTS
Products
| Position | Product |
|---|
| 1 | Burner, Top (Right) |
| 1 | Burner, Top (Left) |
| 2 | WP6610243 Whirlpool Venturi |
| 3 | Brkt., Venturi (4) |
| 4 | WP6610244 Whirlpool Venturi Assembly |
| 5 | W11590249 Whirlpool Spark Module |
| 6 | 98015762 Whirlpool Regulator |
| 7 | 98007192 Whirlpool Cover Model |
| 8 | 98015099 Whirlpool Oven Burner Baffle |
| 9 | SCREW |
| 10 | WP98012138 Whirlpool Oven Burner |
| 12 | WPW10361492 Whirlpool Wire Harness |
| 13 | Valve, Oven |
| 14 | W10837731 Whirlpool Screw Assembly |
| 15 | Valve, Burner (10,500 BTU (1)) |
| 15 | Valve, Burner (4) |
| 16 | WPW10277003 Whirlpool Screw |
| 17 | 98013574 Whirlpool Oven Manifold Pipe |
| 18 | 98009179 Whirlpool Oven Nut |
| 21 | W10918546 Whirlpool Oven Range Igniter |
| 22 | Washer, Valve (4) |
| 23 | WPW10469571 Whirlpool Gas Tubing |
| 24 | 98013314 Whirlpool Oven Support Bracket |
| 25 | 98007410 Whirlpool Oven Mounting Bracket |
| 26 | 98007431 Whirlpool Oven Fitting |
| 27 | 98013634 Whirlpool Oven Screw |
| 28 | Screw, Ground |
| 31 | Tubing, Inlet |
| 32 | Fitting 1/4to9/16 |
| 34 | W11676351 Whirlpool Screw |
| 35 | W10837674 Whirlpool Screw |
| 36 | WPW10209656 Whirlpool Surface Ignitor |
| 36 | WPW10209657 Whirlpool Oven Surface Igniter |
| 37 | Natural Spud Kit (For use with Natural Gas) |
| 37 | FOLLOWING PARTS NOT ILLUSTRATED |
| 37 | WPW10278150 Whirlpool Clip Assembly |
| 37 | LP Spud Kit (For Use With LP) |
