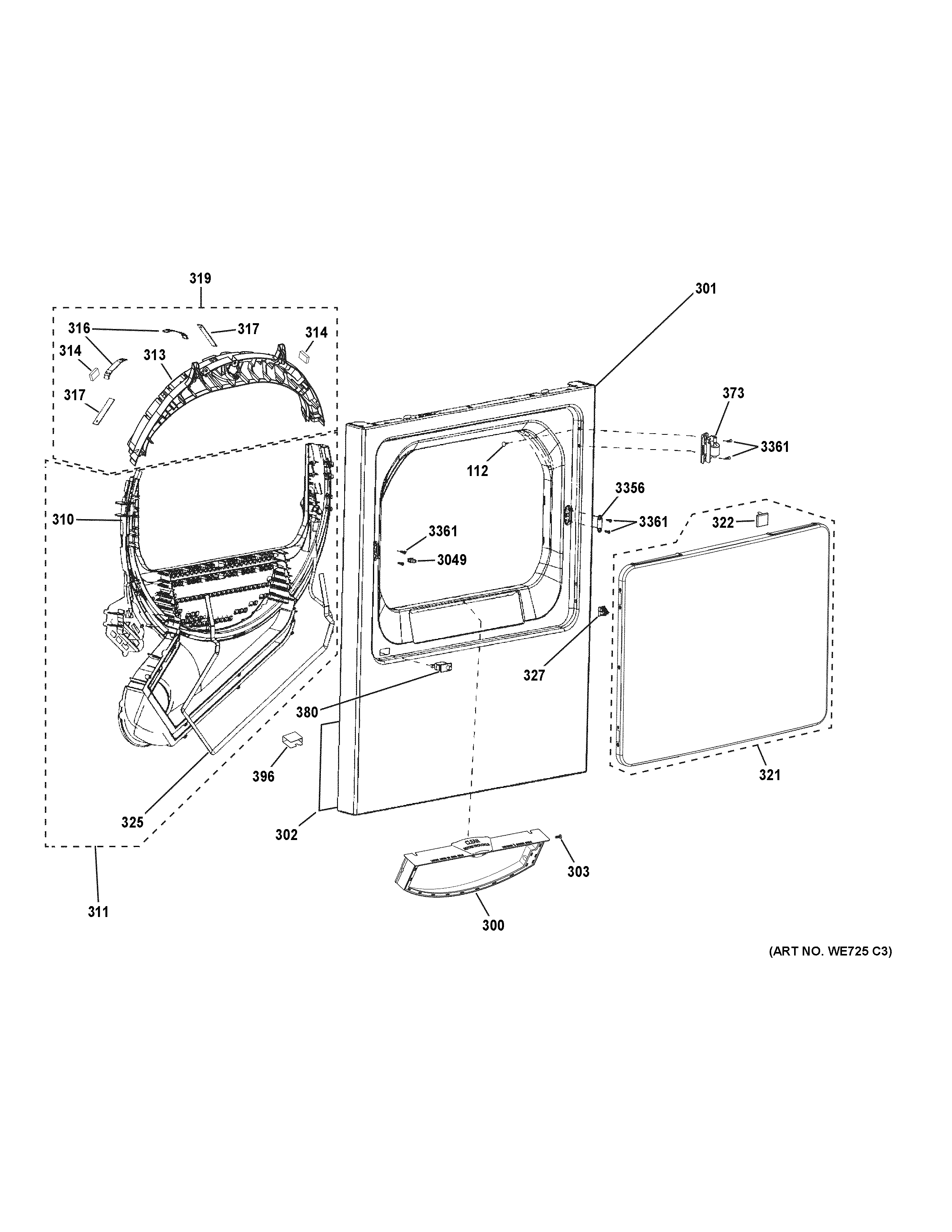

VTD56EASV0WB FRONT PANEL & DOOR

VTD56EASV0WB FRONT PANEL & DOOR

Written by

in

VTD56EASV0WB FRONT PANEL & DOOR

Products

PositionProduct
112WE1M934 GE Plug Button White
300LINT FILTER
301WE20X25260 GE Front Panel White
302WE01X29060 GE Heat Shield
303WE2M282 GE Screw 6-18 B B1Q1 3/4 S ZN
310DUCT TRAP SLIDES
311DUCT TRAP
313WE03X23956 GE Dryer Top Bearing Slides
314WE09X27635 GE Felt Top Bearing
316WE03X37320 GE Dryer Bearing Slide 2-Pack
317WE03X37319 GE Dryer Bearing Slide 2-Pack
319BEARING TOP ASM
321WE10X31003 GE Door Assembly
322CAP DOOR
325WE1M825 GE Washer 39 Inch Dryer Gasket Seal
327WE01X31004 GE Latch
373WE01X31005 GE Hinge Assembly
380WE04X28977 GE Washer Dryer Door Switch
396WE01X23880 GE Shield Switch
3049WE01X30999 GE Strike
3356WE1M569 GE Strike Plate
3361WE2M302 GE Screw
