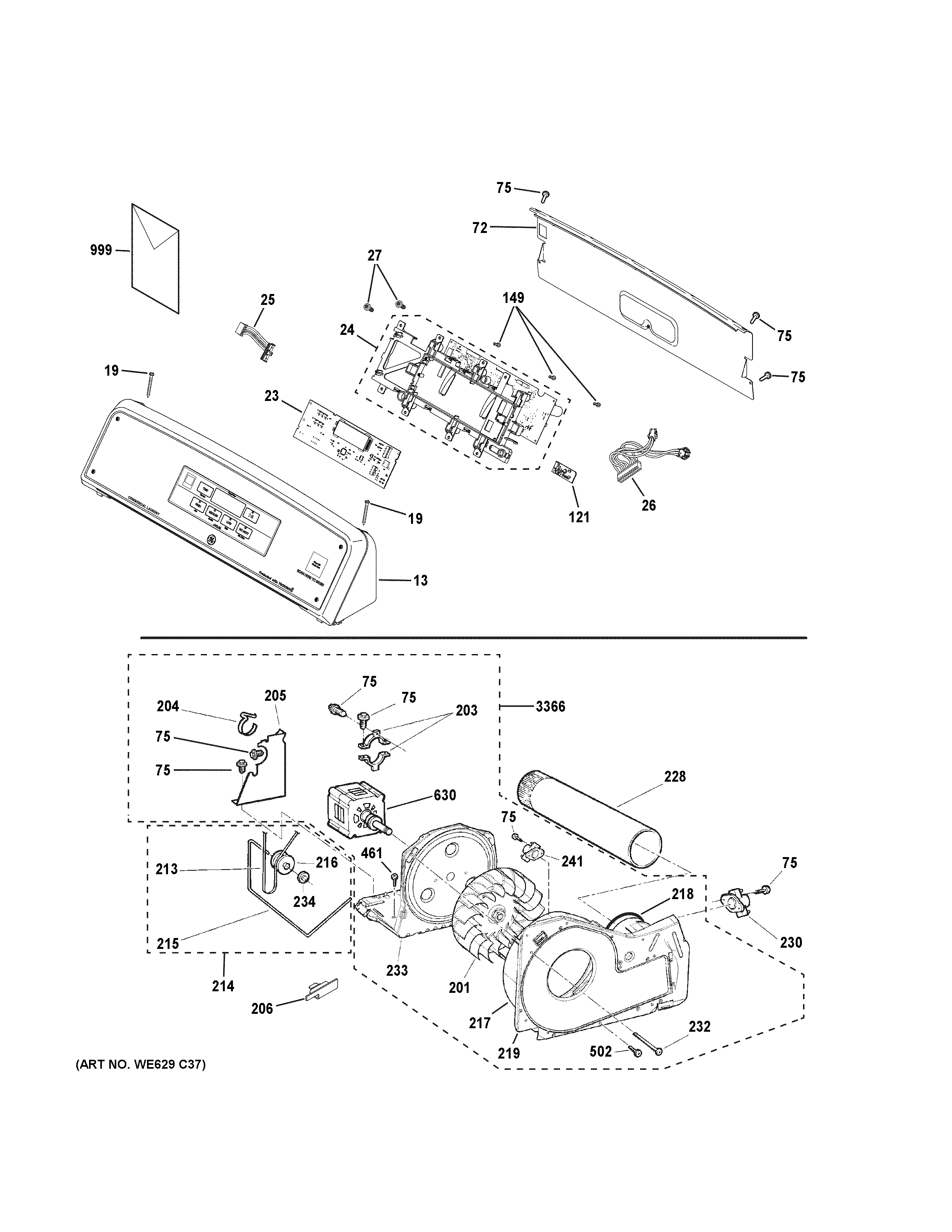

VTD56GASV0WB BACKSPLASH, BLOWER & MOTOR ASSEMBLY

Products

PositionProduct
13CONTROL PANEL COMM TL DRYER WHITE
19WR01X10634 GE Refrigerator Screw 8-18 AB 13/4 S HXW
23USER INTERFACE BOARD
24MAIN CONTROL BOARD & CHASSIS W/INSTRUCTI
25UI TO MC JUMPER HARNESS
26COIN BOX JUMPER HARNESS
27GEN WH02X10381
72REAR PANEL
75WE01X25535 GE Screw
121WH22X33297 GE Wifi Board with Instructions
149WR01X10196 GE Refrigerator Screw 8-18 HID02
201WH16X34317 GE Blower Wheel
203WE13X30697 GE Washer Motor Strap
204WE1X921 GE Motor Strap
205WE13M39 GE Motor Support
206BRACKET IDLER
213WE03X29897 BELT DRIVE
214IDLER ARM
215WE03X20434 GE Washer Idler Arm
216PULLEY
217WE13X29444 GE Blower Plate
218WE09X27636 GE Exhaust Blower Gasket
219WE13X29560 GE Blower Housing
228WE01X23893 GE Exhaust Duct
230THERMOSTAT
232WE2M202 GE Screw
233WE03X23858 GE Motor Plate
234GEN WE2M96?
241WE4M448 GE Washer Thermistor
461WZ5X158D GE Screw Package of 12
502WE2M174 GE Screw #10
630KIT MOTOR DRIVE AND PULLEY 27
999PM INSTALL INSTRUCTIONS
999PM OWNERS MANUAL
999PM MINI MANUAL AND WIRING
3366WE17X23056 GE Blower and Motor Assembly
