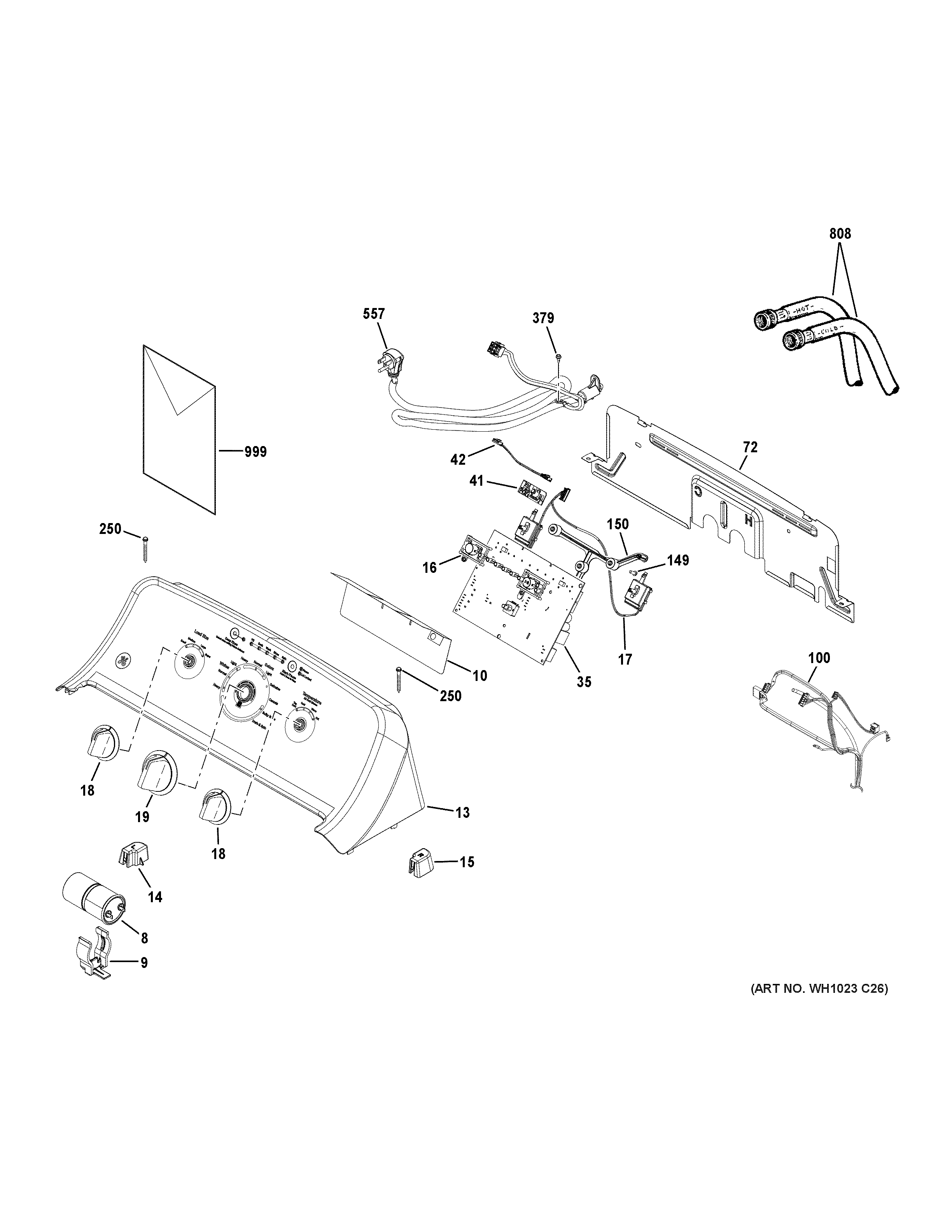

VTW525ASR0WB CONTROLS & BACKSPLASH

Products

Position	Product
8	WH12X27614 GE Capacitor Bracket Kit
10	WH01X24396 GE Control Board Shield
13	CONTROL PANEL WHITE
14	WH16X24476 GE Washer Right Backsplash Support
15	WH16X24477 GE Left Backsplash Support
16	BUTTON TREE
17	SELECTOR SWITCH 2
18	WH01X32801 GE Washer Options Knob
19	WH01X32802 GE Washer Cycle Knob
35	WH22X32817 GE Main Control Board & Instructi
41	WH22X33297 GE Wifi Board with Instructions
42	WE08X29733 GE WiFi Jumper Harness
72	WH10X28195 GE Rear Control Panel
100	WH19X27495 GE Main Green Harness
149	WR01X10196 GE Refrigerator Screw 8-18 HID02
150	PCB BRACKET
250	WR01X10634 GE Refrigerator Screw 8-18 AB 13/4 S HXW
379	WE02X10107 GE Screw 10-32 GX HXW 7/16 S
557	WH08X28843 GE Power Cord
808	INLET HOSES
999	PRINTED AND ONLINEQUICK OWNERS MANUAL
999	PM MINI MANUAL AND WIRING
