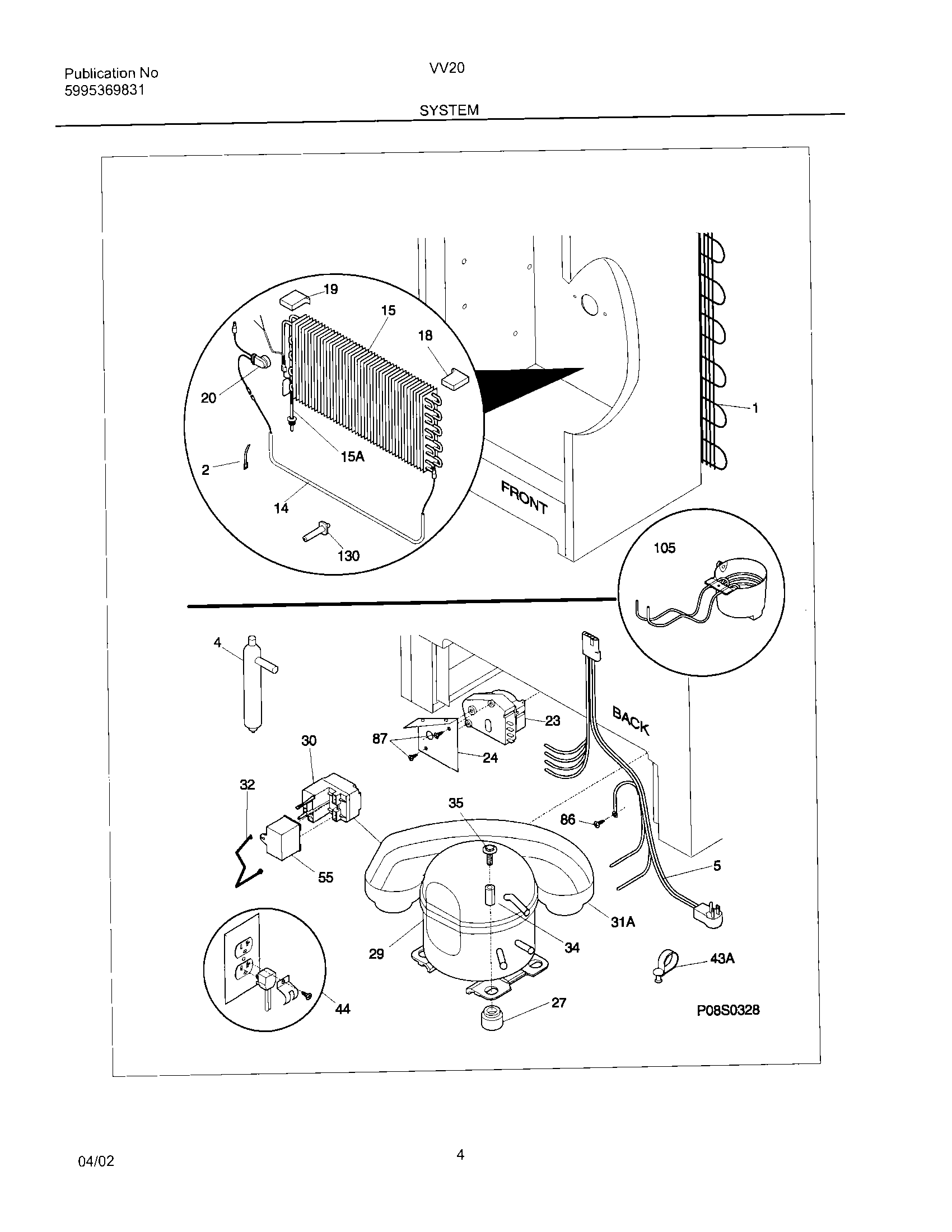

VV2014 05 – SYSTEM

Products

Position	Product
	SPACER, COMPRESSOR
1	5300083897 Frigidaire Refrigerator Condenser P1 O/S2
2	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
4	5303305677 Frigidaire Replacement Filter Dryer Filters
5	WCI 216825500
14	216730700 Frigidaire Refrigerator Defrost Heater
15	297414901 Frigidaire Refrigerator Evaporator
15A	WCI 216751000
18	WCI 216727600
19	WCI 216727700
20	297216600 Frigidaire Refrigerator Defrost Thermostat
23	5304518034 Frigidaire Refrigerator Defrost Timer
24	WCI 08016580
27	216498900 Frigidaire Refrigerator Grommet
29	5304478809 Frigidaire Refrigerator Compressor Assembly
30	WCI 216649303
32	218740800 Frigidaire Refrigerator Clamp
34	SLEEVE-COMPRESSOR
35	SCREW, LND HEX SEMS, 1/4-28 UNFX, COMPRESSOR
43A	297315800 Frigidaire Refrigerator Clip
44	RETAINER POWER CORD (NOT ORIGINAL EQUIPMENT. CUSTOMER PU
55	5304464438 Frigidaire Compressor Run Capacitor
86	216036601 Frigidaire Refrigerator Screw
87	SCREW
105	216999900 Frigidaire Refrigerator Cup-Drain
130	297244700 Frigidaire Refrigerator Support
