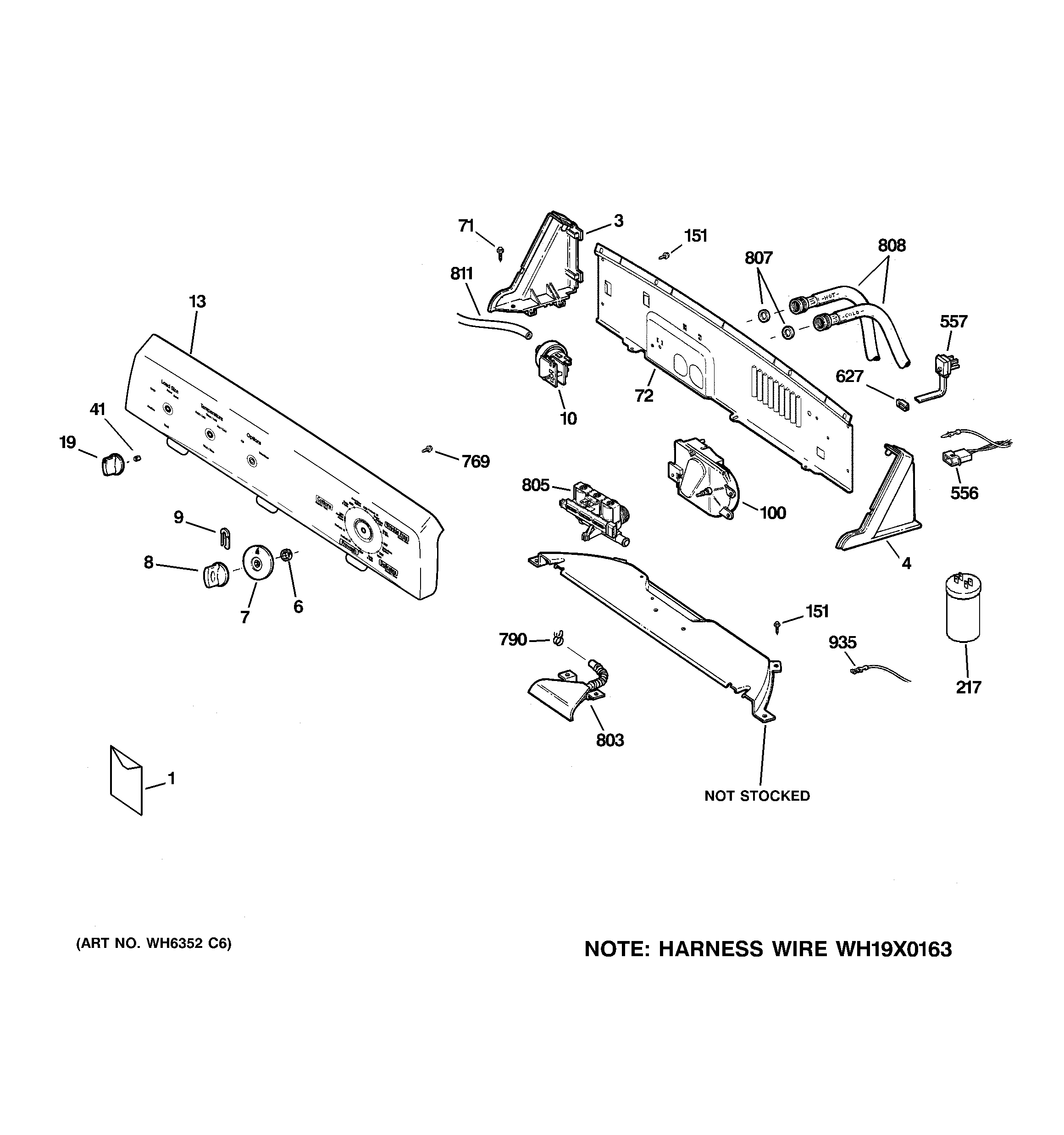

VVSR1030H7WO CONTROLS & BACKSPLASH

VVSR1030H7WO CONTROLS & BACKSPLASH

Written by

in

VVSR1030H7WO CONTROLS & BACKSPLASH

Products

PositionProduct
1GEN 31-15441
1GEN 39-90320
1GEN 31-16531
3WH42X10679 GE White Left Hand Endcap
4WH42X10678 GE End Cap Right Hand White
6WH02X10093 GE Washer Compression Ring
7WH11X10047 GE Washer Timer Dial
8WH01X10314 GE Control Knob Assembly
9WH1X2117 GE Timer Knob Spring Clip
10GEN WH12X10378
13GEN WH42X10751
19KNOB & CLIP ASM
41GEN WH01X10106
71WH2X1205 GE Screw 8-18
72GEN WH46X10146
100WH12X10337 GE Timer
151WH02X10126 GE Screw 8-18 B 1HW 1/2 SN
217WH12X10462 GE Washer Capacitor
556GEN WH12X0497
557GEN WH19X0311
627GEN WH12X10208
769WR01X10196 GE Refrigerator Screw 8-18 HID02
769WB1X500D GE Oven Screw Package
790WH1X2036 GE UNIX Clamp
803HOSE & WATER INLET
805WH13X10026 GE Water Valve Triple
807WH2X42D GE Washer Pack of 12
808WH41X10207 GE Washer Rubber Inlet Hose 2 Pack 4'
811WH41X365 GE Washer Water Level Pressure Switch HOSE
935GEN WD01X1434
