VWSR4160G3WW CONTROLS & BACKSPLASH

VWSR4160G3WW CONTROLS & BACKSPLASH

Written by

in

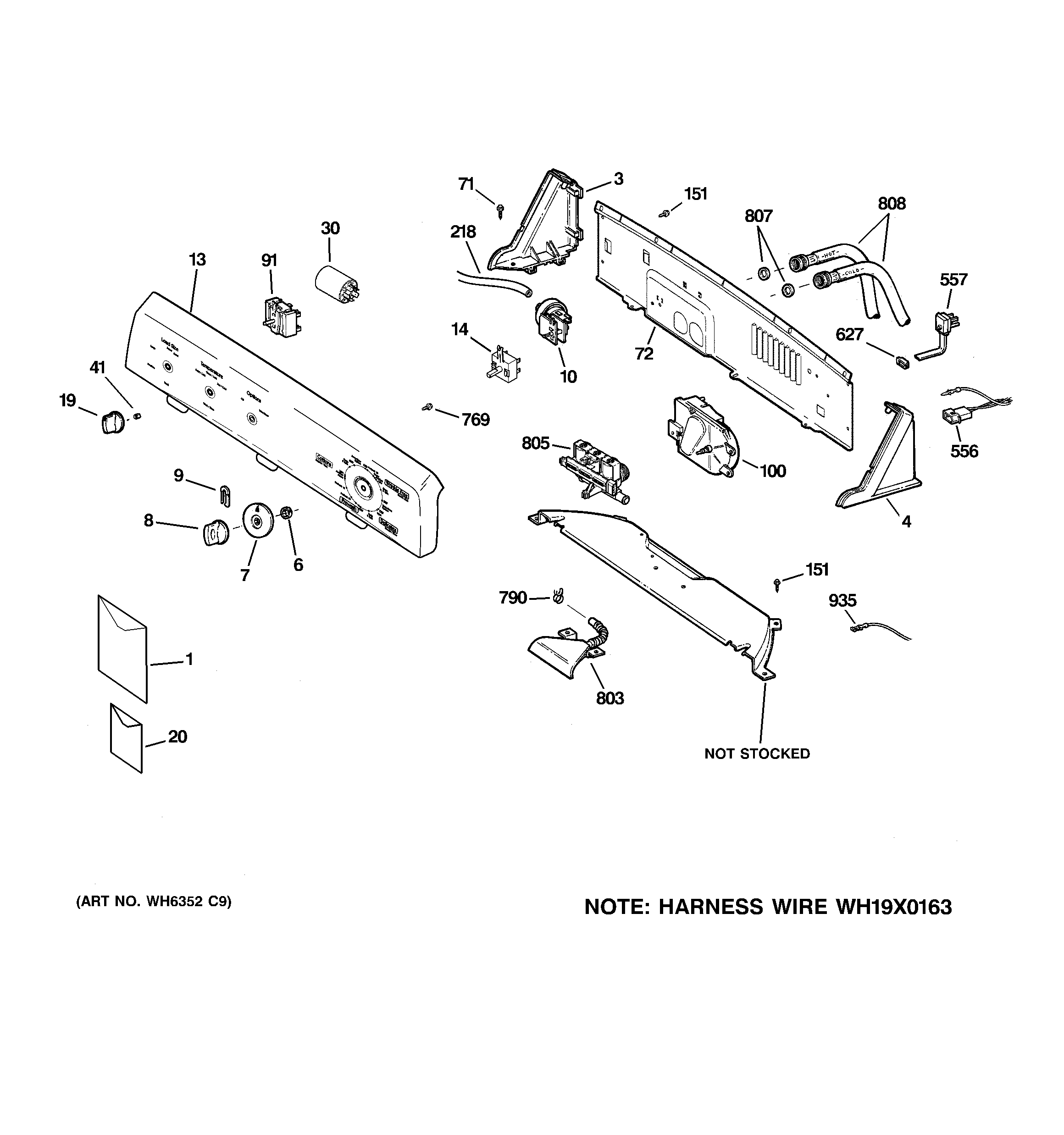

VWSR4160G3WW CONTROLS & BACKSPLASH

Products

PositionProduct
1GEN 39-90301
1GEN 49-90301
1GEN 31-16579
1GEN 31-15441
3WH42X10679 GE White Left Hand Endcap
4WH42X10678 GE End Cap Right Hand White
6WH02X10093 GE Washer Compression Ring
7WH11X10047 GE Washer Timer Dial
8WH01X10314 GE Control Knob Assembly
9WH1X2117 GE Timer Knob Spring Clip
10WH12X10301 GE Washer Pressure Switch
13GEN WH42X10676
14GEN WH12X1007
19KNOB & CLIP ASM
20GEN WH49X10041
30WH12X10408 GE Power Line Filter
41GEN WH01X10106
71WH2X1205 GE Screw 8-18
72GEN WH46X10146
91WH12X10498 GE Washer Rotary Switch
100GEN WH12X10422
151WH02X10126 GE Screw 8-18 B 1HW 1/2 SN
218WR02X11607 GE Refrigerator Wire Tie
556GEN WH12X0497
557GEN WH19X0311
627GEN WH12X10208
769WR01X10196 GE Refrigerator Screw 8-18 HID02
769WB1X500D GE Oven Screw Package
790WH1X2036 GE UNIX Clamp
803HOSE & WATER INLET
805WH13X10026 GE Water Valve Triple
807WH2X42D GE Washer Pack of 12
808WH41X10207 GE Washer Rubber Inlet Hose 2 Pack 4'
935GEN WD01X1434
