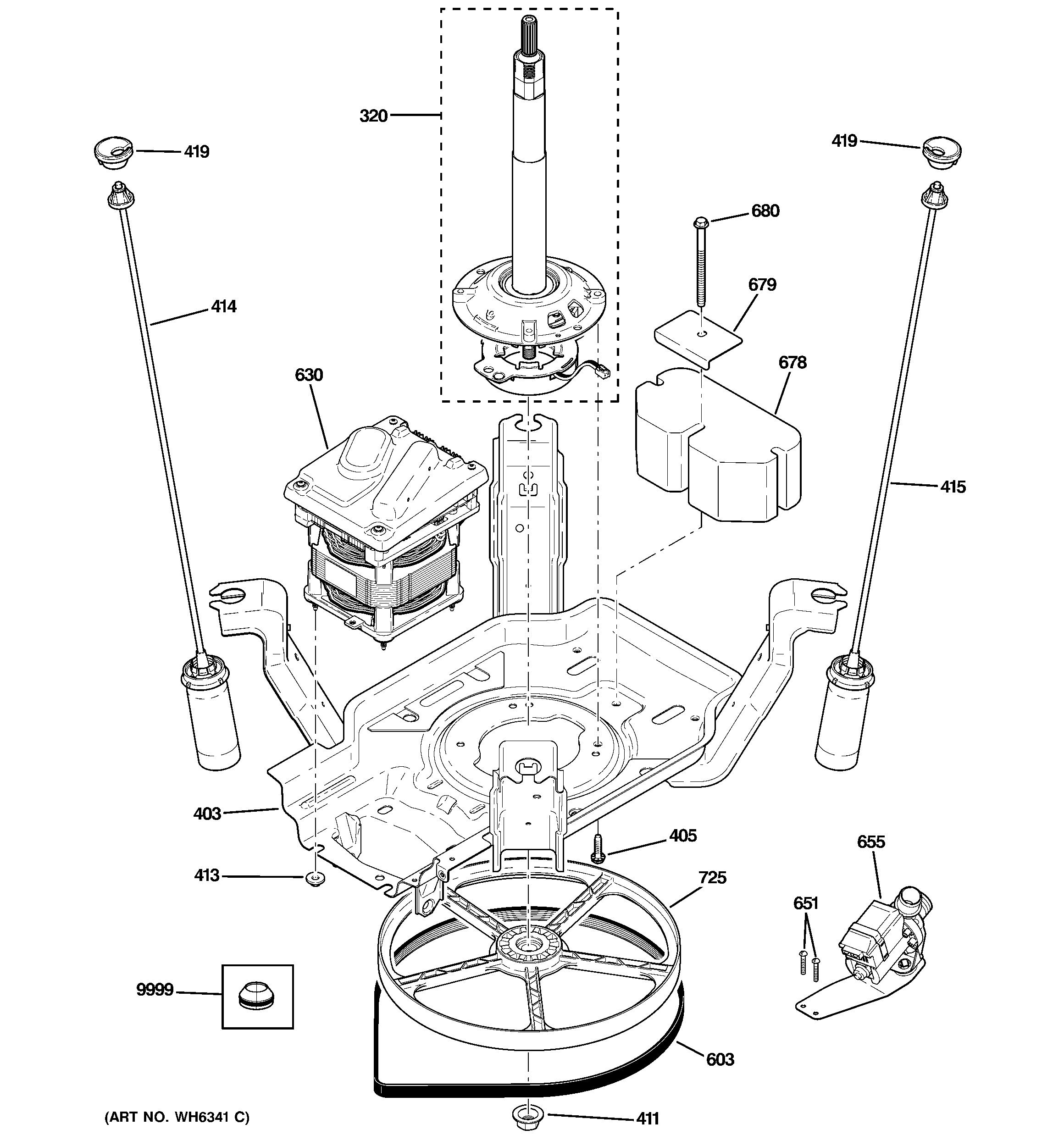

VWSR4160G3WW SUSPENSION, PUMP & DRIVE COMPONENTS

VWSR4160G3WW SUSPENSION, PUMP & DRIVE COMPONENTS

Written by

in

VWSR4160G3WW SUSPENSION, PUMP & DRIVE COMPONENTS

Products

PositionProduct
320SHAFT & MODE SHIFTER ASM
403GEN WH17X10016
405WH2X1201 GE 1/4-20 Screw
411WH2X1203 GE Pulley Nut
413GEN WH02X10233
414ROD/SPRING BLK
415WH16X10057 GE Washer Rod & Spring Assembly Green
419WH01X10001 GE Washer Support Socket Tub Suspension Rod
603WH01X10302 GE Washer 6 Rib Belt
630GEN WH20X10051
651WH02X10123 GE Screw 1/4-20 TPT
655WH23X10030 GE Washer Drain Pump
678GEN WH01X10303
679GEN WH01X10304
680GEN WH02X10235
725WH07X10019 GE Drive Pulley
9999WX05X20641 GE Tool Service Belt Kit
