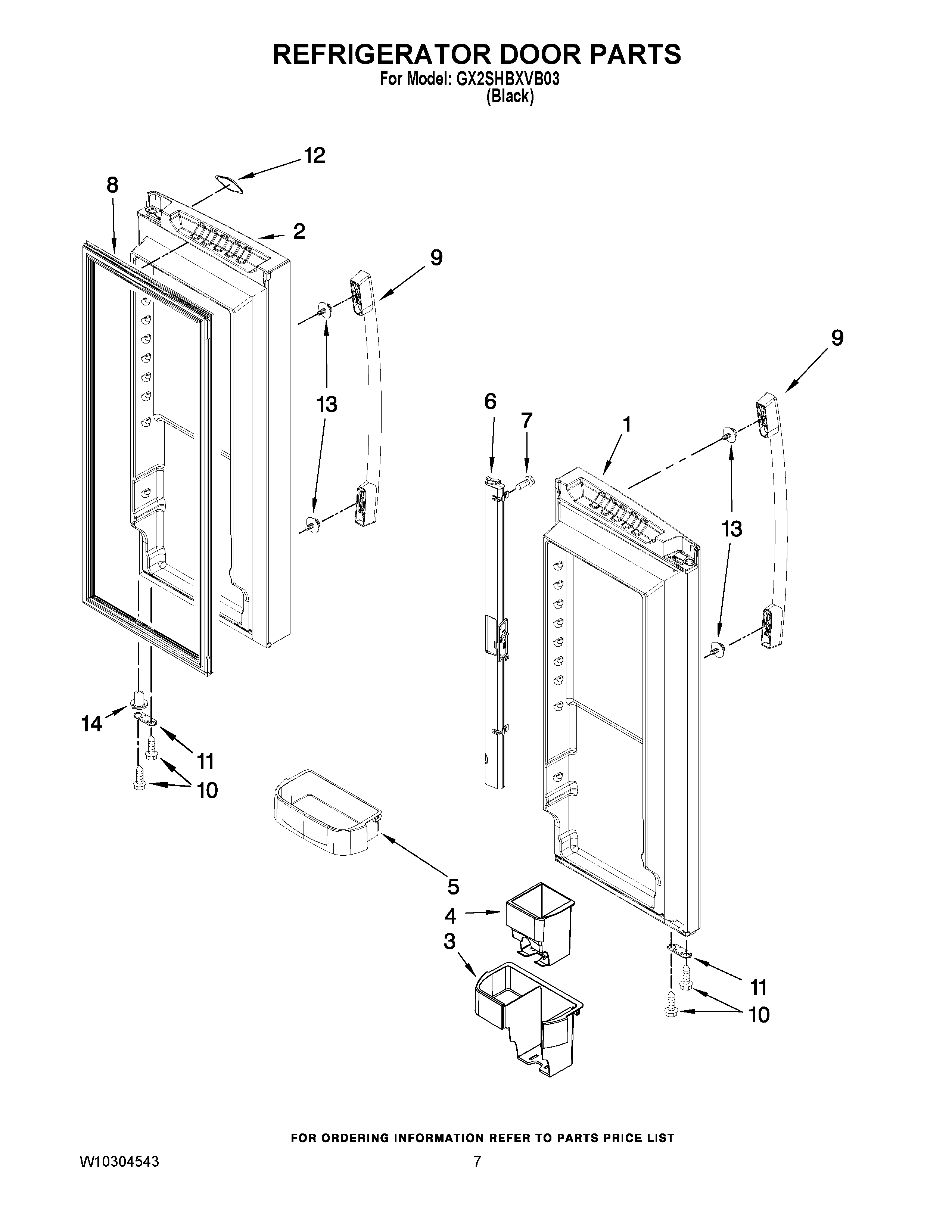

w10304543a 05 – REFRIGERATOR DOOR PARTS

w10304543a 05 – REFRIGERATOR DOOR PARTS

Written by

in

w10304543a 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOOR, LEFT (BLACK)
2DOOR, RIGHT (BLACK)
3BUCKET-CAN DISPNSR
4WP13005401SP Whirlpool Can Rack
5WPW10351081 Whirlpool Refrigerator Cantilever Bin
5WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
6WP12722803B Whirlpool Door Guide
7W11311945 Whirlpool Refrigerator Screw
8GASKET-FIP
8W10830289 Whirlpool Refrigerator Gasket FIP
9W11351146 Whirlpool Refrigerator Handle
10WP98165 Whirlpool Screw
11W11708403 Whirlpool Door Stop
12Nameplate
13WP12992902 Whirlpool Refrigerator Screw
14WP67003639 Whirlpool Refrigerator Closer
