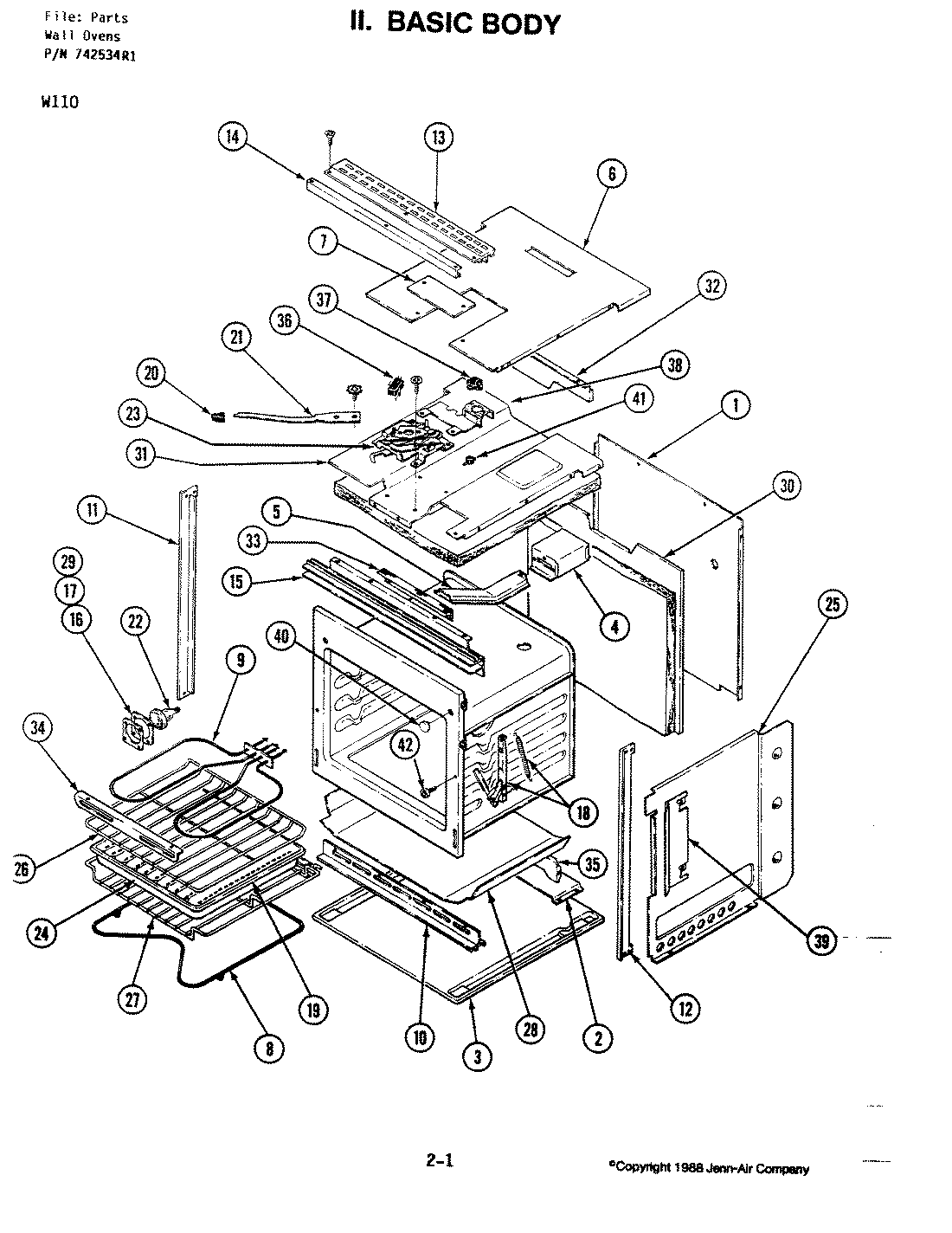

| 1 | BACK, MAIN |
| 2 | BAFFLE BASE |
| 3 | BASE, MAIN |
| 4 | BOX, VENT |
| 5 | CHANNEL, VENT ASSY |
| 6 | COVER BOX |
| 7 | COVER LOCK |
| 8 | ELEMENT, BAKE |
| 9 | ELEMENT, BROIL |
| 10 | EXTRUSION, BOTTOM |
| 11 | MAY 7750P016-60 |
| 11 | EXTRUSION, SIDE-L |
| 12 | EXTRUSION, SIDE-R |
| 12 | MAY 7750P017-60 |
| 13 | EXTRUSION, TOP |
| 14 | EXTRUSION, TOP |
| 15 | EXTRUSION, VENT |
| 15 | MAY 7756P023-60 |
| 16 | GASKET,LAMPGUARD |
| 17 | GLASS, LAMPGUARD |
| 18 | HINGE, OVEN DOOR |
| 18 | HINGE,OVEN DOOR |
| 19 | INSERT, BROILER PAN |
| 20 | KNOB, DOOR LOCK |
| 21 | LEVER LOCK |
| 22 | LIGHT-OVEN |
| 23 | LOCK, ASSEMBLY DOOR |
| 24 | PANEL, SIDE LF |
| 24 | PAN, BROILER |
| 25 | PANEL, SIDE RT |
| 26 | RACK, OVEN |
| 27 | RACK OVEN |
| 28 | RETAINERS |
| 29 | RETAINER, LAMPGUARD |
| 30 | RETAINER, REAR |
| 31 | RETAINER, TOP |
| 32 | SHIELD, AIR |
| 33 | SHIELD, TERMINAL |
| 34 | MAY Y790262 |
| 35 | SUPPORT, LOWER |
| 36 | SWITCH, DOOR LOCK |
| 37 | SWITCH, HI-LIMIT |
| 38 | BRACKET, HI-LIMIT SWITCH |
| 39 | BAFFLE, SIDE |
| 40 | BUMPER, DOOR |
| 41 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 41 | RECEPTACLE, OVEN LIGHT |
| 41 | MAY 7403P001-60 |
| 41 | MAY 8118P245-60 |
