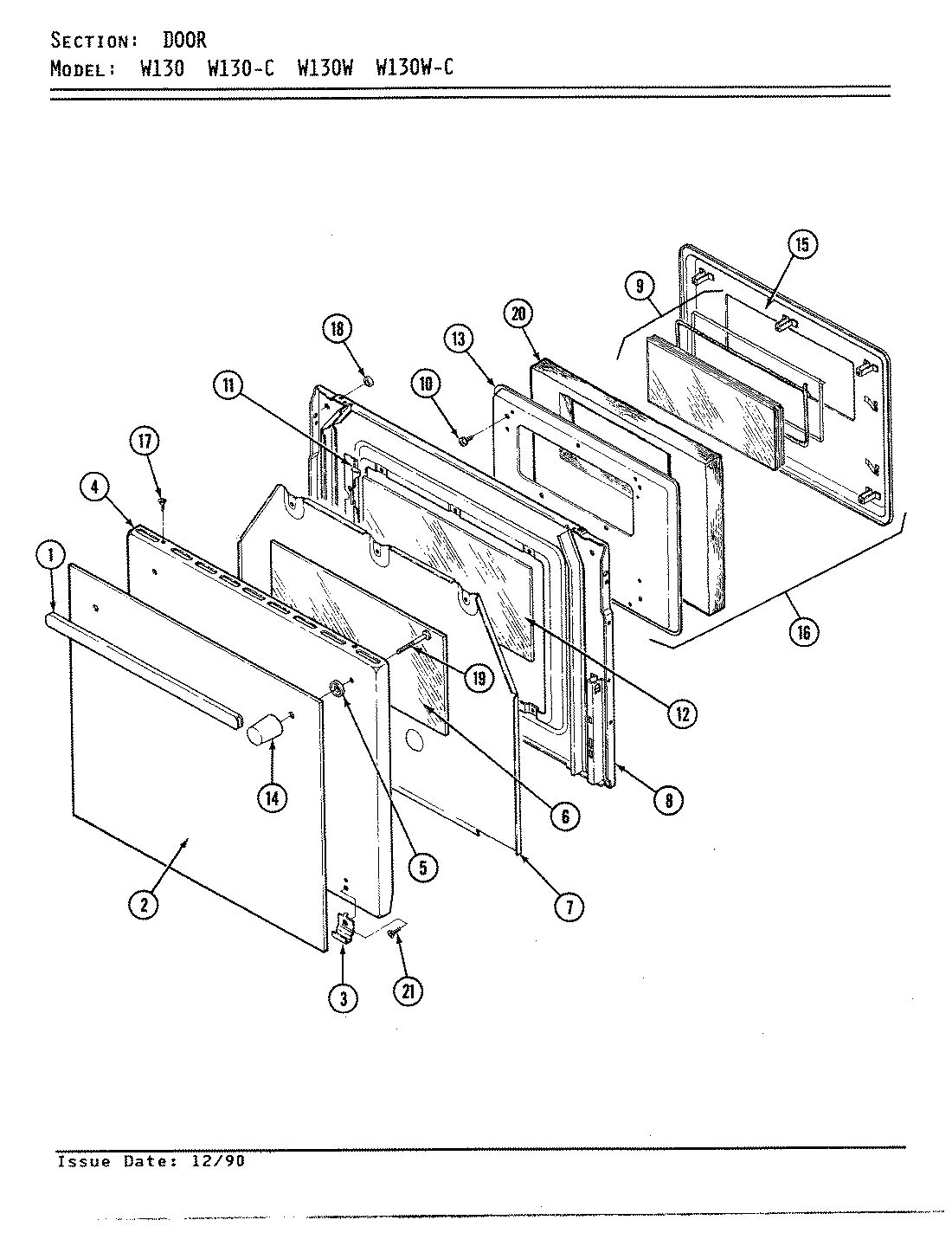

W130 03 – DOOR

Products

Position	Product
1	HANDLE, DOOR (BLK)
2	GLASS, DOOR (BLK)
3	MAY 8270P010-60
3	MAY 3819F010-71
3	CLIP, GLASS RETAINER (BLACK)
4	PANEL (BLACK)
5	SPACER, GLASS
6	GLASS, CLEAR
7	BAFFLE DOOR
8	MAY 2402W149-15
8	MAY 2402W164-15
8	MAY 2402W186-19
8	LINING, OVEN DOOR
8	MAY 8114P274-60
8	MAY 7107P017-60
9	MAY 5700A091-60
9	MAY 7112P051-60
9	MAY 7902S303-60
10	SCREWS
11	RETAINER, GLASS
12	GLASS
13	PAD INNER OVEN DOOR
14	CAP, END (BLK)
14	MAY 7744P042-60
15	MAY 2410W041-19
15	MAY 2410W041-15
16	MAY 2410A041-15
16	MAY 2410A041-19
17	WP7103P114-60 Whirlpool Snap Nut
17	SCREW (8ABX1/2“-BLK)
18	BUMPER, DOOR
18	MAY 8003P009-60
19	MAY 7101P012-60
19	SCREW, DOOR HANDLE
20	MAY 7002P117-60
21	SCREW
