W130 05 – OVEN

W130 05 – OVEN

Written by

in

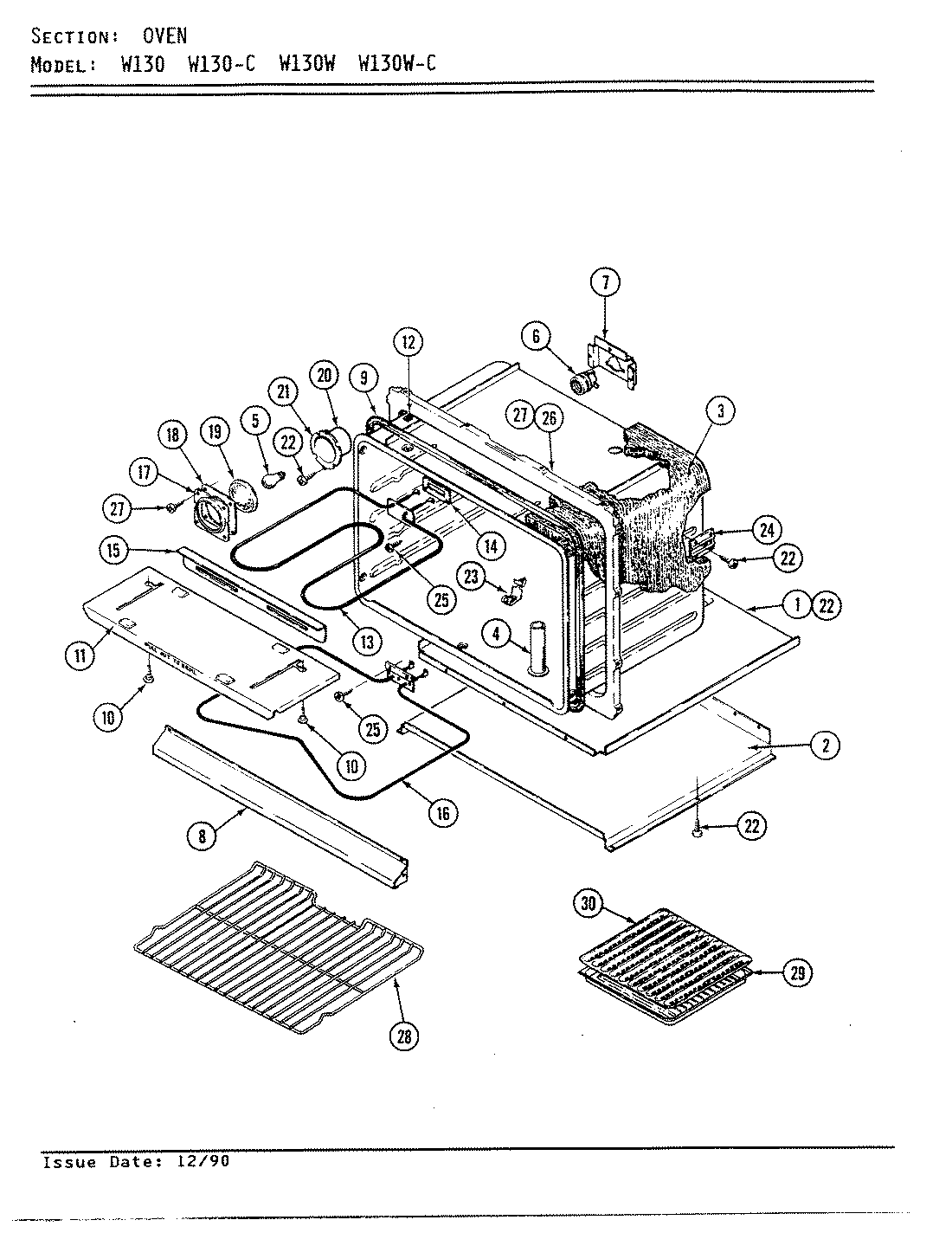

W130 05 – OVEN

Products

PositionProduct
1RETAINER, INSULATION BOTTOM
2SHIELD, BOTTOM
3MAY 4804F001-60
3MAY 7002P046-60
4MAY 7505P041-60
4TUBE, OVEN VENT
5LIGHT-OVEN
6RECEPTACLE, LAMP
7BRACKET, LAMP RECEPTACLE
8SHIELD ASSY., LOWER (BLACK)
8MAY 3604W155-70
8WP98008545 Whirlpool Screw
9GASKET, OVEN
10SCREW, BROIL SHIELD
11SHIELD, BROIL
12MAY 7103P062-60
13MAY 8004P013-60
13WPY04000048 Whirlpool Bake Element
14GASKET
15MAY Y790262
16WPY04000041 Whirlpool Bake Element
17RETAINER, LAMP GUARD
18GASKET, LAMP RETAINER
19GLASS, LAMPGUARD
20HOUSING, LAMP
21GASKET,LAMPGUARD
22MAY 7101P061-60
23CLIP, THERMOSTAT BULB
24SUPPORT OVEN REAR
25MAY 7101P064-60
26FRONT, OVEN UPPER
26MAY 7101P005-60
27WP74003976 Whirlpool Screw
28RACK, OVEN
29PAN, BROILER
30INSERT, BROILER PAN
