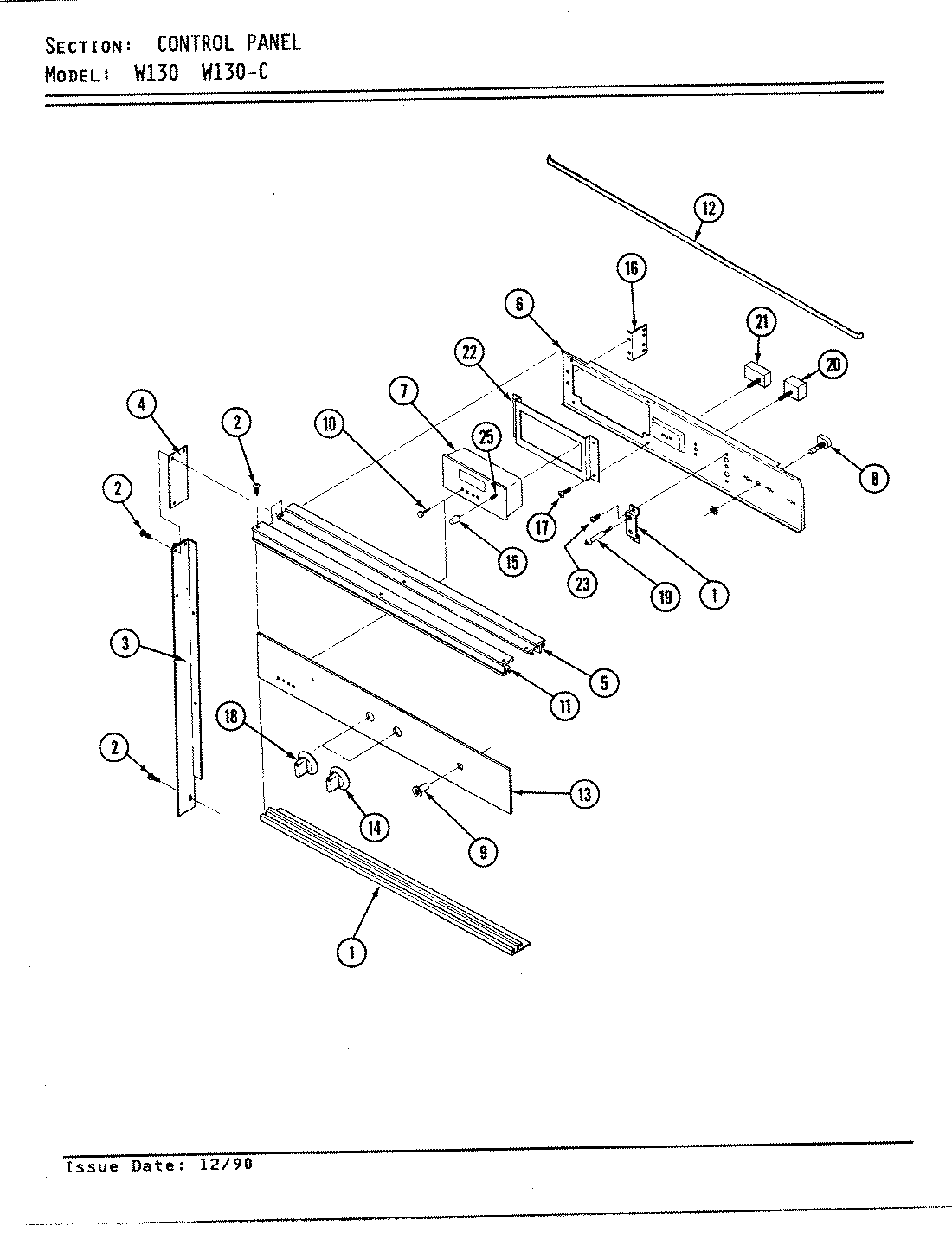

W130-C 02 – CONTROL PANEL (BLK)

Products

Position	Product
1	TRIM, CONTROL (BTM)
2	SCREW (8ABX1/2“-BLK)
3	TRIM, SIDE (LT)
3	TRIM, SIDE (RT)
4	TRIM END CAP
5	TRIM, TOP
6	PLATE, SWITCH MTG
7	MAY 7601P123-60
7	MAY 7601P197-60
8	MAY 7403P104-60
9	SLEEVE, LAMP SWITCH
10	BUTTON, CLOCK
11	TRIM, TOP (FRT)
12	EXTRUSION, FILLER TRIM
13	MAY 7912P048-60
14	MAY 7739P024-60
15	KNOB, CLOCK
16	BRACKET, SWITCH PLATE
17	MAY 7101P061-60
18	MAY 7735P029-60
19	LIGHT, INDICATOR
20	SWITCH, SELECTOR
20	MAY 7101P280-60
21	THERMOSTAT
21	MAY 7101P279-60
22	BRACKET CLOCK
23	WP59002061 Whirlpool Microwave Screw
24	BRACKET, LIGHT SIGNAL
25	MAY 8312P017-60
