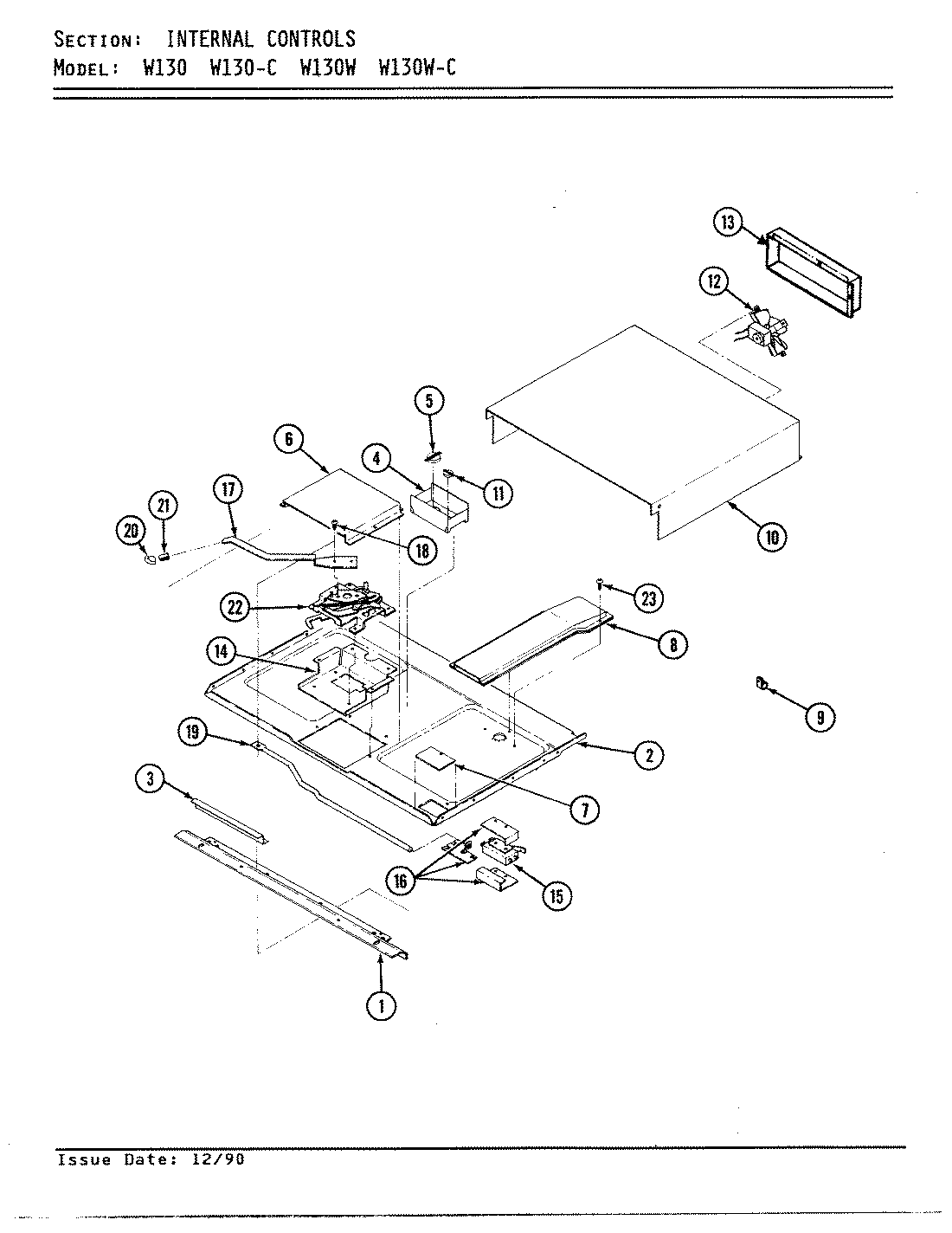

W130-C 04 – INTERNAL CONTROLS

Products

Position	Product
1	FRONT, BURNER BOX BOTTOM
1	WP98008545 Whirlpool Screw
2	MAY 4011F180-80
2	MAY 7101P104-60
2	MAY Y703357
3	SHIELD, TERMINAL
4	SUPPORT, THERMAL DISC
4	WP59002061 Whirlpool Microwave Screw
5	MAY 7403P199-60
6	COVER, CATCH ASSY.
7	COVER, LOCK SWITCH
8	MAY 4006W087-45
9	MAY 7111P002-60
10	HOUSING, FAN
11	SWITCH, THERMAL DISC
12	MAY 7401P016-60
12	RESISTOR ASSY.
12	FAN ASSY.
12	MAY 8008P014-60
12	MAY 7417P002-60
13	COVER FAN
14	SUPPORT, LATCH ASSY.
14	MAY 3807F408-45
15	MAY 7003P019-60
15	MAY 7003P039-60
15	MAY 7403P045-60
16	SUPPORT, LOCK SWITCH
16	MAY 7101P031-60
17	LEVER, LOCK
17	MAY 7101P018-60
18	BOLT
19	LINK, LOCK SWITCH
20	KNOB, DOOR LOCK
21	CLIP, LATCH HANDLE
22	CATCH ASSY.
23	MAY Y702750
23	MAY 7101P061-60
