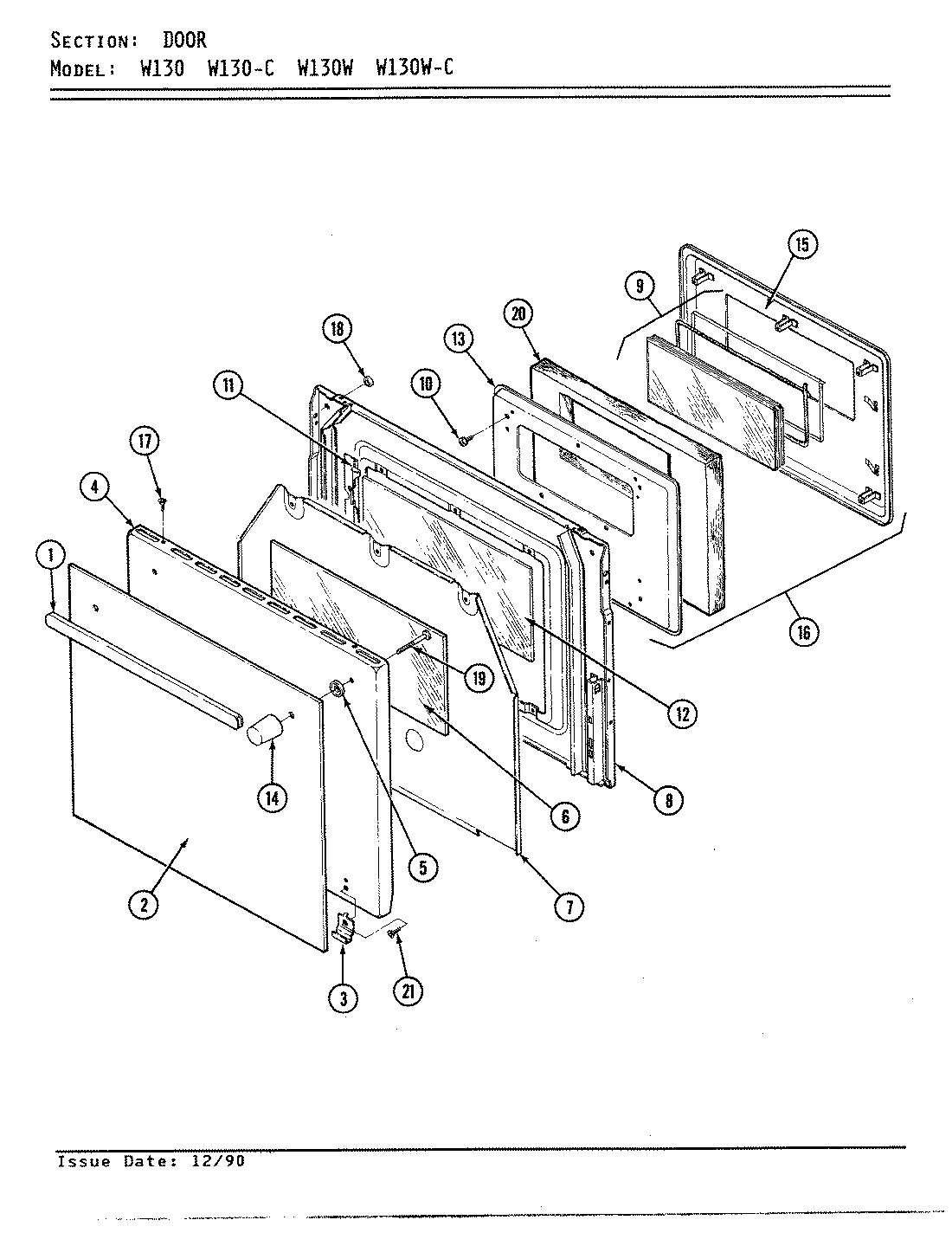

W130W 03 – DOOR
Written by
in
W130W 03 – DOOR
Products
Position
Product
1
MAY 7701P085-60
2
MAY 7902P298-60
3
MAY 8270P010-60
3
CLIP, GLASS RETAINER (BLACK)
3
MAY 3819F010-71
4
MAY 2401W049-71
5
SPACER, GLASS
6
GLASS, CLEAR
7
BAFFLE DOOR
8
MAY 2402W186-19
8
LINING, OVEN DOOR
8
MAY 2402W164-15
8
MAY 8114P274-60
8
MAY 7107P017-60
8
MAY 2402W149-15
9
MAY 5700A091-60
9
MAY 7902S303-60
9
MAY 7112P051-60
10
SCREWS
11
RETAINER, GLASS
12
GLASS
13
PAD INNER OVEN DOOR
14
CAP, END (BLK)
14
MAY 7744P042-60
15
MAY 2410W041-19
15
MAY 2410W041-15
16
MAY 2410A041-15
16
MAY 2410A041-19
17
WP7103P114-60 Whirlpool Snap Nut
17
SCREW (8ABX1/2“-BLK)
18
BUMPER, DOOR
18
MAY 8003P009-60
19
MAY 7101P012-60
19
SCREW, DOOR HANDLE
20
MAY 7002P117-60
21
SCREW
←
