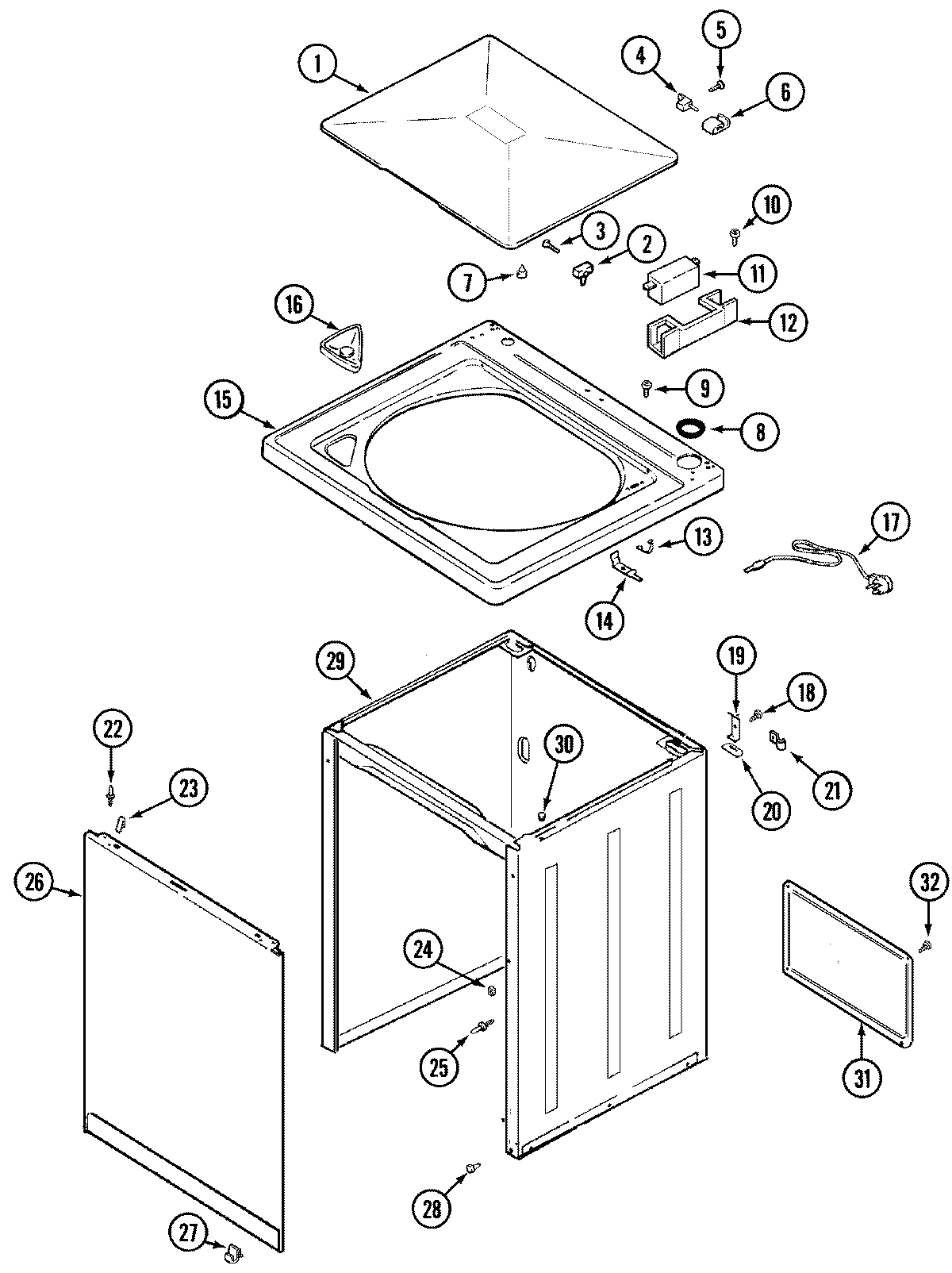

W14JA1 07 – EXTERIOR (REV. K)

Products

Position	Product
1	MAY 35-2103-25
1	MAY 35-2103-24
1	MAY 35-2103
2	WP43-0057 Whirlpool Lid Switch Actuator
2	MAY 25-7436
3	MAY 25-7438
4	MAY 25-7086
4	WP35-2045 Whirlpool Hinge Pin
6	HINGE-LID
7	MAY 35-0581
8	MAY 35-2063
8	MAY 35-2064
9	MAY 25-7463
10	MAY 25-7437
11	MAY 35-2814
12	MAY 35-2795
13	MAY 25-7878
14	MAY 35-2805
15	MAY 35-2739-25
15	MAY 35-2739
15	MAY 35-2739-24
16	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
17	MAY 35-0680
18	WP25-7893 Whirlpool Screw
19	MAY 33-7450
20	MAY 33-0930
21	WP596669 Whirlpool Hose Clamp
23	WP25-7220 Whirlpool Cabinet Clip
24	MAY 25-0224
25	MAY 53-0643
26	MAY 35-2084
26	MAY 35-2084-25
26	MAY 35-2084-24
27	WP53-0120 Whirlpool Clip
29	MAY 35-2106
29	MAY 35-2106-24
29	MAY 35-2106-25
30	MAY 33-2653
31	MAY 35-2108
32	MAY 25-7733
