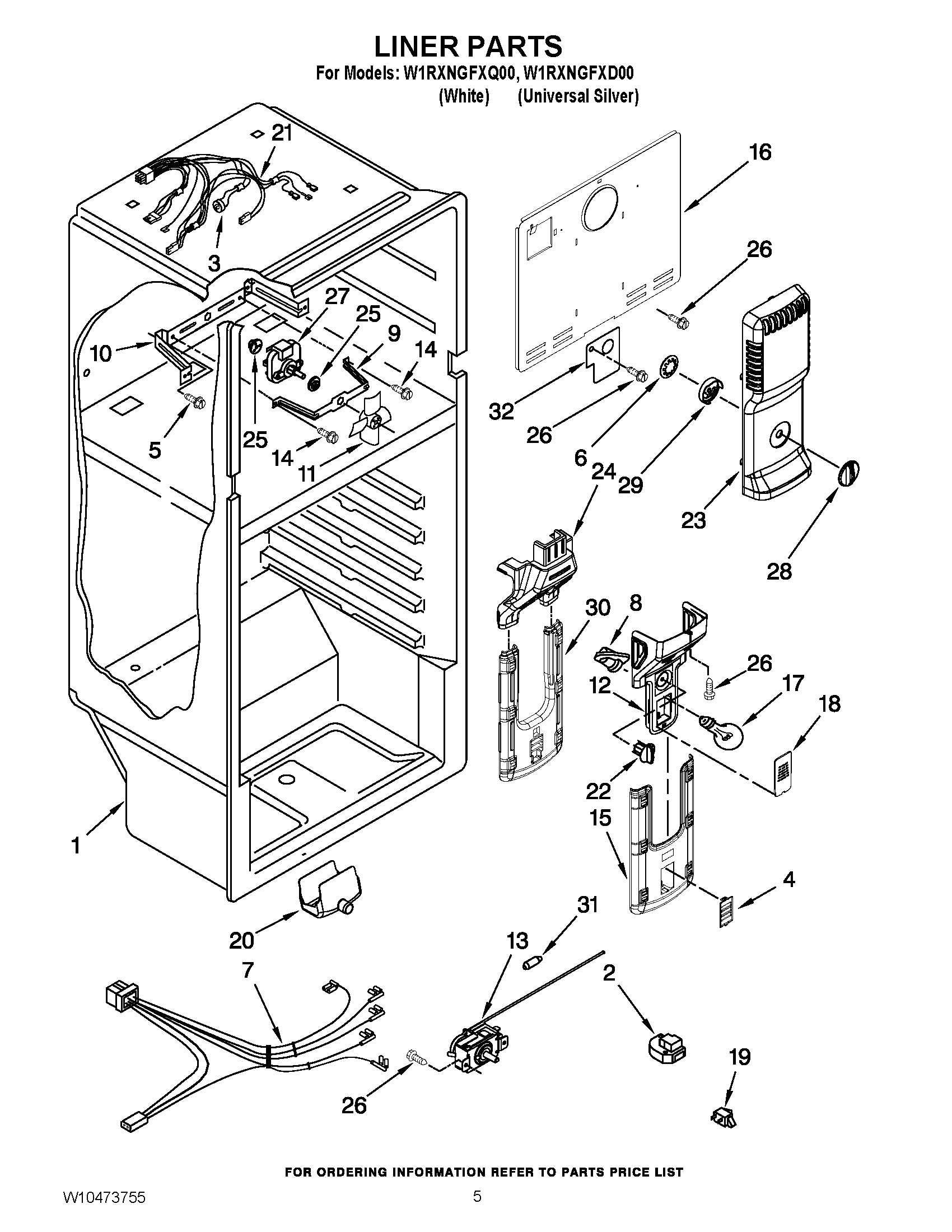

W1RXNGFXD00 03 – LINER PARTS

W1RXNGFXD00 03 – LINER PARTS

Written by

in

W1RXNGFXD00 03 – LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2Defrost Timer
3WPW10225581 Whirlpool Refrigerator Defrost Thermostat
4COVER, FILTER
5WP489442 Whirlpool Refrigerator Screw
62211239 Whirlpool Refrigerator Nut
7WIRE ASSEMBLY, CONTROL BOX
8W10545295 Whirlpool Refrigerator Socket
9WPW10180172 Whirlpool Refrigerator Bracket
10Fan Mounting Bracket
11WP2163777 Whirlpool Refrigerator Fan Blade
12CONTROL BOX
13THERMOSTAT
14WP489399 Whirlpool Refrigerator Screw
15COVER, AIR DIFFUSER EXTENSION
16COVER, EVAPORATOR
17WPW10194651 Whirlpool Refrigerator Light Bulb
18COVER, LIGHT
19W11384469 Whirlpool Door Switch
20Drain Cup
21WIRING, FREEZER (INCLUDES ITEM 3)
22Control Knob
23AIR TOWER
24AIR DIFFUSER, REAR
25WP2264462 Whirlpool Refrigerator Grommet
26WP489478 Whirlpool Refrigerator Screw
27WPW10188389 Whirlpool Evaporator Fan Motor
282211237 Whirlpool Refrigerator Thermal Knob
29Damper, Freezer Control
30BODY, AIR DIFFUSER EXTENSION
31Weight, Thermal
32WP2217784 Whirlpool Refrigerator Cover
