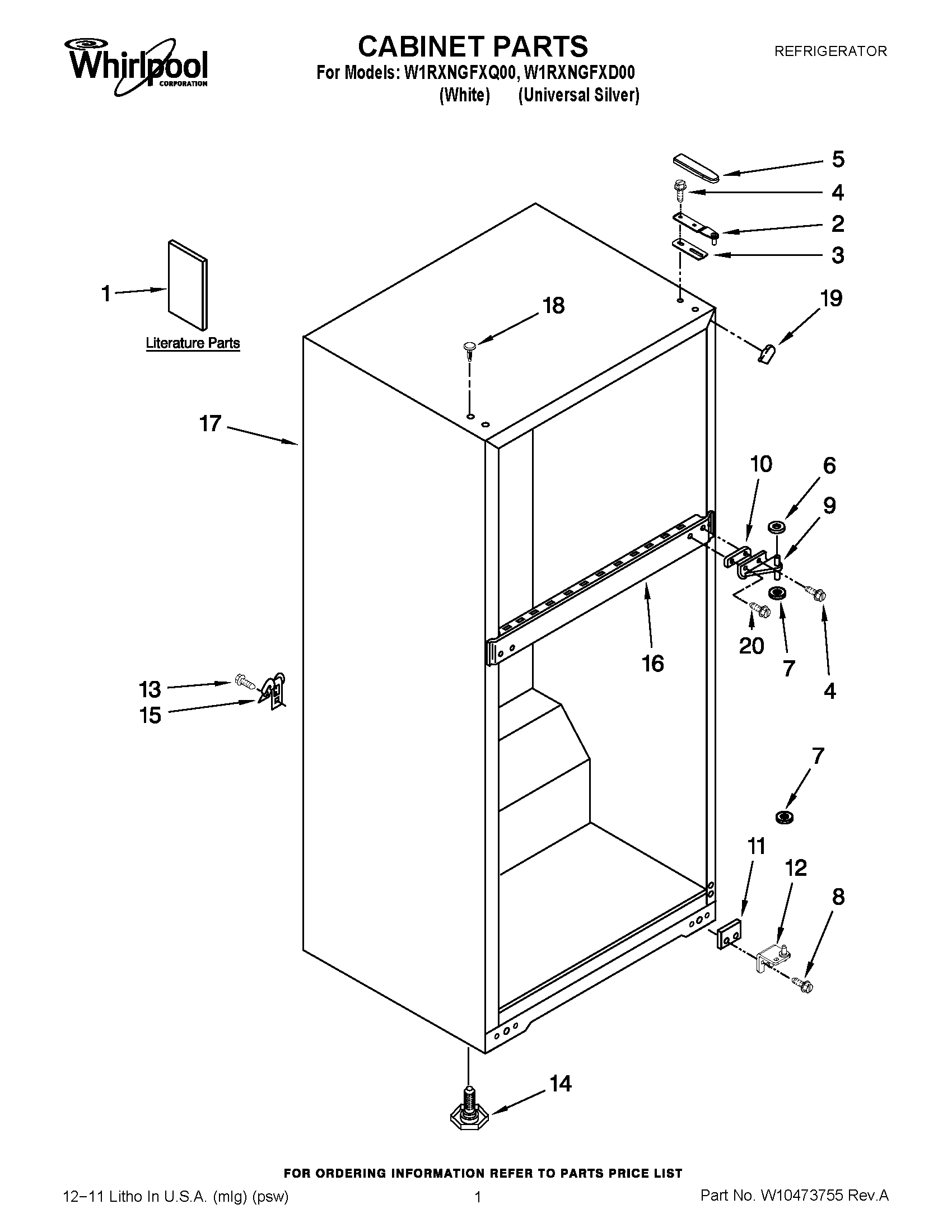

W1RXNGFXQ00 01 – CABINET PARTS

Products

PositionProduct
1ENERGY GUIDE
1USE & CARE GUIDE
1SERVICE & WIRING SHEET
1DO-IT-YOURSELF MANUAL, REF./ FZR.
2W10225158 Whirlpool Refrigerator Door Hinge
3SHIM, HINGE TOP (WHITE)
4WP489497 Whirlpool Screw
5COVER, HINGE (WHITE)
5COVER, HINGE (UNIVERSAL SILVER)
6WP487576 Whirlpool Washer
7WP487802 Whirlpool Refrigerator Washer
83400112 Whirlpool Refrigerator Screw
92211114 Whirlpool Refrigerator Door Hinge
102166043 Whirlpool Refrigerator Shim
112211299 Whirlpool Refrigerator Hinge Shim
12W10215063 Whirlpool Refrigerator Door Hinge
13WP489442 Whirlpool Refrigerator Screw
14W11117769 Whirlpool Refrigerator Leveler
15549193 Whirlpool Refrigerator Power Clamp
17CABINET (NOT A SERVICEABLE PART)
18HOLE PLUG (6) (UNIVERSAL SILVER)
18WP2151652 Whirlpool Refrigerator Button Plug
192191595 Whirlpool Refrigerator Filler
19FILLER, CORNER (UNIVERSAL SILVER)
20SCREW 12-24 X .700
