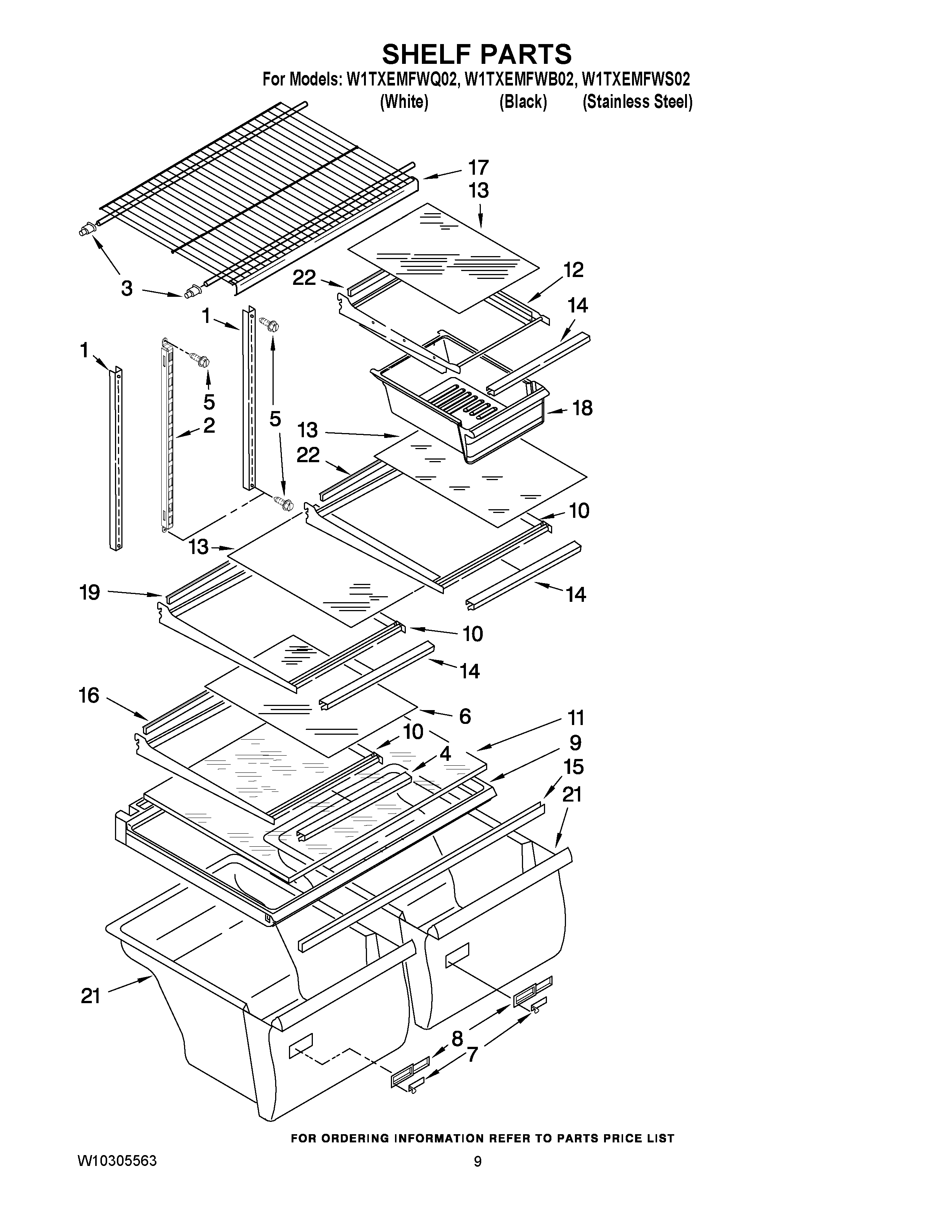

W1TXEMFWB02 05 – SHELF PARTS

Products

Position	Product
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
3	2163762 Whirlpool Refrigerator Cup Assembly
4	TRIM, SHELF FRONT
5	WP489478 Whirlpool Refrigerator Screw
6	Glass, Full Shelf
7	WP2176222 Whirlpool Refrigerator Slide
8	WP2212446 Whirlpool Refrigerator Control Body
9	WP2314549 Whirlpool Refrigerator Cover
10	Shelf, Cantilever
11	WP2176225 Whirlpool Glass Shelf
12	Pan, Shelf Cantilever
13	Glass, Shelf
14	Trim, Shelf Front
15	WP2172748 Whirlpool Drawer Support
16	Shelf, Full Cantilever
17	Shelf, Freezer
18	WP2218132K Whirlpool Crisper Meat Pan
21	W10854037 Whirlpool Refrigerator Crisper Pan
22	WP2188689 Whirlpool Refrigerator Shelf Trim
