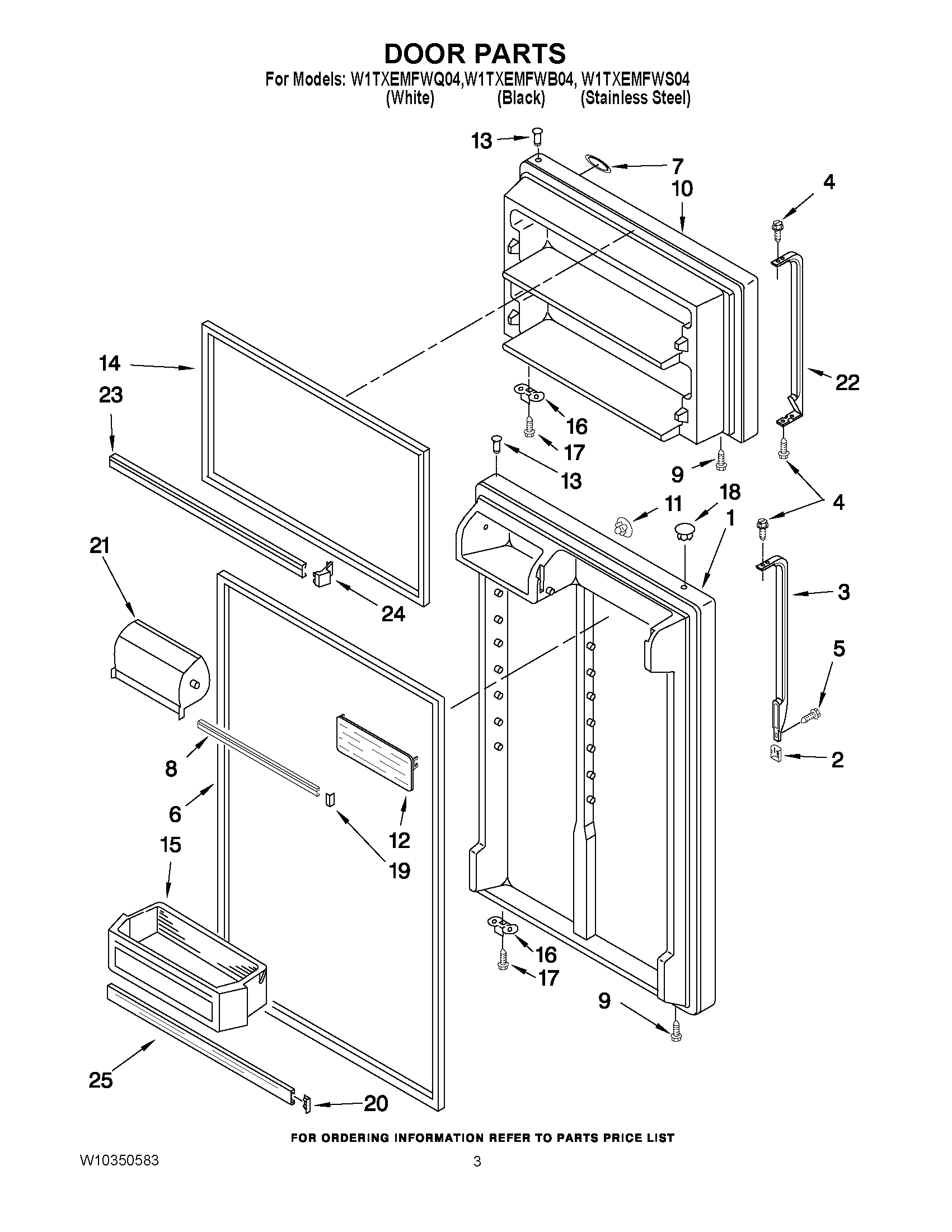

W1TXEMFWB04 02 – DOOR PARTS

Products

Position	Product
1	HANDLE, REFRIGERATOR (STAINLESS STEEL)
2	WP2193353W Whirlpool Refrigerator Trim Handle
2	Cover, Trim (Black)
4	WP489357 Whirlpool Recessed Screw
5	WP8281146 Whirlpool Screw
6	2177311 Whirlpool Refrigerator Magnetic Door Gasket
6	2159061 Whirlpool Refrigerator Door Gasket
7	WP2213265 Whirlpool Refrigerator Nameplate
8	TRIM-DOOR
9	WP8281206 Whirlpool Refrigerator Screw
10	W11023679 Whirlpool Refrigerator Door Assembly
10	W11023687 Whirlpool Refrigerator Door Assembly
10	FREEZER DOOR (INCLUDES ILLUS. 13 & 14) (STAINLESS STEEL)
11	WP2189009 Whirlpool Refrigerator Handle Plug
11	WP2189000 Whirlpool Refrigerator Handle Plug
12	WP2188236 Whirlpool Refrigerator Shelf Door
13	WP2314293 Whirlpool Refrigerator Thimble
14	2177310 Whirlpool Refrigerator Door Gasket
14	WHITE DOOR GASKET-FIP
15	WP2204812 Whirlpool Refrigerator Door Bin
16	W11745278 Whirlpool Bracket
17	WP488921 Whirlpool Refrigerator Screw
18	WP2212651 Whirlpool Refrigerator Button Plug
18	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
19	ENDCAP-TRM
20	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
21	WP2218118 Whirlpool Refrigerator Door Compressor
22	4388950 Whirlpool Refrigerator Handle
22	4388947 Whirlpool Refrigerator Door Handle Kit, Set of 2, White
23	Trim, Door Shelf (2)
24	ENDCAP
25	WPW10421486 Whirlpool Refrigerator Door Trim
