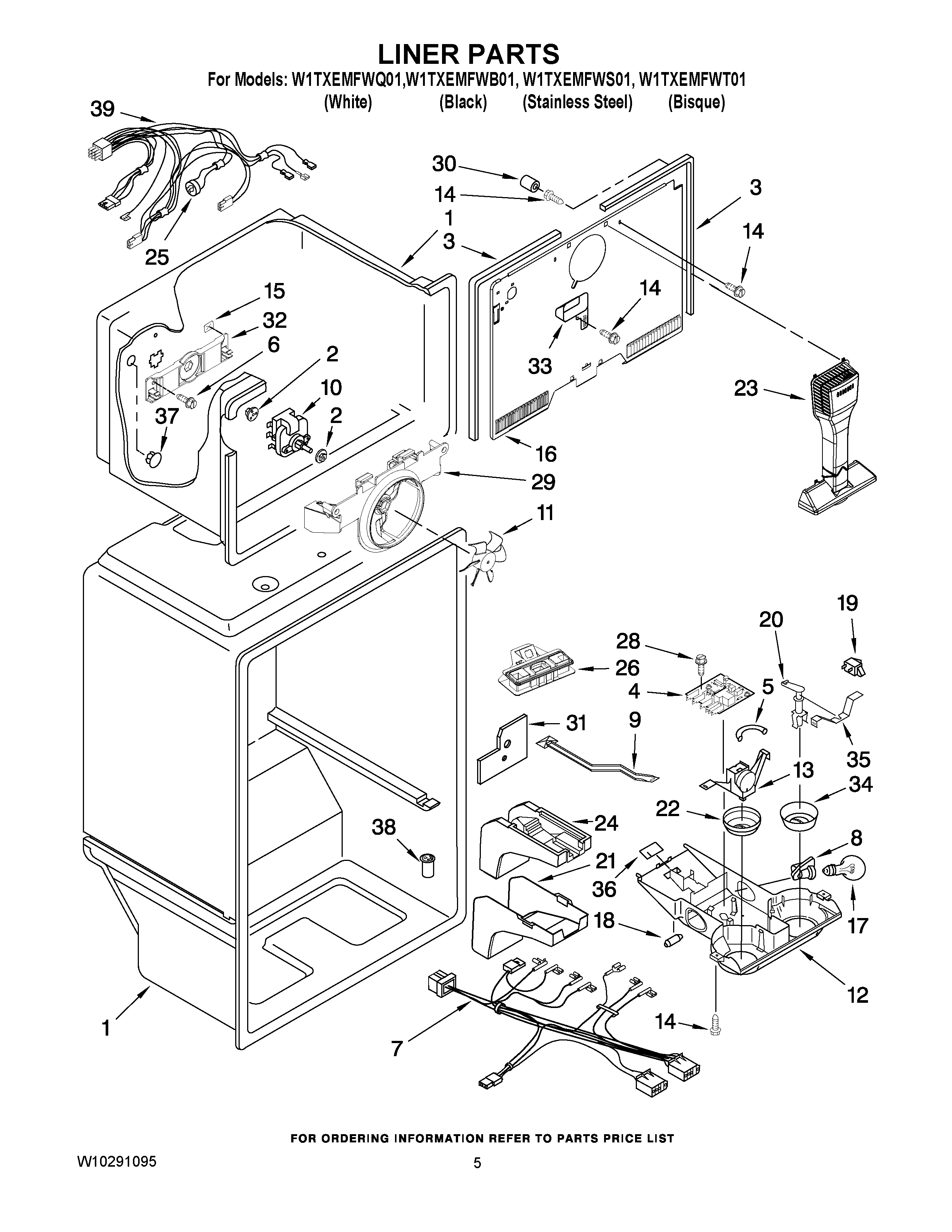

W1TXEMFWS01 03 – LINER PARTS

W1TXEMFWS01 03 – LINER PARTS

Written by

in

W1TXEMFWS01 03 – LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WP2264462 Whirlpool Refrigerator Grommet
3WP2254360 Whirlpool Refrigerator Gasket
4WP2304099-includeCORE Whirlpool WP2304099 Refrigerator Electronic Control
5Thermostat Tube Barrier
6WP488163 Whirlpool Refrigerator Screw
7Wire Assembly, Control Box
84387478 Whirlpool Refrigerator Light Socket
9Damper, Air
10WP2315539 Whirlpool Refrigerator Evaporator Fan Motor
11WP2163777 Whirlpool Refrigerator Fan Blade
12Control Box
13Thermostat Assy. (Includes Items 5, 18 & 36)
14WP489478 Whirlpool Refrigerator Screw
15WP489442 Whirlpool Refrigerator Screw
16Cover, Evaporator
17RANGE ONLY 40W 120V APPL BULB
18Weight, Thermal
19W11384469 Whirlpool Door Switch
20Post, Damper
21Cover, Air Diffuser
22W10829461 Whirlpool Refrigerator Thermal Knob
23WP2254354 Whirlpool Refrigerator Air Tower
24WP2189452 Whirlpool Refrigerator Diffuser
25WP2321800 Whirlpool Refrigerator Bimetallic Defrost
26AIR SEPARATOR ASSEMBLY
28Screw
29BRACKET, FAN MOTOR
30WP487996 Whirlpool Refrigerator Cap Tube
31Shield, heat
322254454 Whirlpool Refrigerator Bracket
33Cover, Hole
34Knob, Damper
35Bracket, Damper Knob
36WP2205079 Whirlpool Refrigerator Seal
37WP941839 Whirlpool Refrigerator Button Plug
38WP2210509 Whirlpool Refrigerator Tub Valve
39Wire Assembly, Freezer Compartment (Includes Illus. 28)
