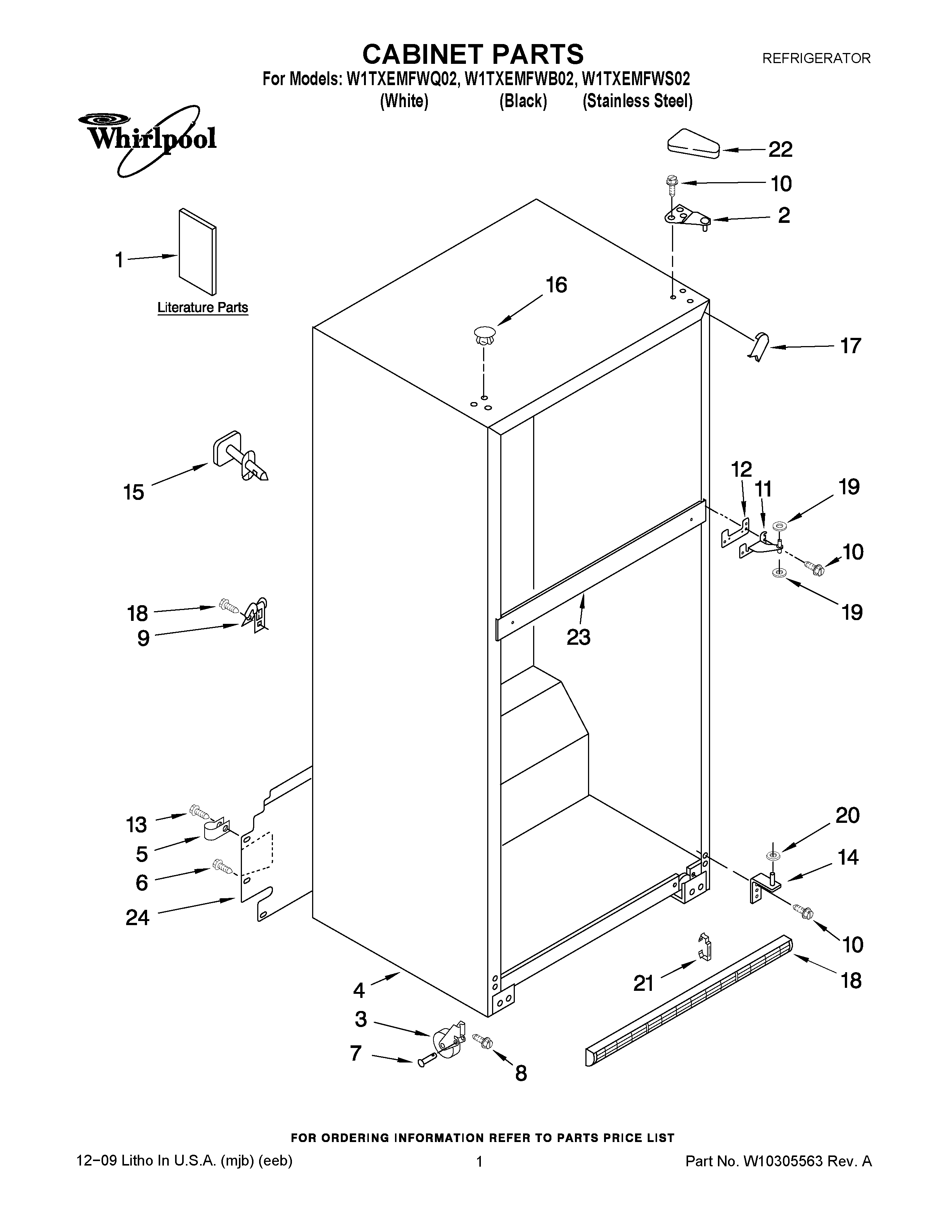

W1TXEMFWS02 01 – CABINET PARTS

Products

Position	Product
1	ENERGY LABEL USE & CARE GUIDE
1	DO-IT-YOURSELF MANUAL, REF./ FZR.
1	Service & Wiring Sheet
1	USE & CARE GUIDE (BILINGUAL)
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WP2166108 Whirlpool Refrigerator Cabinet Roller
5	WP488366 Whirlpool Refrigerator Clamp
6	WP489427 Whirlpool Refrigerator Screw
7	W11594405 Whirlpool Axle
8	WP3400504 Whirlpool Refrigerator Screw
9	549193 Whirlpool Refrigerator Power Clamp
10	WP489497 Whirlpool Screw
11	WP2254618 Whirlpool Center Door Hinge
12	WP2183852 Whirlpool Refrigerator Shim
13	WP489464 Whirlpool Refrigerator Screw
14	WP2254473 Whirlpool Refrigerator Door Hinge
16	WP2183998 Whirlpool Refrigerator Button Plug
16	WP2151652 Whirlpool Refrigerator Button Plug
17	W11252732 Whirlpool Refrigerator Filler
17	WPW10283959 Whirlpool Refrigerator Filler
18	Grille (White)
18	GRILLE (INCLUDES ILLUS. 19) (BLACK)
19	WP489467 Whirlpool Hinge Shim
20	WP487576 Whirlpool Washer
21	CLIP, GRILLE
22	WP2213360 Whirlpool Refrigerator Cover
22	WP2213363 Whirlpool Refrigerator Cover
23	CABINET (NOT A SERVICEABLE PART)
24	Cover, Unit
