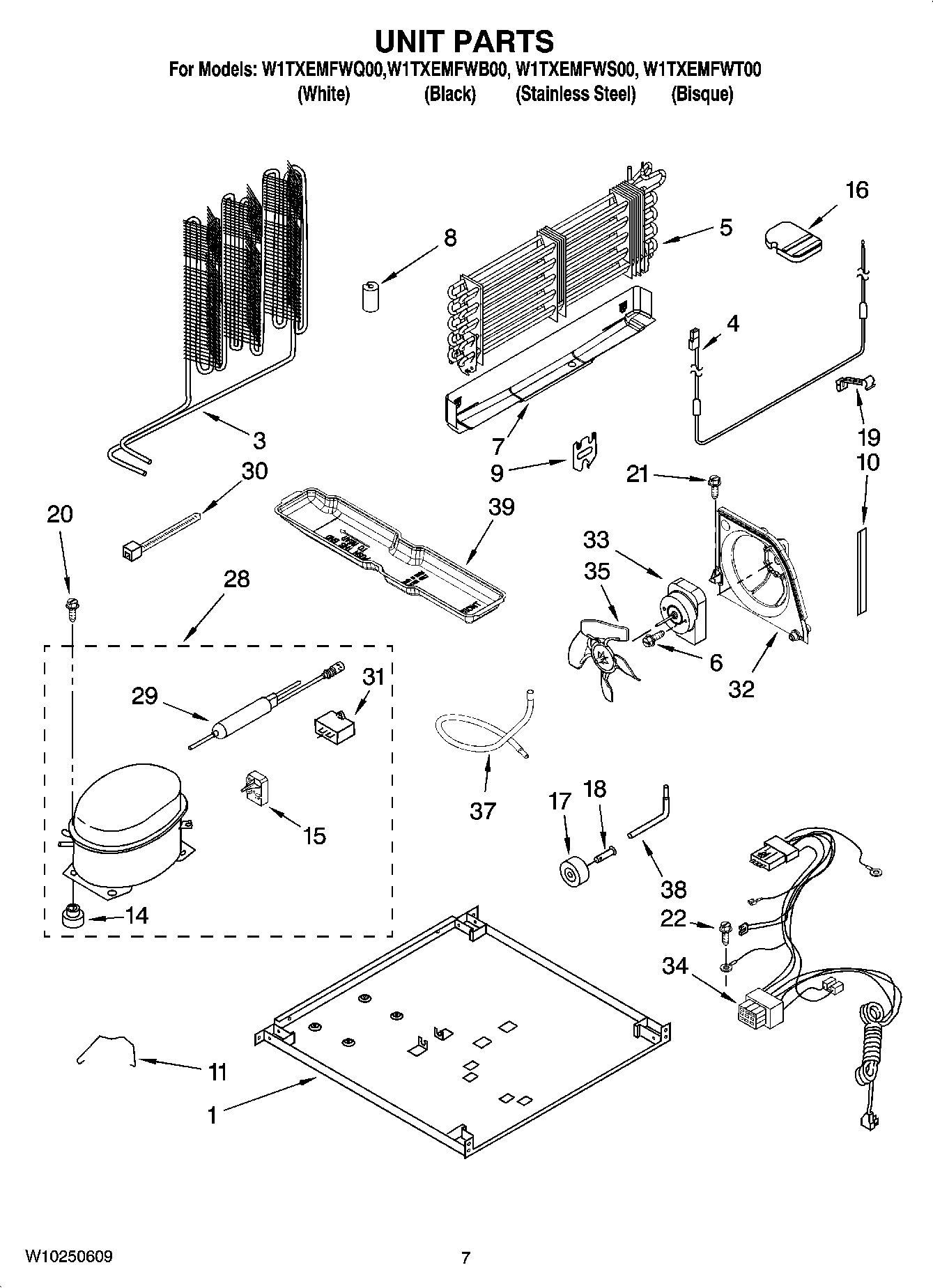

W1TXEMFWT00 04 – UNIT PARTS

Products

PositionProduct
REFRIGERANT CHARGE 4.00 Ozs. (R134A)
VALVE, ACCESS (1/2“)
WP978025 Whirlpool Refrigerator Valve
978030 Whirlpool Refrigerator Valve
978027 Whirlpool Refrigerator Primary Valve
978026 Whirlpool Refrigerator Primary Valve
876764 Whirlpool Refrigerator Primary Valve
Following Parts Not Illustrated and Optional Parts Not Included
VALVE, ACCESS (5/8“)
1Plate, Unit Mounting
3Condenser
4WPW10140847 Whirlpool Refrigerator Heater
5EVAPORATOR ASSY.
6W11501418 Whirlpool Refrigerator Screw
7Drain Pan
8W10852725 Whirlpool Refrigerator Grommet
9Bracket, Heater
10Extension, Air Baffle
11W11661170 Whirlpool Clip
14876811 Whirlpool Grommet
14WP4387558 Whirlpool Refrigerator Compressor Grommet
15WPW10194431 Whirlpool Start Device
16Support Block
17WPW10475495 Whirlpool Roller Assembly
18W11594405 Whirlpool Axle
19Clip, Heater
213400518 Whirlpool Oven Foot Mount Screw
22WP489128 Whirlpool Refrigerator Screw
28W10233960 Whirlpool Refrigerator Compressor
29WPW10143759 Whirlpool Dryer Filter
30WPW10339879 Whirlpool Wire Tie
31WPW10662129 Whirlpool Refrigerator Run Capacitor
32WP2315541 Whirlpool Refrigerator Air Baffle
33WP2188874 Whirlpool Refrigerator Condenser Motor
342187382 Whirlpool Refrigerator Wire Harness
35W11458267 Whirlpool Refrigerator Fan Blade
37Tube, Suction
38W10274306 Whirlpool Refrigerator Tube
39WP2254574 Whirlpool Refrigerator Evaporator Tray
